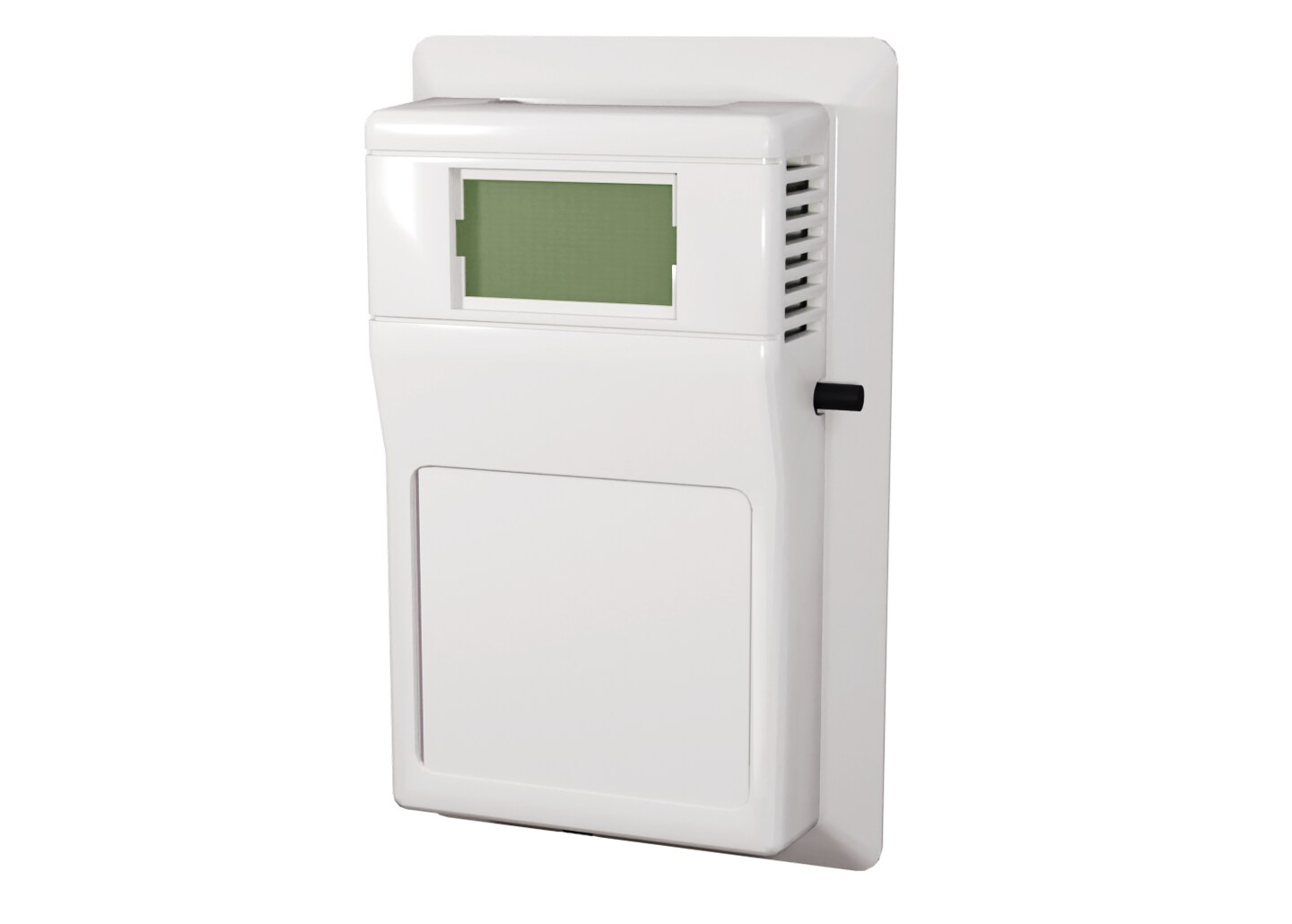

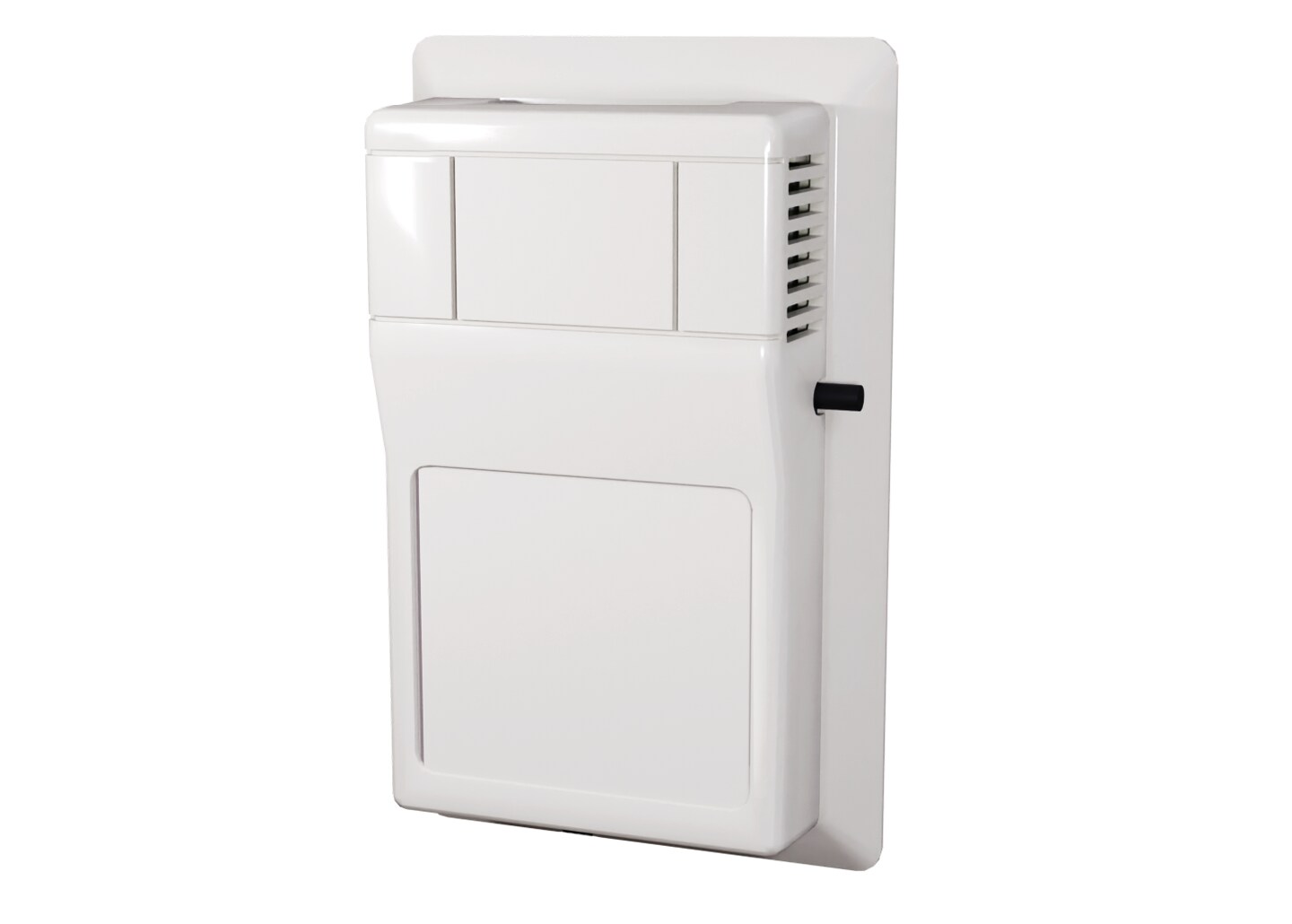

Platinum RTD Room
Click and hold to zoom

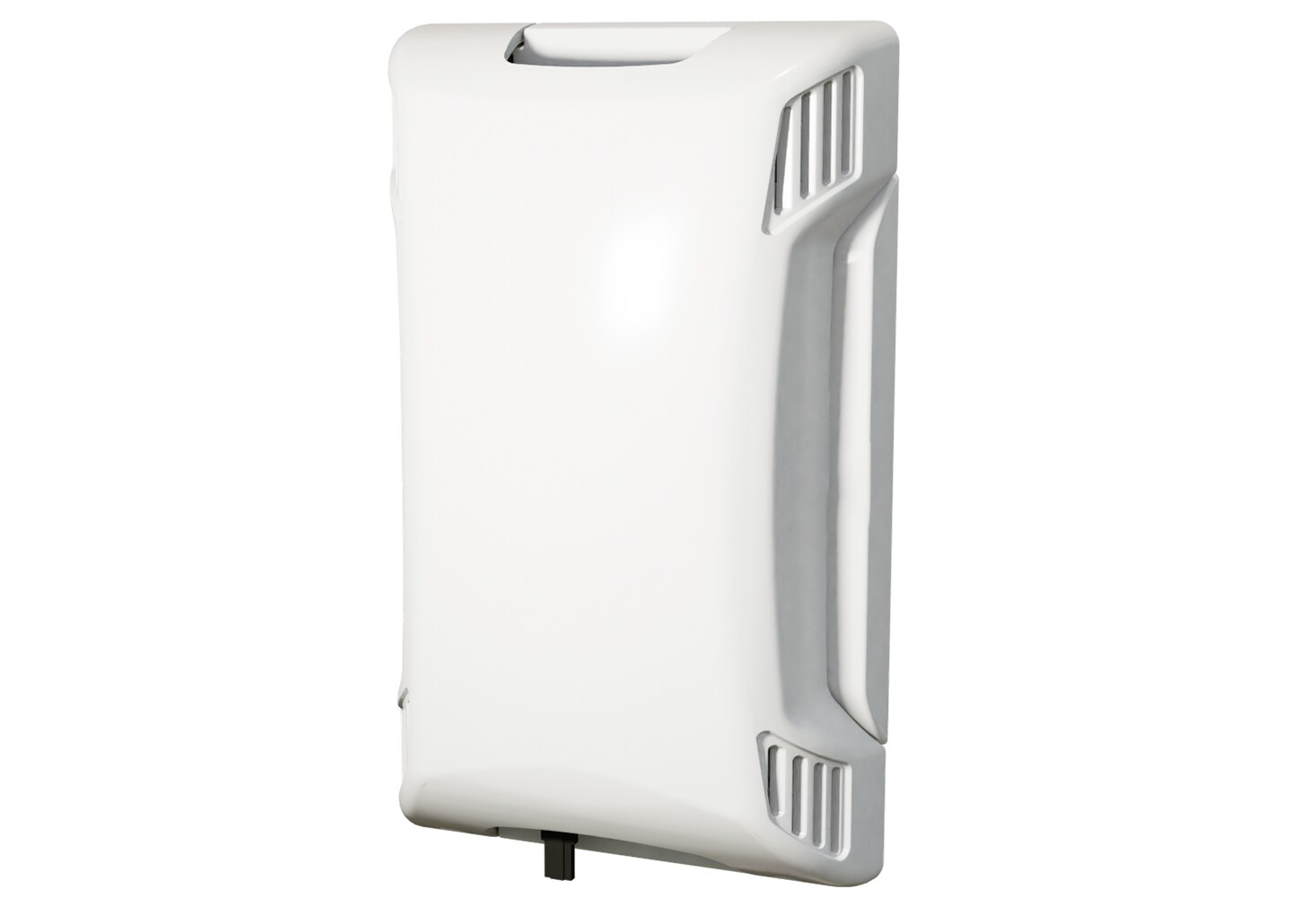

Platinum RTD Room
Click and hold to zoom

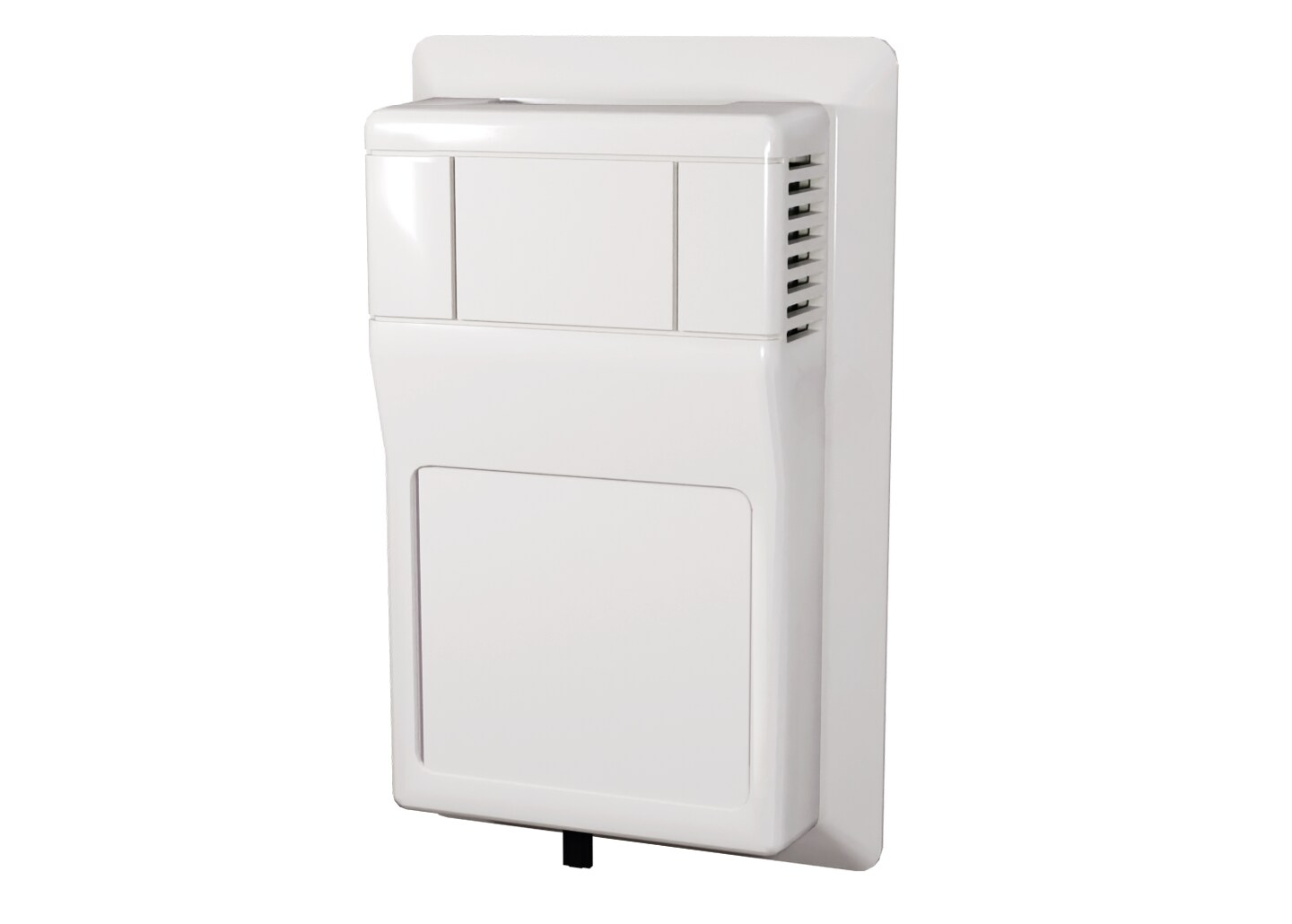

Platinum RTD Room
Click and hold to zoom

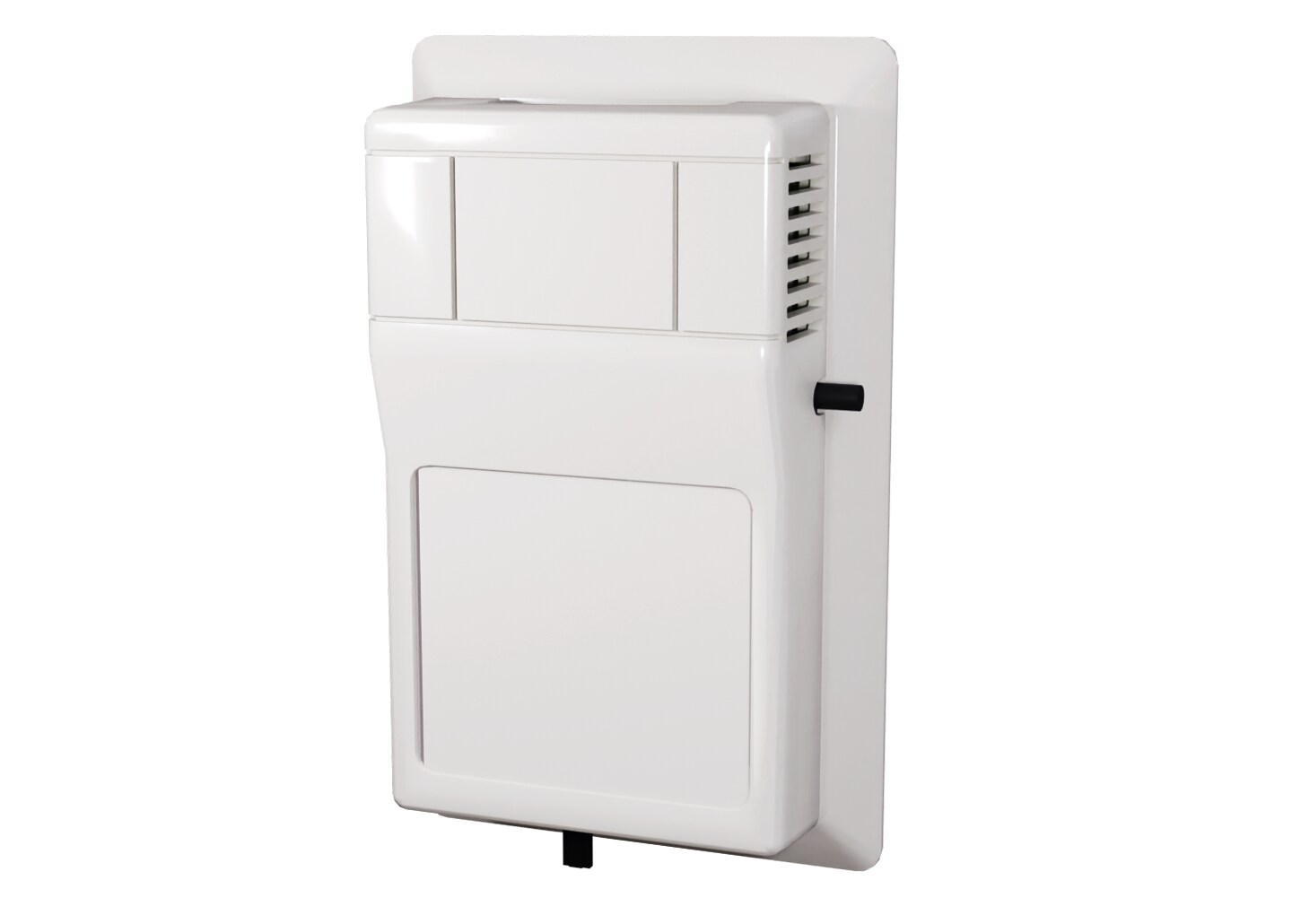

Platinum RTD Room
Click and hold to zoom

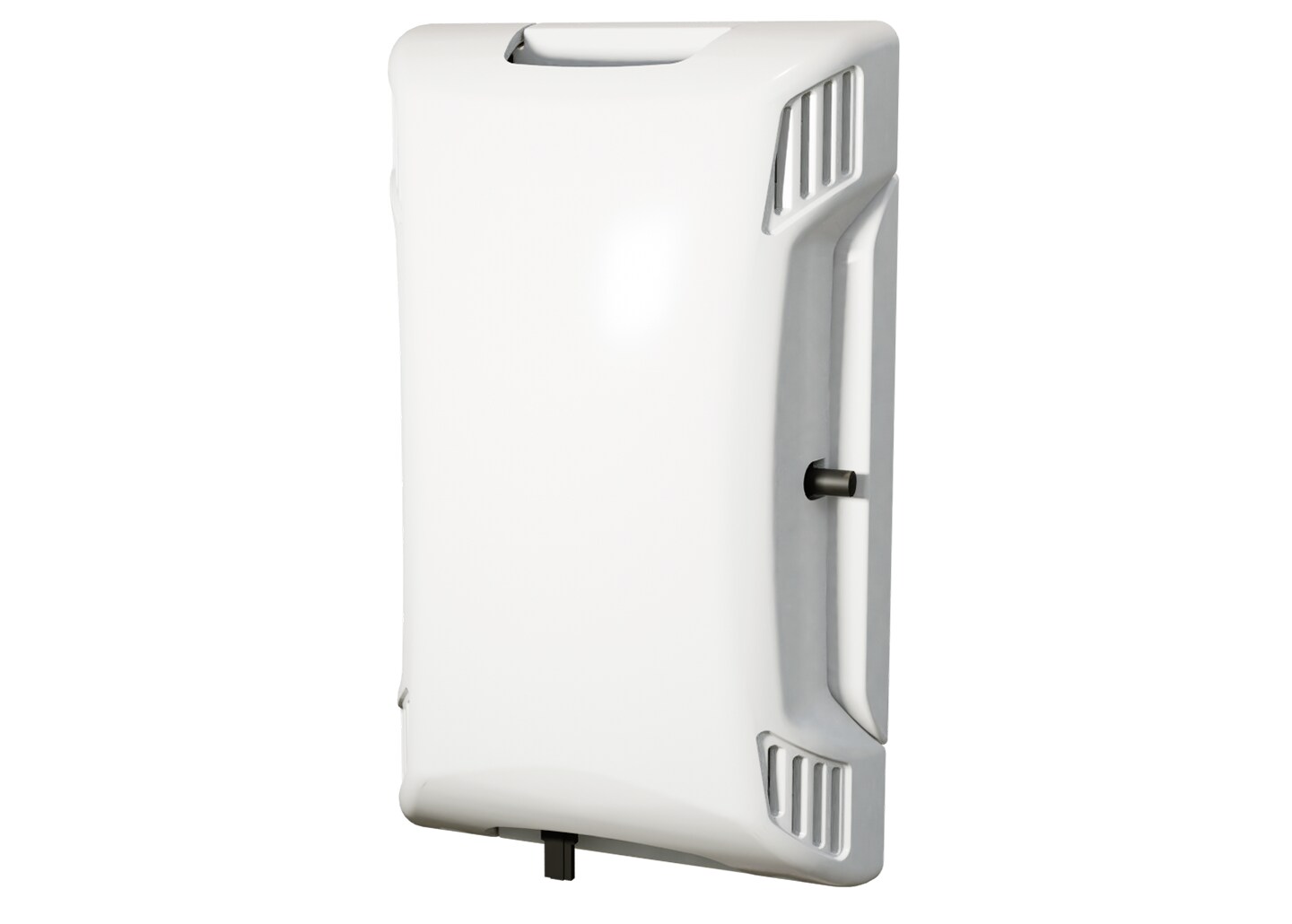

Platinum RTD Room
Click and hold to zoom

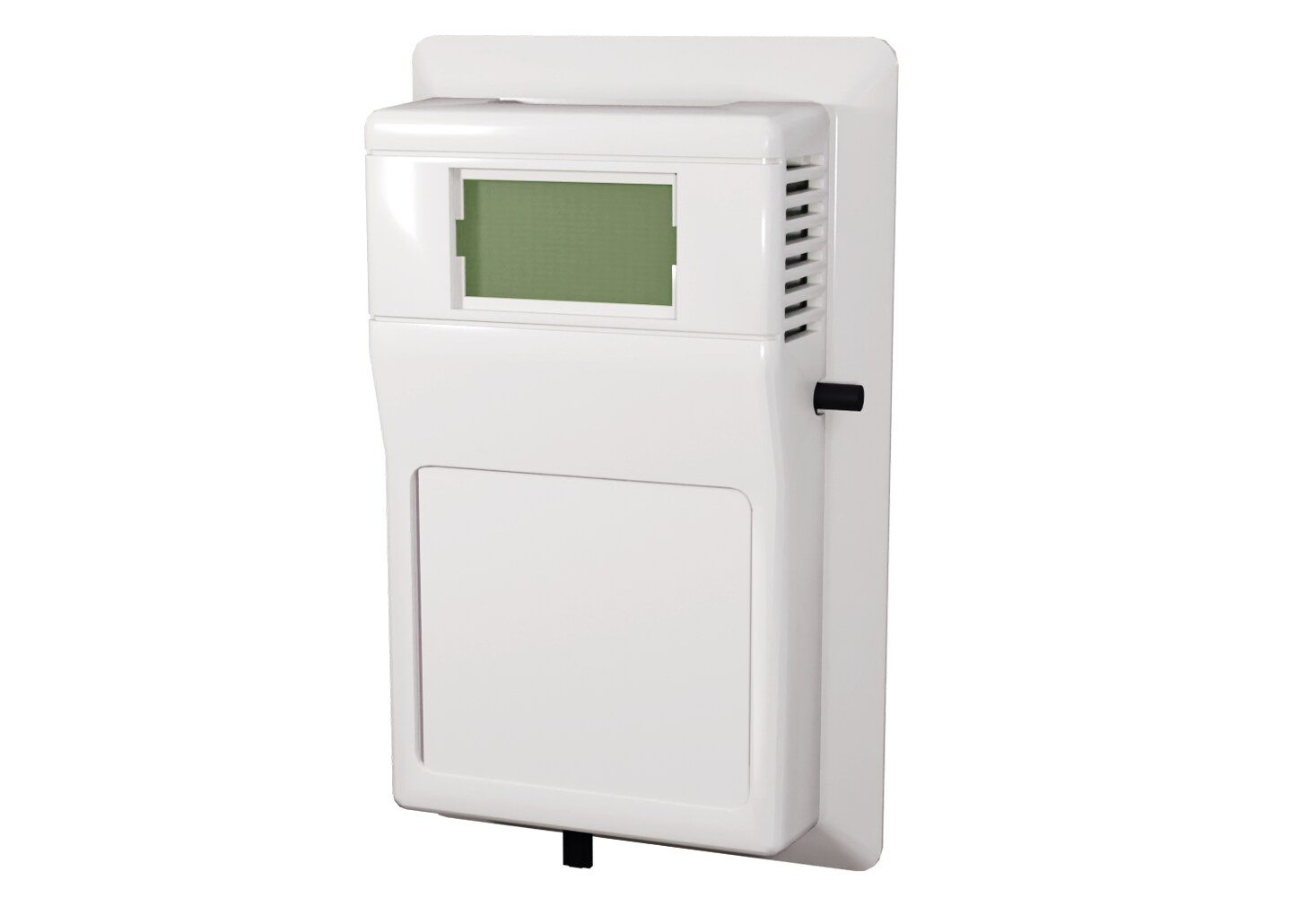

Platinum RTD Room
Click and hold to zoom

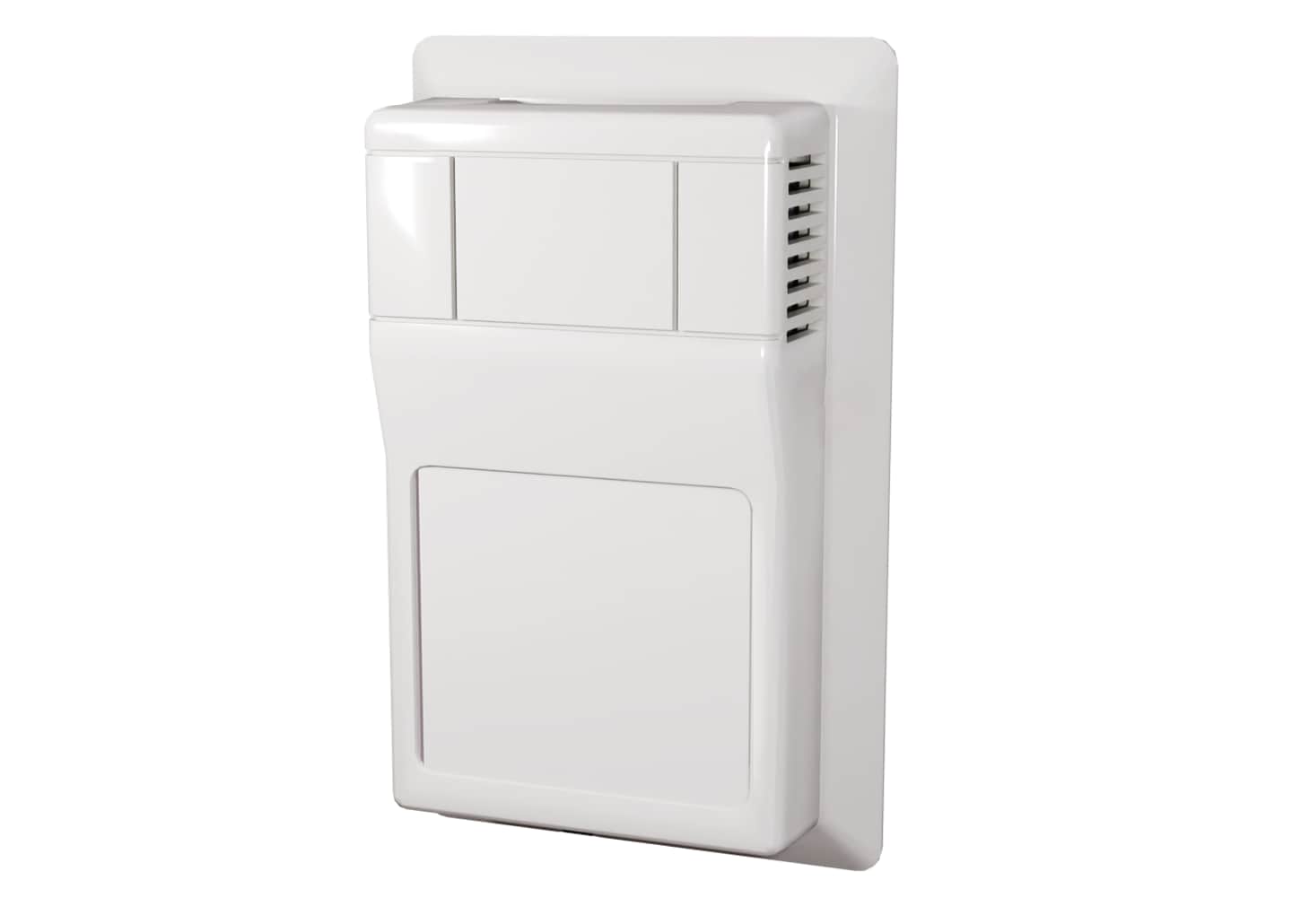

Platinum RTD Room
Click and hold to zoom

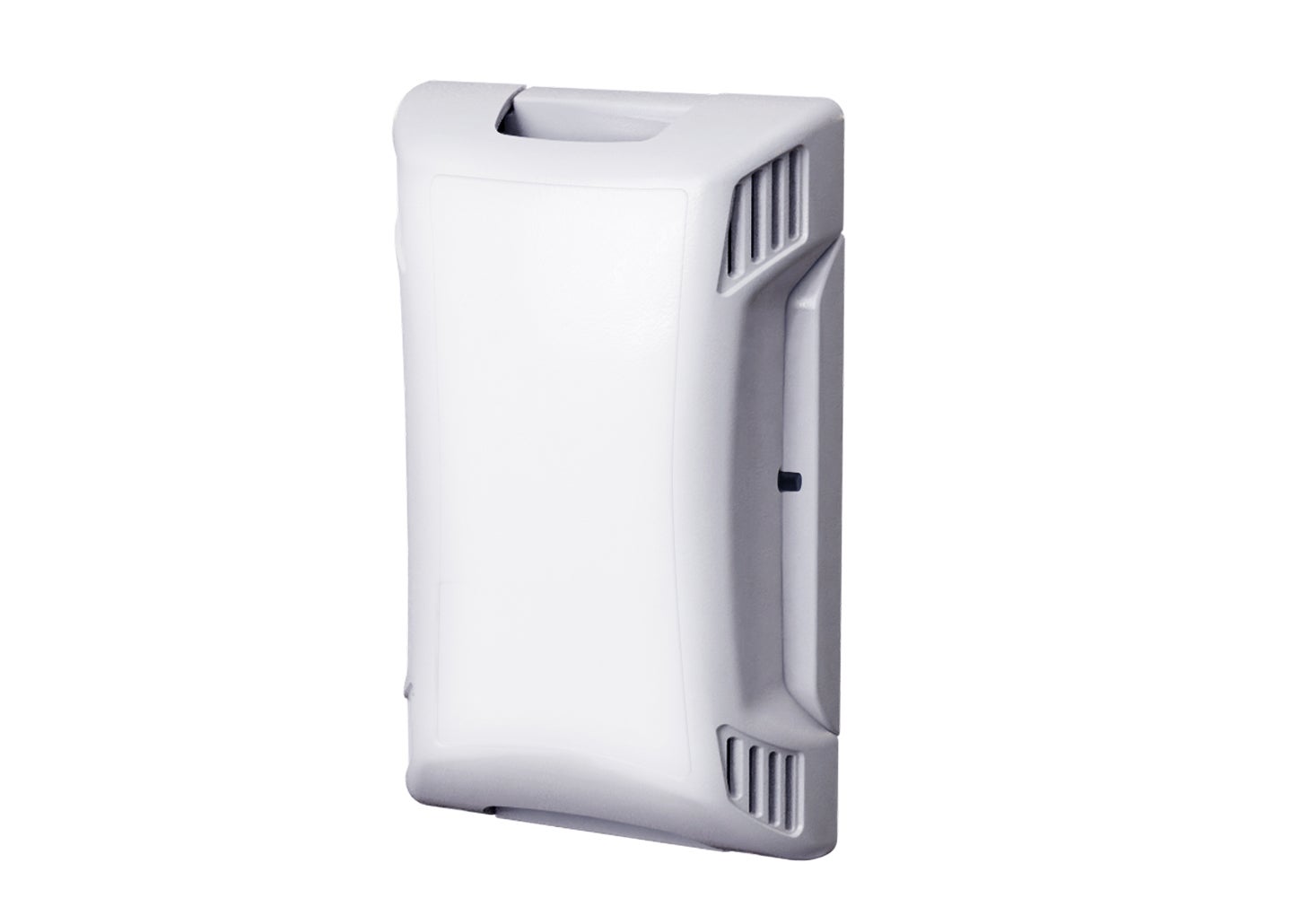

Platinum RTD Room
Click and hold to zoom
Platinum RTD Room
Click and hold to zoom
Platinum RTD Room
Click and hold to zoom

RTD-Room

Platinum RTD Room

  • Space Temperature Sensing
  • Decorative Wall Sensor Applications
  • Office Buildings
  • Schools
  • Colleges
  • Commercial Buildings
  • OEM Opportunities
RTD-Room
From €  58,48
Shop Models
4 Variations available
See all series options below
RTD-RoomData Sheet

Data Sheet
Platinum RTD Room RTD-Room RTD-Room
Product Overview
  • Accuracy +/- 0.06% Class A
  • Accuracy Detail (Tolerance Formula: +/- ºC = (0.15ºC + (0.002 *
  • Applications Building and Maintenance, Commercial and Industrial, OEM, Office and Commercial
  • Approvals DIN EN 60751 (IEC 751)
  • Curve Type PTC (Positive Temperature Coefficient)
  • Display Note LCD Display Supply Voltage: 9 V DC to 35 V DC / 24 V AC (50 Hz to 60 Hz); LCD Display Supply Current/VA: < 4 mA / 0.12 V A; LCD Display Accuracy: ±2 °F or ±2 °C at 21.5 °C (71 °F) typical; LCD Display Descriptor: °F (Fahrenheit) or °C (Celsius); LCD Display Life Expectancy: 50,000 hours minimum
  • Display Type LCD
  • Electrical Connection Terminal block
  • Enclosure Ratings UL94-HB
  • Number of Sensing Points 1
  • Operating Current 5 mA
  • Operating Temperature, Max 50 °C
  • Operating Temperature, Min 1.5 °C
  • Options Short Thermistor (Default); Field (Jumper) Selectable “Dry Contact” Closure (Separate Input); Short Set Point available upon request
  • Response Time 8 Seconds nominal
  • Self Heating Effect 7 mW / °C
  • Set Point Tolerance ±10 % of range
  • Stability : ± 0.03 % after 1000 Hours at 300 °C (572 °F)
  • Storage Temperature, Max 65 °C
  • Storage Temperature, Min -40 °C
  • Temperature Coefficient 3850 ppm / °C
  • Temperature Measurement Range 1.5 to 50°C
  • Tightening Torque 0.5 Nm minimum; 0.6 Nm maximum
  • Weight Note A/1K-2W/3W-R/RS/RO Series: 63.5 g (0.14 lb) A/1K-2W/3W-RSO Series: 81.6 g (0.18 lb) A/1K-2W/3W-R2/R2S/R2O Series: 72.6 g (0.16 lb) A/1K-2W/3W-R2SO Series: 90.7 g (0.20 lb) A/1K-2W/3W-RSO-RJ6-LCD Series: 81.6 g (0.18 lb) AII LCD Display Units: 81.6 g (0.18 lb)
  • Wire Size, Max 26 AWG
