RH-Combo-Room-Thermistor

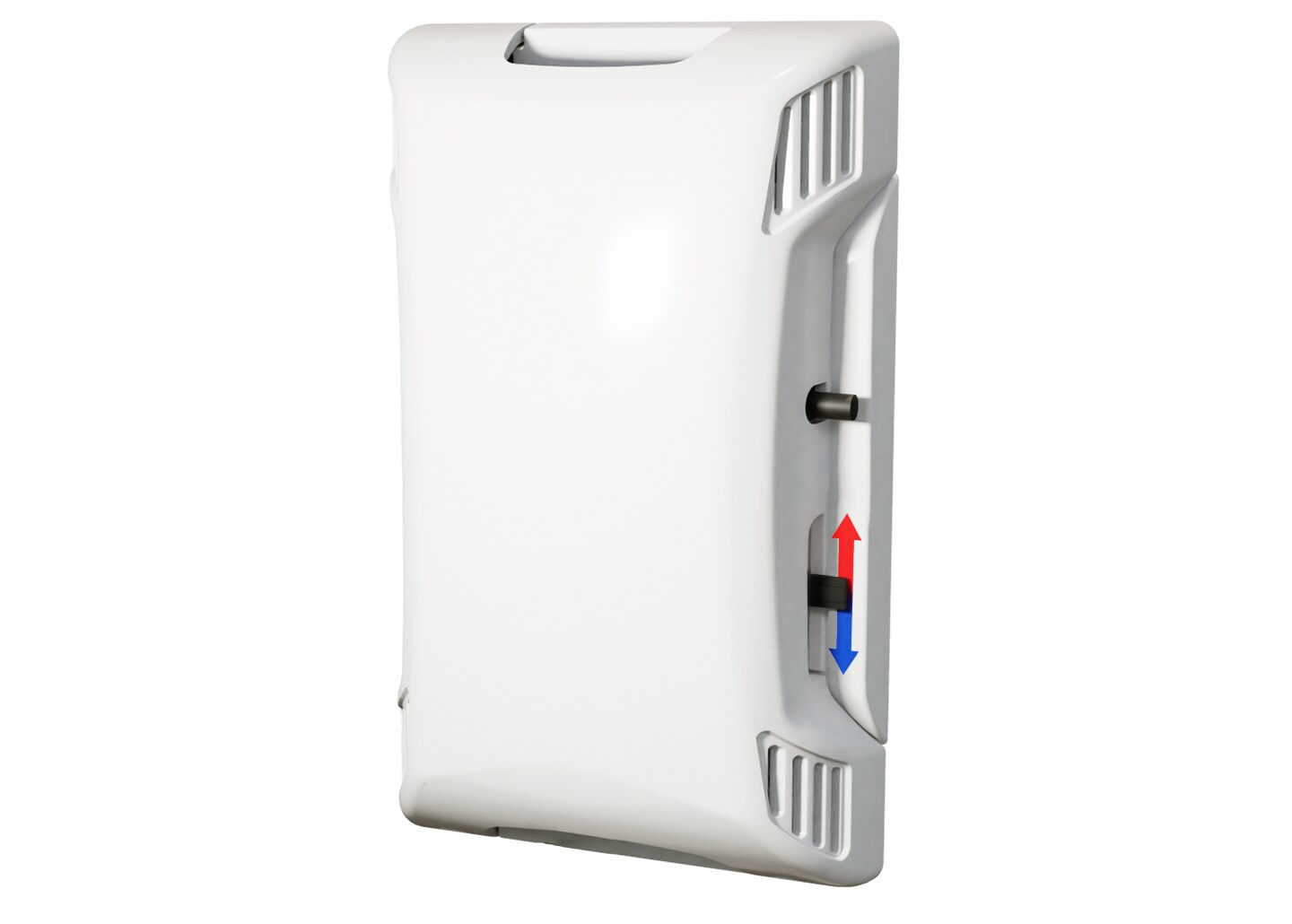

Relative Humidity Room with Thermistor Sensor

(0)

Models In Stock

Humidification
Dehumidification
Monitoring Indoor Space Humidity
Clean Rooms
Hospitals
Process Control
Laboratories
Museums
Schools
Office Buildings
Data Centers
ESD (Anti-Static) Control

See Product Overview

RH-Combo-Room-Thermistor

From ^$ 387.00

Models In Stock

Shop Models

More Variations Available

See all series options below

Data Sheet

Product Overview

Applications Air and HVAC, Art and Museums, Building and Maintenance, Electronic Equipment, Environmental Monitoring, Medical, Process Automation and Control
Electrical Connection Screw Terminal
Enclosure Material ABS Plastic
Filter Hydrophobic Filter

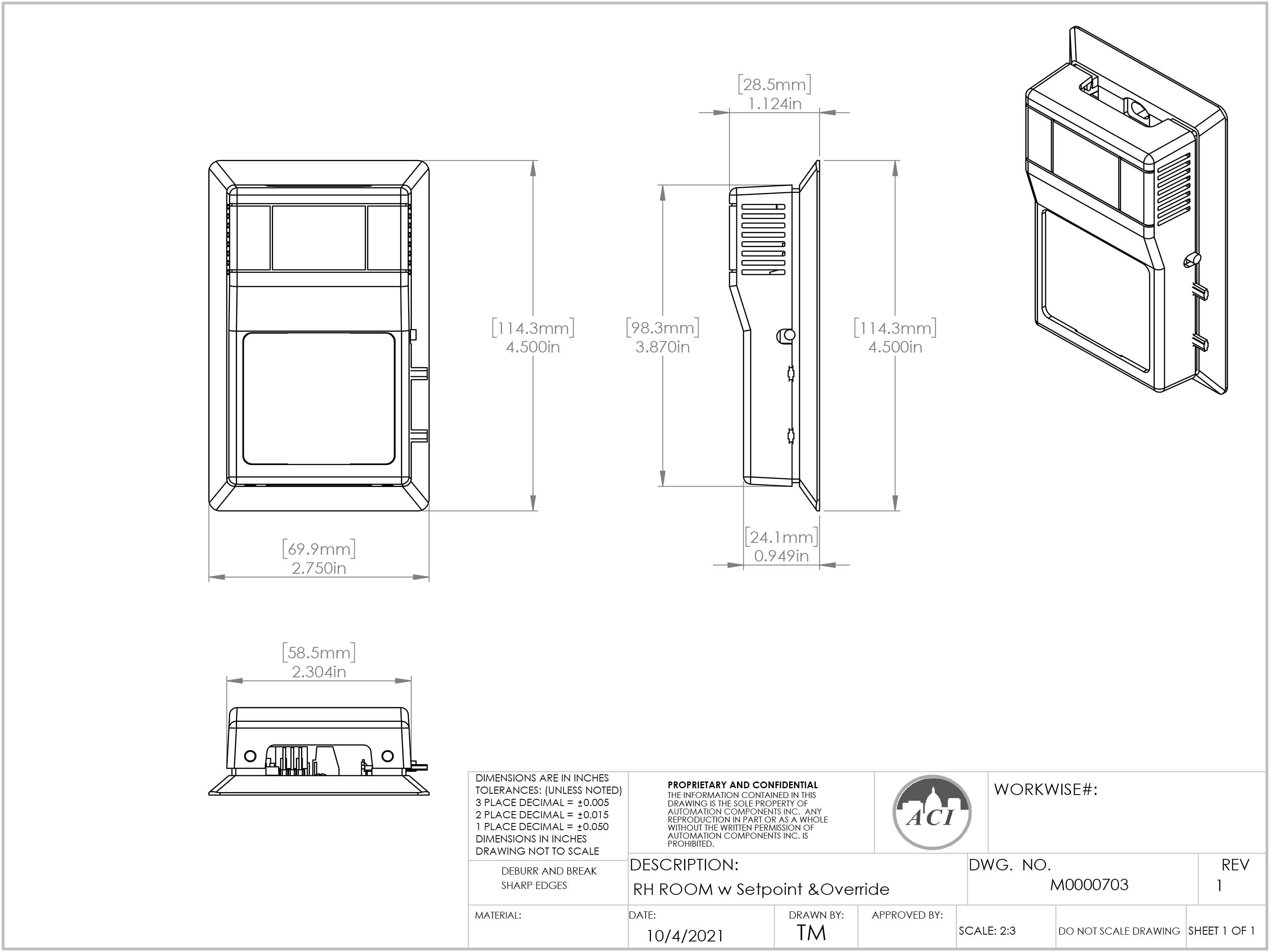

Height 4.5 in
Length 2.75 in
Current, Max 8 mA
Measurement Type Humidity
Operating Temperature, Max 60 °C
Operating Temperature, Min 1.5 °C
Output Detail 0-5 VDC: 12 - 40 VDC / 18 - 28 VAC
Relative Humidity 0 to 95%
Relative Humidity Accuracy ± 2% RH
Relative Humidity Sensor Type Capacitive with Hydrophobic Filter
Repeatability 0.5% RH,± 0.05°C
Response Time 20 Seconds Typical
Sensitivity 0.1% RH
Series ID RH-Combo-Room-Thermistor
Stability RH Stability: Less than 2% drift / 5 years,Platinum RTD Stability: +/-0.03% after 1000 Hours @ 572°F (300°C)
Storage Temperature, Max 65 °C
Storage Temperature, Min -40 °C
Supply Power Type DC
Supply Voltage 24 Vdc
Tightening Torque 4.43 to 5.31 lb-in (0.5 to 0.6 Nm)
Weight 19.17 lb
Width 1.12 in
Wire Gauge 26 to 16 AWG

Supported Applications

This series supports humidification, dehumidification, indoor space humidity monitoring, process control, laboratories, museums, schools, office buildings, and data centers.

Operating Conditions & Performance

A thermoset polymer capacitive sensing element and hydrophobic filter improve moisture resistance. The multilayer construction resists dust, dirt, oils, and common environmental chemicals.

Configuration Options

On-board DIP switches allow output signal selection, and the sensors can be powered from AC or DC sources. Temperature sensor configurations are available.
