CNI8-AL

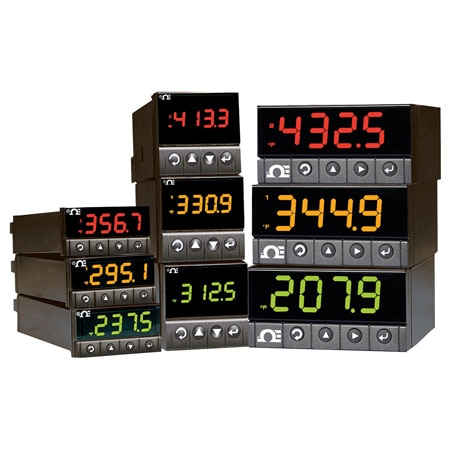

i-Series Temperature & Process Limit Controllers
Volume discounts available
Volume Discount Schedule
| Quantity | Price each |
|---|---|
| 1-9 | C$717.71 |
| 10-24 | C$681.82 |
| 25-49 | C$645.94 |
| 50-99 | C$610.05 |
| 100-499 | C$574.17 |
| 500+ | C$538.28 |
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| Accuracy | ± 0.5 °C |
| Accuracy Detail | ±0.5°C temperature; 0.03% rdg |
| Additional Features 1 | Simplified Alarm Menus, Manual Reset |
| Control Output | 2 SPDT Relays - Form C Relay |
| DIN Rail Size | 0.0625 mm |
| Display Size | 21 mm (.82 in) |
| Display Type | 4 Digit LED |
| Display Type Note | Single 4-digit 9-segment LED 21 mm (0.83") |
| Enclosure Ratings | NEMA Type 1 |
| Form factor | 1/8 DIN |
| Height | 48 mm |
| Impedance Input | 10 MΩ for 100 mV, 1 MΩ for 1 or 10 Vdc |
| Input Configuration | Front panel configurable |
| Input Current | 0 to 20 mA |
| Input Type | Thermocouple, RTD, mA, Voltage |
| Lead Resistance, Max | 100 Ω |
| Length | 127 mm |
| Number of Inputs | 1 |
| Number of Outputs | 2 |
| Operating Temperature, Max | 55 °C |
| Operating Temperature, Min | 0 °C |
| Output Detail | SPDT, 250 Vac or 30 Vdc @ 3 A (resistive load) Voltage Excitation: 24 Vdc @ 25 mA (not available with low power option) |
| Reading Rate | 3/sec |
| Relative Humidity | 0.9 |
| Supply Power Note | Voltage Input: 0 to 100 mV, 0 to 1V, 0 to 10 Vdc Power: 90 to 240 Vac ±10%, 50 to 400 Hz, 110 to 300 Vdc, equivalent voltage Low Voltage Power Option: 24 Vac, 12 to 36 Vdc; external power source must meet safety agency approvals |
| Supply Power Type | AC |
| Supply Voltage | 90 to 240 Vac |
| Temperature Sensor Type | Thermocouple |
| Temperature Stability | RTD: 0.04°C/°C,Thermocouple @ 25°C (77°F): 0.05°C/°C, cold junction compensation,Process: 50 ppm/°C |
| Width | 48 mm |
| See All Specs | |
PDFs & Manuals
Show Ratings & Reviews
Rated 4 out of
5
by
Hannah from
Good limit controller, decent reliability, ok QC
Using the CNi16-AL for a limit controller isn't difficult. The calibration on them has been hit or miss and the manual says to press: enter, up, enter. When it is: enter, menu, enter to calibrate. Recently I had one that was reading off by 20% no matter how it was calibrated or even with an offset it may have been defective.
Date published: 2024-02-12
Rated 1 out of
5
by
Bobf from
What does this mean? Review title, title of what?
Controller asked for what type rtd, 392 or 385.
Could find nothing in literature of the pr-14h-3-100-1/4-2 I purchased.
Date published: 2025-05-01
Rated 5 out of
5
by
kmwomm from
omega 120/ 24 v process controllers
reliable meter that provides accurate readings. we've used for 20+ years and are extremely happy
Date published: 2024-10-23
Rated 5 out of
5
by
ronboom from
Reliable and simple wiring
Fairly simple to configure and easy wiring. Needed a dual alarm to replace a failed unit on a weather-ometer chamber. One alarm for turning on cooling water and the other for overtemperature shutdown. Works great with 3-wire RTD. I didn't get into changing display colors as the unit is behind a hinged panel.
Date published: 2021-04-05
