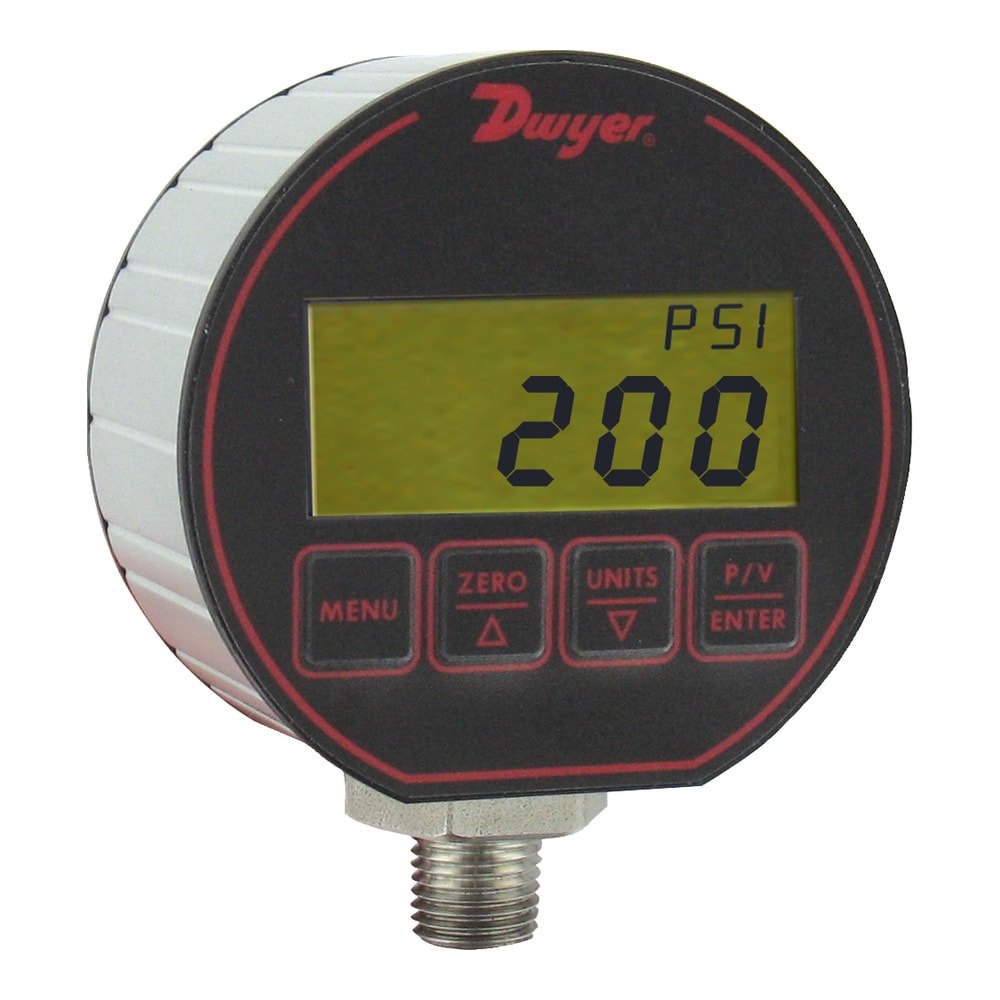

Series-DPG-200

Digital Pressure Gauge, ± 0.25% Accuracy, NEMA 4X, 4-Digit Display, 2 Alarms

(0)

Models In Stock

High accuracy provides exceptional measurement minimizing costly out of specification conditions
Backlit 4-digit display provides clear parallax-free reading reducing potential for errors
Durable aluminum case to meet NEMA 4X (IP66) requirements supports use in harsh or outdoor environments
Push-button zero reduce installation and service time

See Product Overview

Series-DPG-200

From ^C$ 799.46

Models In Stock

Shop Models

12 Variations available

See all series options below

Data Sheet

Product Overview

Accuracy ± 0.25 %
Accuracy Detail 0.25% FS ± 1 least significant digit (includes linearity, hysteresis, repeatability)
Dial Depth 1.9 in
Dial Dia 3 in
Display Type LCD
Electrical Connection Cable
Enclosure Ratings IP66, NEMA Type 4X
Loop Resistance 600 Ω
Materials Aluminum, Polycarbonate, NBR, 316L Stainless Steel
Materials, Wetted 316L Stainless Steel
Media Compatibility Clean dry air / inert gas, Clean process / cooling water, Compatible Liquids, Inert / non-reactive gases, Oils / lubricants, Organic solvents, Water
Mounting Orientation None
Number of Digits 4
Operating Temperature, Max 158 °F
Operating Temperature, Min 32 °F
Output Detail 4 to 20 mA
Output Signal Current
Power Consumption 0.8 W
Process Connection Size 1/4 in
Process Connection Type NPT Male
Series ID Series-DPG-200
Set Point Adjustment Menu Configurable
Set Point Differential/Hysteresis 1 Least Significant Digit
Supply Power Note 2-24 VAC ± 20% 50 to 400 Hz, 12-24 VDC ± 20%
Supply Power Type AC/DC
Supply Voltage 12 to 24 Vac/Vdc
Switch Note 2 SPDT form C contacts, 0.5 A @ 125 VAC resistive, 1 A @ 24 VDC
Switch Rating 0.5 A @ 125 Vac, 1 A @ 24 Vdc
Switch Type (2) SPDT
Thermal Effect 0.026%/°F @ 0 to 70°F, 0.016%/°F @ 70 to 158°F
Weight 8.84 oz

The Series DPG-200 Digital Pressure Gage has a precise ±0.25% full scale accuracy. The 4 digit digital display will reduce the potential for errors in readings by eliminating parallax error commonly produced with analog gages. The DPG-200 is packaged in a durable extruded aluminum case designed to meet NEMA 4X (IP66). The unit is powered by 12-24 VDC/VAC and contains two alarm set points along with a 4-20 mA process output. A four-button keypad allows easy access to features. These features include backlight, peak and valley, auto zero and conversion of the pressure units.

NIST CALIBRATION available in Product Configurator.
