Series-I2-4
Weatherproof Immersion Temp Sensor for Water Lines, Easy Install, 11 Outputs
Series-I2-4
From
$
60.45
Product Overview
- Cable Length 8 in
- Enclosure Ratings NEMA Type 4X
- Mounting Orientation 1/2 in Threaded Connection to Fit Series IW2 Thermowell
- Operating Temperature, Max 240 °F
- Operating Temperature, Min -32 °F
- Probe Diameter 0.25 in
- Series ID Series-I2-4
- Sheath Material 304 Stainless Steel
Supported Applications
The Dwyer Series I2-4 Weatherproof Immersion Temperature Sensor is designed for monitoring hot and chilled water lines feeding Air Handlers and Cooling Towers. The series supports communication to standard building control systems via a choice of sensor outputs.
Operating Conditions & Performance
The Series I2-4 operates within a process temperature range of -32 to 240°F (-35.5 to 115.5°C). Accuracy specifications vary by sensor element type:
- Platinum RTD: ±0.6% @ 32°F (0°C)
- Nickel RTD: ±0.5°F @ 32°F (0°C)
- Balco RTD: ±0.1% @ 32°F (0°C)
- Thermistors: ±0.36°F from 32 to 158°F (0 to 70°C)
The probe features a 1/4" (6.3 mm) diameter with insertion lengths of 4" or 6". The wetted material is specified as 304 SS.
Configuration Options
Housing and Installation

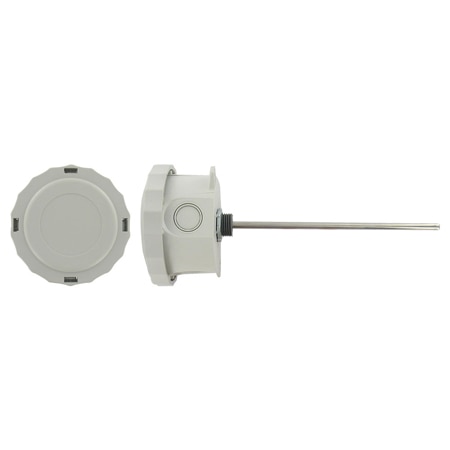

The sensor utilizes a plastic housing rated Weather-Proof, featuring a 1/4 turn twist-off cover to reduce installation time. Electrical access is provided via four conduit knockouts with a diameter of ø0.896" [22.76 MM] spaced at 3-3/32" [78.74]. The housing dimensions are 3-31/32" [101.00] in diameter and 2-7/32" [56.16] in height.
Process connection is a 1/2" threaded interface designed to fit the Series IW2 thermowell. A note specifies that a Series IW2 Thermowell must be used on pressurized air and water lines to prevent leakage around the probe.
Sensor Elements
The series offers 11 output options, including:
- PT 100 Ω RTD
- NI 1000 Ω RTD
- Balco 1000 Ω RTD
- 10K Ω Type II Thermistor
- 3K Ω Thermistor
- 5K Ω Thermistor
- 100K Ω Thermistor
- 20K Ω Thermistor
- 2252 Ω Thermistor
- 10K Ω Type III Thermistor
Model Numbering and Accessories
The model number format follows the pattern I2--. For example, I2-41062 denotes a PT 100 Ω RTD with a 6" insertion length. Available thermowells include models IW2-262 and IW2-242 in 304 SS for 6" and 4" lengths respectively.
Key Product Differences
Variants within the Series I2-4 are distinguished by sensor type code and insertion length. The available configurations include models with either a 4" or 6" probe stem, paired with one of the eleven supported RTD or thermistor elements.
