TSW-150-NP

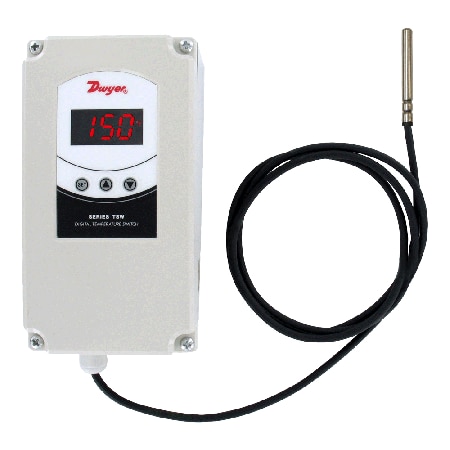

Weatherproof digital temperature switch, single stage, 90 to 255 VAC supply voltage, no temp sensor
Choose a Variant
Supply Voltage
Temperature Resolution
Temperature Probe Style
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| Accuracy | ± 1 % |
| Compliance | CE, cURus |
| Control Type | On/Off |
| Display Color | N/A |
| Display Note | 3-digits plus sign |
| Display Type | 3 Digit LED |
| Enclosure Ratings | IP65, NEMA Type 4X |
| Horsepower Rating | 2 hp @ 240 Vac |
| Input Type | Thermistor |
| Memory Backup | Non-Volatile |
| Number of Stages | 1 |
| Operating Temperature, Max | 104 °F |
| Operating Temperature, Min | 32 °F |
| Output Detail | Relay |
| Power Consumption | 3.6 VA |
| Scale | N/A |
| Sensor Type | Thermistor |
| Supply Power Note | 90 to 255 Vac ±10% |
| Supply Power Type | AC |
| Supply Voltage | 90 to 255 Vac |
| Switch Note | R1 SPDT relay resistive load: 20 A @ 240 VAC; R2 SPDT relay resistive load: 8 A @ 240 VAC; Inductive load: 3 A @ 240 VAC |
| Switch Rating | R1: 20 A @ 240 Vac; R2: 8 A @ 240 Vac; 3 A @ 240 Vac |
| Switch Type | (2) SPDT |
| Temperature Measurement Range | PTC: -50 to 150 °C, NTC: -50 to 110 °C |
| Temperature Probe Style | N/A |
| Temperature Resolution | 1 °F |
| Weight | 1.2 lb |
| See All Specs | |
