CXA-S2

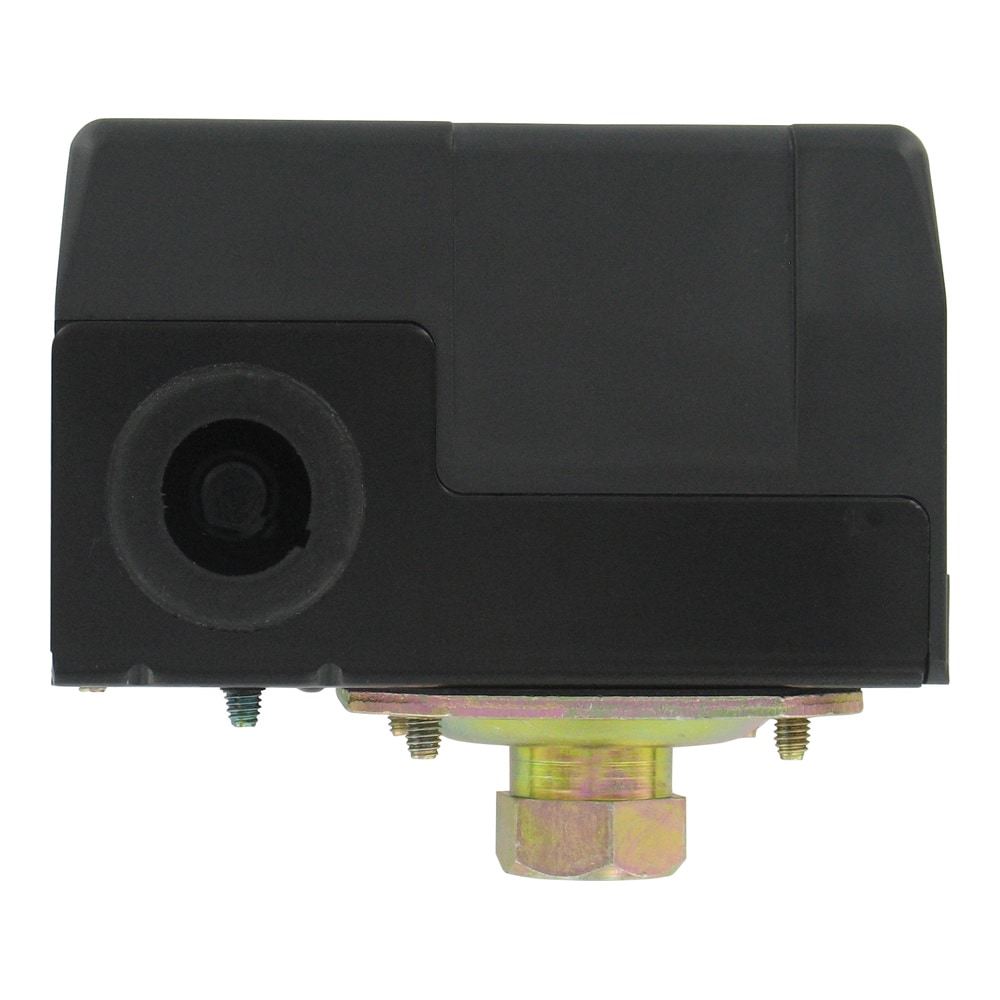

Water pump pressure switch, NC, range 30-100 psig (2.1-6.9 bar), approx. adj. deadband 20-35 psig (1.4-2.4 bar), max. pressure 179 psig (12.3 bar).
Choose a Variant
Switch Type
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| Deadband | 20 to 35 psi |
| Enclosure Ratings | None |
| GrossWeightValue | 0.75 |
| Measurement Pressure Type | Gauge |
| Measurement Pressure, Max | 100 psi |
| Measurement Pressure, Min | 30 psi |
| Mounting Orientation | Not Position Sensitive |
| Operating Temperature, Max | 140 °F |
| Pressure Limits | Up to 179 psi |
| Process Connection Size | 1/4 in |
| Process Connection Type | NPT Female |
| Repeatability | ± 5 psi |
| Requires Factory Media Review | true |
| Series ID | Series-CXA |
| Set Point Adjustment | Internal Screw |
| Switch Rating | 20 A @ 120 Vac, 12 A @ 240 Vac, 9.6 A @ 240 Vac (3 phase), 8.6 A @ 32 Vdc, 3.1 A @ 120 Vdc, 1.6 A @ 240 Vdc.ac |
| Switch Type | DPST Snap NC |
| Weight | 0.75 lb |
| Country of Origin | China |
| See All Specs | |
