Microx-Online-Oxygen-Analyzer

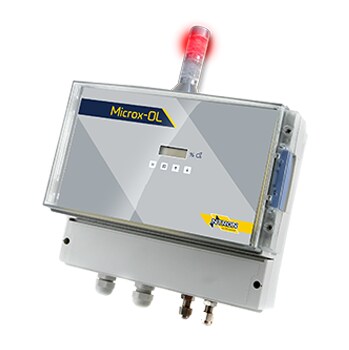

Wall-mounted Zirconia Oxygen Analyzer with Integrated Audio-visual Alarms
- Zirconia or electrochemical sensor technology options
- 0 to 1,000ppm, 0 to 25%, 0 to 96% O2
- Simple to install and easy to operate
- Compact slimline design
- Internal pressure and flow regulation
- Integral visual alarm beacon
- 4-20mA output with RS232vcommunication
Microx-Online-Oxygen-Analyzer
From
$
4,231.00
Product Overview
- Calibration Interval 12 months
- Calibration Note Sample pressure and flow Factory-set at 0.3 barg (5 psig); 0.55 SCFH (250 ml/m)
- Control Output SPST Relay
- Data Interface RS232
- Display Type LCD
- Electrical Connection Screw Terminal
- Electrical Output 4 to 20 mA
- Enclosure Ratings IP65
- Flow Rate Note 100 to 500 ml/min (250 ml/min optimal) in a vented atmosphere. Set at Factory.
- Height 156 mm
- Housing Material ABS
- Indicator Type LCD, audible and visual alarms
- Length 280 mm
- Lifetime up to 5 yr
- Light Indicator Length 109 mm
- Mounting Orientation Wall Mount
- Operating Humidity 0 to 95% RH, non-condensing
- Operating Pressure, Max 1100 mBar
- Operating Pressure, Min 900 mBar
- Operating Temperature, Max 60 °C
- Operating Temperature, Min -25 °C
- Output Detail 1 off relay, dry contact 5 Amp-rated (2 relay outputs assigned to control light tower indicator)
- Power Consumption 6 W
- Process Connection Type Compression Fitting
- Resolution 1 ppmV / 0.01 %
- Response Time < 15 seconds @ 25 °C (77 °F) within selected range
- Sample Pressure 21 barg (300 psig) maximum
- Sensitivity 1 ppmV (ppm ranges) / 0.01 % (% ranges)
- Sensor Type Zirconia (ZrO2)
- Series ID Microx-Online-Oxygen-Analyzer
- Shelf Life unlimited
- Supply Voltage 85 to 230 Vac
- Width 219 mm
For maintenance and commissioning, the Microx Online Oxygen Analyzer (Microx-Online-Oxygen-Analyzer) helps you monitor key conditions in continuous monitoring and always-on control. It supports maintenance programs that depend on reliable readings. It is a good choice for teams that value repeatability and clarity.
