DA084-Series

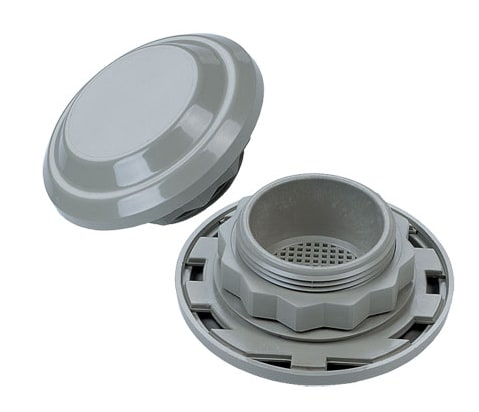

Vent Plug IP55
Models In Stock
- High Degree of Protection
- Easy to Install
- IP55
DA084-Series
From
$
16.23
Models In Stock
Product Overview
- Additional Features 1 With gasket
- Air Interface 7 cm²
- Cover N/A
- Diameter 66 mm
- Enclosure Ratings IP55
- Fitting position Variable
- Height 0 mm
- Length 0 mm
- Mounting PG 29 thread with union nut
- Operating Temperature, Max 70 °C
- Operating Temperature, Min -45 °C
- Pack Size 1
- Series ID DA084-Series
- Weight 62 g
- Width 31 mm
- Works With Pressure Compensation Plug DA084
Supported Applications
The Omega DA084 Series Vent Plug is a pressure compensation plug designed for tightly closed enclosures. It provides controlled changes in internal pressure to prevent the ingress of dust and humidity while maintaining an IP55 protection rating.
Operating Conditions & Performance
The device operates within an ambient temperature range of -45 to 70°C (-49 to 158°F), which also serves as its storage temperature limit. The housing is constructed from plastic according to UL94 V-0 standards and features a PG 29 thread with union nut for mounting.
Key performance parameters include:
- Air Interface: Approx. 7 cm² (2.8 in²)
- Fitting Position: Variable
- Enclosure Rating: IP55
Installation Requirements
To install, make a cut-out of Ø 37 + 1 mm (1.5 + 0.03") in the enclosure wall and mount the pressure compensation device with the nut. Ensure the sealing gasket is placed on the outer side panel of the enclosure.
Configuration Options
The series includes a single documented configuration:
- Model DA08400901: Vent plug with gasket, IP55 protection type. Weight is 62 g (0.14 lb) per piece.
The device comes complete with an operator's manual and includes a sealing gasket as standard equipment.
Recommended Configuration for Optimal Performance
- For optimal pressure compensation, use two devices mounted on opposite sides towards the top of the enclosure.
Key Product Differences
The DA084 Series is currently represented by a single variant (DA08400901) with fixed dimensions of Ø 66 x 31 mm (2.6 x 1.2 in). The series carries RoHS compliance and includes a 1 YEAR WARRANTY.
