HGSeries

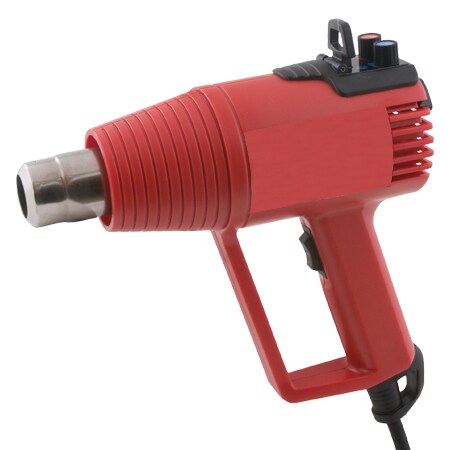

Variable Airflow Heat Guns with LCD and Programmable
- Compact, Light Weight, Easy-to-Use
- Six Programmable Settings With Digital Display of Temperature and Air Flow
- Programmable Heat and Air Flow
- Adjustable Temperature in 10° Increments From 50 to 540°C (130 to 1000°F) in °F or °C
HGSeries
From
$
588.64
Product Overview
APPLICATIONS
Value added features include lockable temperature and air flow controls, power interrupt safety reset, Fahrenheit or Celsius and balanced ergonomic design.
Programmable or dial-in settings. (See below for list of pre-programmed, dial-in settings.) Powerful, accurate, controllable heat and air flow to get the job done right. Electronic temperature control system maintains constant temperature when varying air flow or using attachments.
A broad range of optional attachments make the LCD Heat Guns ideal for a wide variety of applications including heating, shrinking, drying, soldering, desoldering, plastic welding and more.
SPECIFICATIONS
Voltage: 120V, 60 Hz, 11A
Output: 1300W maximum
Temperature: Variable 50 to 540°C (130 to 1000°F)
Air Flow Volume: 113 to 453 l/min (4 to 16 CFM)
Air Flow Velocity: 213 to 1219 m/min (737 to 4000 FPM)
Agency Approvals: UL and CUL
Nozzle Opening: 22.8 mm (0.88") diameter
Net Weight Gun: 726 g (1.6 lb)
Net Weight Kit: 2.75 kg (6 lb)
Cordset: 1.8 m (6'), 3-wire grounded
Motor: Permanent magnet
Dimensions: 208.3 L x 76.2 W x 185.4 mm H (8.2 x 3.0 x 7.3")
AUTOMATIC DIAL-IN SETTINGS INCLUDED
- Heat or Dry Temperature Sensitive Materials
- Shrink Tubing
- Shrink Packaging and Specialty Connectors
- Solder and Desolder
- Bend Plastics
- Activate Adhesives
- Remove Decals
- Defrost Frozen Pipes and More
Value added features include lockable temperature and air flow controls, power interrupt safety reset, Fahrenheit or Celsius and balanced ergonomic design.
Programmable or dial-in settings. (See below for list of pre-programmed, dial-in settings.) Powerful, accurate, controllable heat and air flow to get the job done right. Electronic temperature control system maintains constant temperature when varying air flow or using attachments.
A broad range of optional attachments make the LCD Heat Guns ideal for a wide variety of applications including heating, shrinking, drying, soldering, desoldering, plastic welding and more.
SPECIFICATIONS
Voltage: 120V, 60 Hz, 11A
Output: 1300W maximum
Temperature: Variable 50 to 540°C (130 to 1000°F)
Air Flow Volume: 113 to 453 l/min (4 to 16 CFM)
Air Flow Velocity: 213 to 1219 m/min (737 to 4000 FPM)
Agency Approvals: UL and CUL
Nozzle Opening: 22.8 mm (0.88") diameter
Net Weight Gun: 726 g (1.6 lb)
Net Weight Kit: 2.75 kg (6 lb)
Cordset: 1.8 m (6'), 3-wire grounded
Motor: Permanent magnet
Dimensions: 208.3 L x 76.2 W x 185.4 mm H (8.2 x 3.0 x 7.3")
AUTOMATIC DIAL-IN SETTINGS INCLUDED
| Preset Program | Temp °F | Temp °C | Air Flow CFM | Heat Gun Application |
|---|---|---|---|---|
| 1 | 250 | 120 | 8 | Applying specialty composites |
| 2 | 450 | 230 | 12 | Shrinking tubing |
| 3 | 650 | 340 | 14 | De-soldering circuit boards |
| 4 | 850 | 450 | 16 | Bending and forming plastics |
| 5 | 1000 | 540 | 12 | Soldering |
