TXP-T40

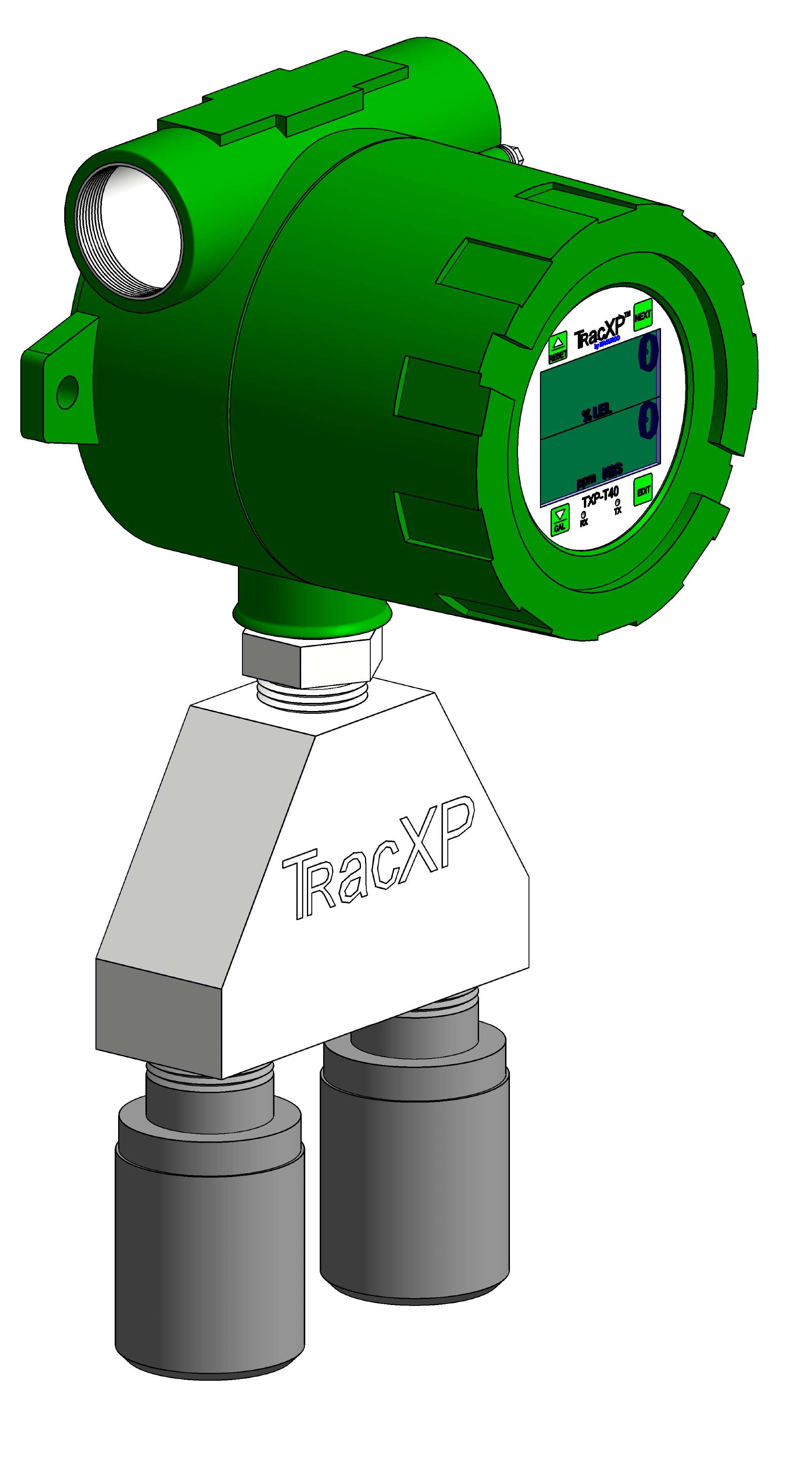

TracXP TXP-T40 Fixed Gas Transmitter – Single/Dual Sensor, Flexible Gas Detection & Hazardous Area Rated

(0)

Certified for Class 1, Div. 1 or Div. 2

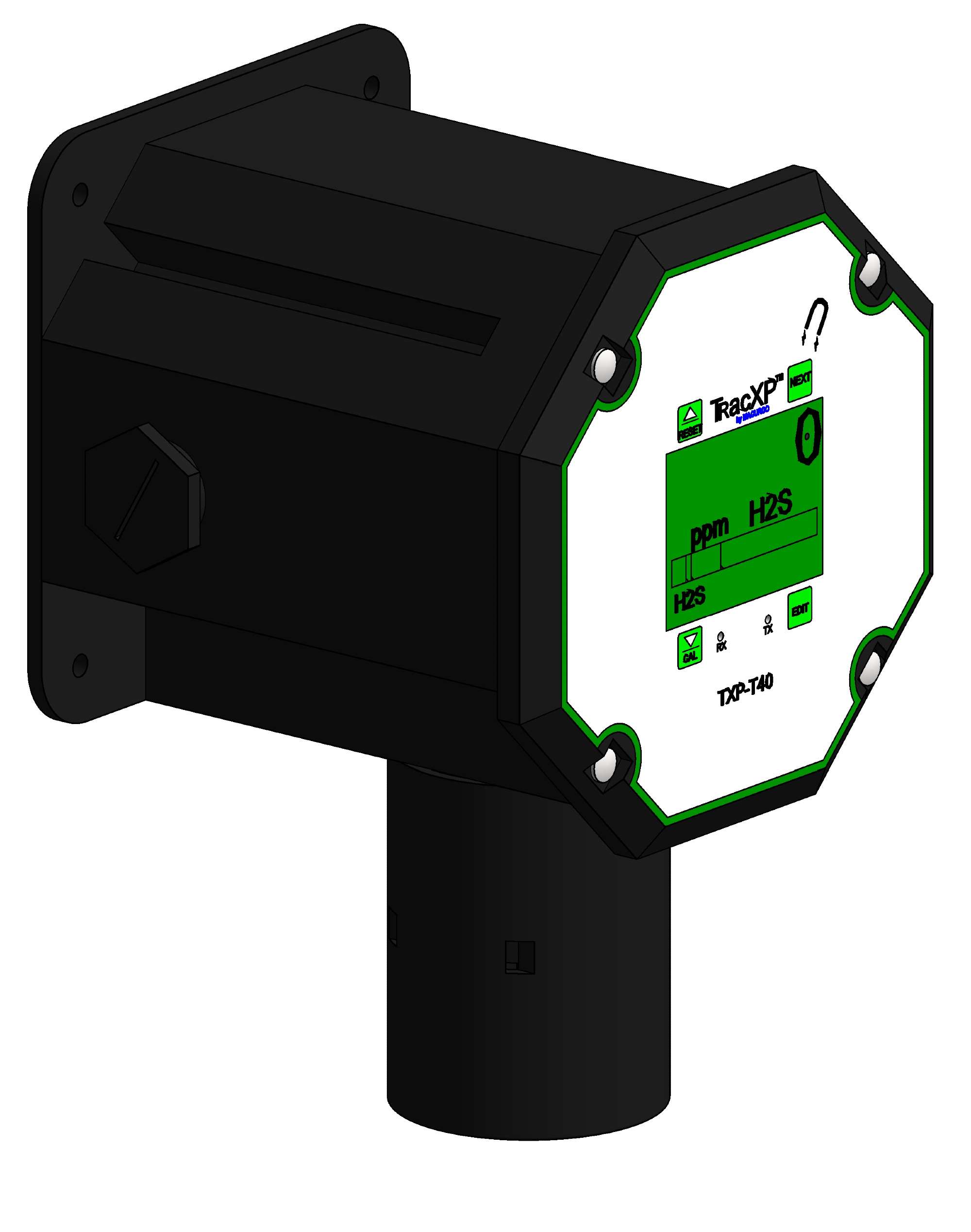

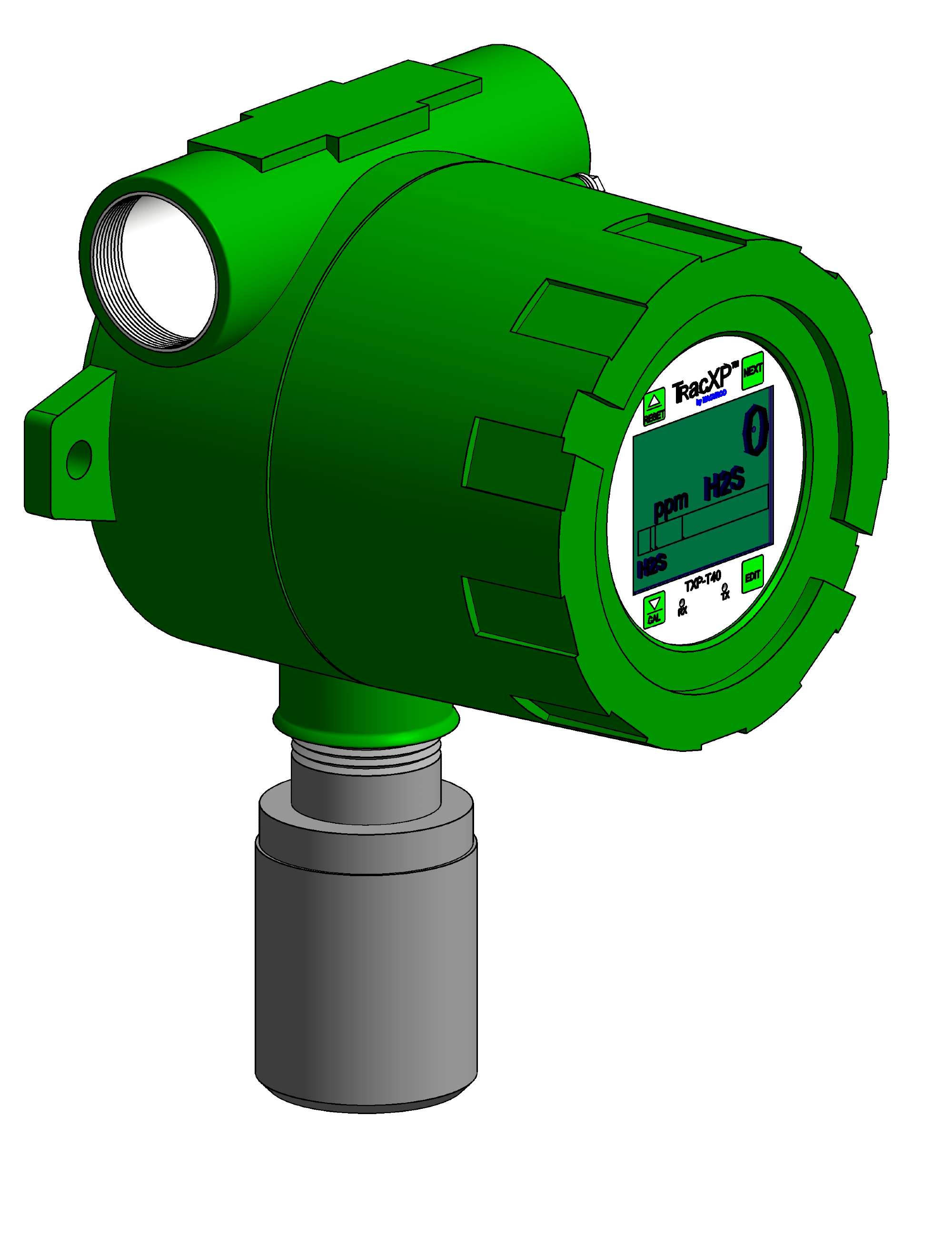

Poly, Aluminum or Stainless Steel Enclosure
Vivid QVGA Backlit Color TFT Display
Brilliant Status Indicating Color Display

See Product Overview

TXP-T40

From ^$ 4,330.00

Shop Models

1 Variations available

See all series options below

Data Sheet

Product Overview

Alarm Indication QVGA backlit color TFT
Calibration Interval 3 months
Calibration Note Calibrate only in a clean atmosphere, free of background gas. TracXP recommends using a cylinder of Zero Air or Nitrogen, depending on the sensor type, for fresh air or zero calibration.
Compatibility Compatible with combination of electrochemical, catalytic bead, infrared, or PID sensor channels; compatible with Modbus TCP/IP via ethernet RJ-45 connector, and dual programmable master / slave Modbus RS-485 serial interfaces.
Compatible Sensors Note Sensor Channels: Two; compatible with a combination of electrochemical, catalytic bead, infrared, or PID sensors.
Current Output 4 to 20 mA
Data Interface Modbus TCP, Modbus RS-485 RTU
Data Interface Note Ethernet: Connectivity provided via RJ-45 connector for Modbus TCP/IP. RS-485: Dual programmable master/slave interfaces are optional features. 4-20mA: Standard dual 3-wire current source outputs.
Data Logging No
Display Type QVGA backlit color TFT
Electrical Output Note Dual 3-wire 4-20mA current source
Electrical Rating Note Power consumption: < 10 W with relay board (all relays energized)
Expansion & Connectivity Three programmable relays and a dedicated fault relay; Two individually programmable Modbus RS-485 ports for master or slave.
Hazardous Classification Class 1, Div 1 or Div 2; Explosion-Proof Cl.1 Div.1 Gr ABCD; Non-Incendive Cl.1 Div.2 Gr ABCD
Mounting Wall mount
Mounting Note Wall mounting using predrilled mounting flanges. Duct Mount Kits available for AL/SS Transmitters and Poly Transmitters.
Network and Communications Dual programmable master/slave Modbus RTU RS-485 serial interfaces; Dual 3-wire 4-20mA current source; Modbus TCP/IP via ethernet RJ-45 connector; Embedded Webpage Support: Yes
Operating Environment -40 to 140 °F; 95% RH non-condensing; IP65 (IP66 with 88-C50G-0000-00)
Operating Temperature, Max 140 °F
Operating Temperature, Min -40 °F
Programming front panel buttons (via magnetic tool for non-intrusive operation) or integrated web server (via Ethernet)
Relay Output Note Three programmable relays plus dedicated FAULT relay; 4 configurable 5A relays
Series ID TXP-T40
Supply Voltage 10 to 30 Vdc
Supported Devices TracXP intelligent sensors, Modbus® TCP/IP-compatible systems, Modbus® RS-485 serial interfaces

TracXP TXP-T40 Gas Transmitter – Configurable fixed gas detector for Class I Div 1 or Div 2 hazardous areas. Supports single or dual sensors, local or remote sensing, and detection of combustible, toxic, oxygen, refrigerant, VOC, and specialty gases.
