TXP-C40

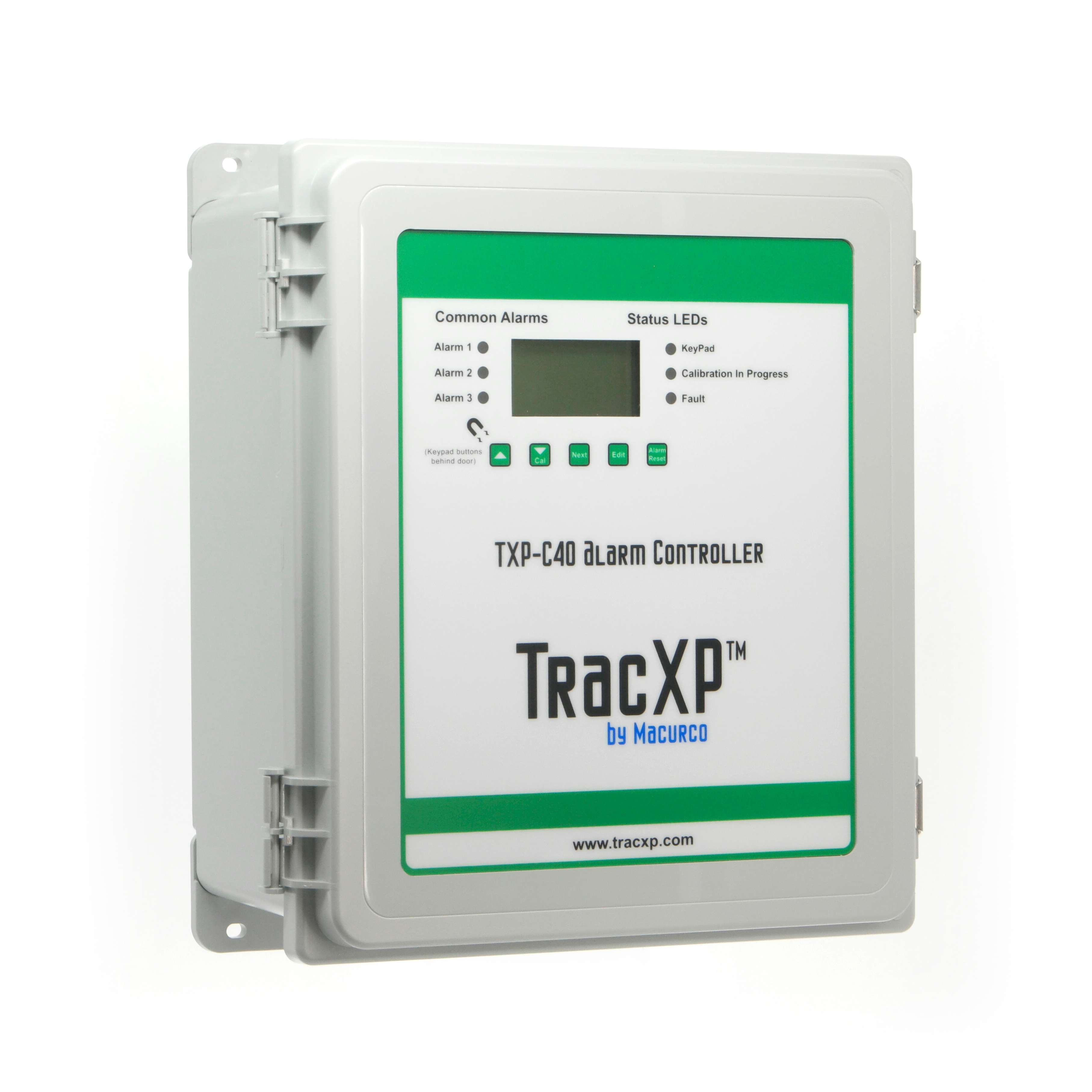

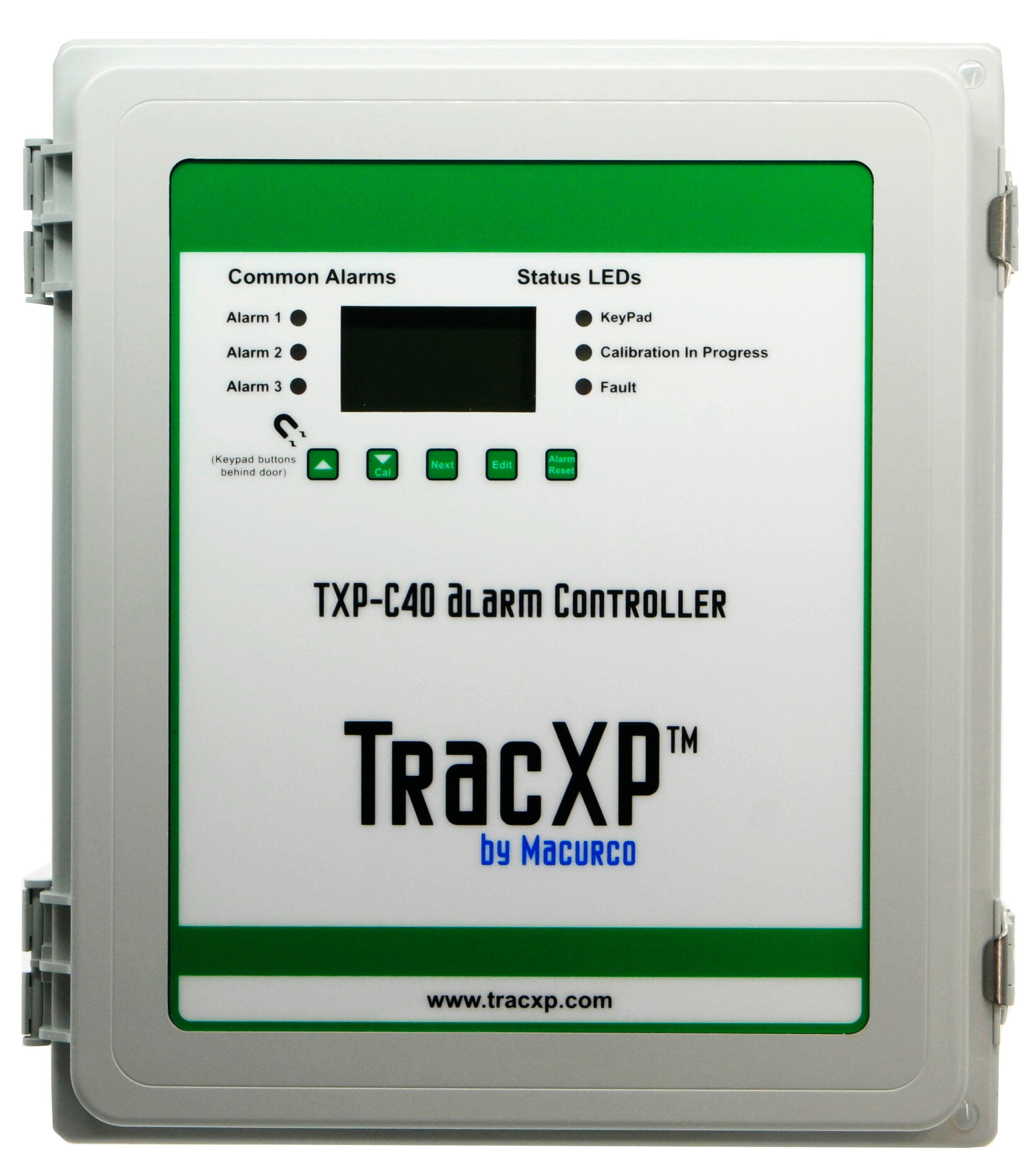

TracXP C40 Control Panel – 4-Channel Monitoring, LCD Display, Alarm LEDs & Flexible I/O Options
- DURABLE DESIGN: Housed in a NEMA 4X enclosure for reliable performance in harsh industrial environments
- CLEAR VISIBILITY: Backlit 128 x 64 pixel graphic LCD displays engineering units, bar graphs, and 30-minute trends
- FLEXIBLE MONITORING: 4-channel alarm controller supports versatile input configurations for diverse gas detection needs
- INTUITIVE STATUS UPDATES: Dedicated LEDs provide instant visual feedback on alarm and fault conditions
- EASY MAINTENANCE: Integrated Cal Mode allows for simple, push-button zero and span calibration
- ROBUST CONTROL: Includes two programmable 5A SPDT relays for managing warning, high alarm, horn, and fault conditions
- VERSATILE CONNECTIVITY: Features an RS-485 Modbus RTU slave serial port for seamless system integration
Product Overview
- Alarm Note Two programmable 5A Form C relays for warning, high alarm, horn, and fault conditions, with optional six programmable 5A relays and LED indicators for alarm and fault status.
- Applications Chemical Refineries, Chemicals, Food and Beverage, Industrial and Manufacturing, Mechanical Structures, Oil, Oil and Gas, Oils, Petrochemical, Power Generation, Power Plants & Boilers, Temperature Maintenance, Waste water, Waste Water Applications, Water
- Calibration Note Pushbutton zero and span calibration for direct sensor input applications. Integrated Cal Mode allows for simple, push-button zero and span calibration.
- Compatibility Compatible with Modbus RTU, Modbus TCP, and 4-20 mA sensor inputs; designed for C1D2 locations.
- Compatible Sensors Note Supports electrochemical toxic sensors, catalytic bead sensors, infrared (IR) sensors, and 4-20 mA analog sensors.
- Control Output 2 Relays
- Current Output 5 A
- Data Interface Modbus RTU, RS-485, Modbus TCP, Ethernet
- Data Interface Note RS-485: Modbus RTU slave port with transmit and receive LEDs for system status; Ethernet: Supports Modbus TCP via an optional serial-to-dual Ethernet bridge suitable for C1D2 locations.
- Display Note Graphic 128 x 64 pixel backlit LCD; displays engineering units, bar graphs, and 30-minute trends; six LEDs for alarm status, cal mode, and keypad activity
- Display Resolution 128 x 64 Pixels
- Display Type Backlit LCD
- Electrical Output Note 5A 30 Vdc or 250 Vac resistive Form C
- Electrical Rating Note • Relays=5 A @ 30 VDC or 250 VAC (V~) (resistive load); • Primary Power Supply=50 W
- Enclosure Ratings NEMA Type 4X
- Enclosure Ratings Note NEMA 4X; suitable for Class I, Division 2, Groups A, B, C & D environments.
- Expansion & Connectivity Connectivity: Includes a Modbus RTU slave RS-485 port; optional serial to dual Ethernet Modbus TCP bridge available.
- Hazardous Classification Class I, Division 2, Groups A, B, C & D
- Input Note Supports configurations including dual toxic (electrochemical), dual bridge (catalytic bead/IR), one bridge and one toxic, or dual 4-20 mA inputs.
- Mounting Note NEMA 4X enclosure suitable for Class I, Division 2, Groups A, B, C & D environments.
- Network and Communications Modbus RTU Slave RS-485 Port; Tx/RX LEDs; Serial to dual Ethernet Modbus TCP bridge (for C1D2 locations)
- Number of Outputs 8
- Operating Environment -25°C to +60°C (-13°F to 140°F); NEMA 4X
- Operating Temperature, Max -60 °C
- Operating Temperature, Min -25 °C
- Output Detail 5A Form C Relays
- Programming keypad
- Relay Output Note Two programmable 5A 30 VDC / 250 VAC resistive Form C relays for warning, high alarm, horn, and fault conditions; optional six programmable 5A relays available.
- Series ID TXP-C40
- Supply Voltage 120 to 240 Vac, 10 to 30 Vdc
- Supported Devices Modbus® RTU master systems (via RS-485 port), Modbus® TCP networks (via serial to Ethernet bridge)
- Voltage Output 30 Vdc, 250 Vac
TracXP TXP-C40 Control Panel offers advanced 4-channel gas detection controller with signal conditioning, alarm management, and real-time LCD display. Supports 4-20 mA, catalytic, IR, and electrochemical sensors, plus Modbus, Ethernet, relay, and analog outputs.
