QTS-6000

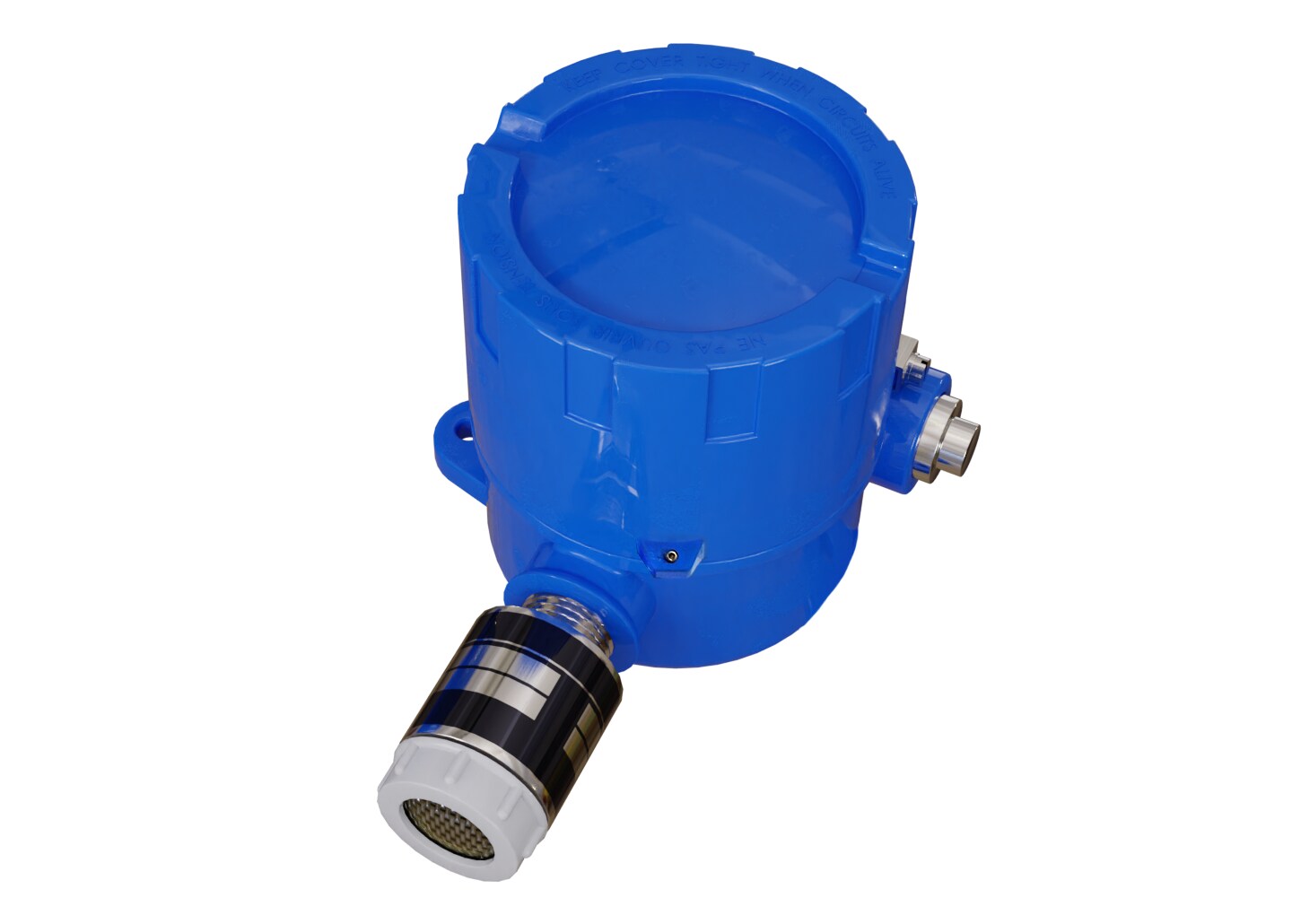

Toxic Gas Sensor, 4-20mA Output, Aluminum Sensor Housing

(0)

Mechanical Rooms
Warehouses
Refrigeration Plants
Industrial Plants
Process Monitoring
Leak Detection
Parking Garages
Auto/Truck Maintenance Facilities
Oil and Gas Industry

See Product Overview

QTS-6000

From ^$ 2,239.00

Shop Models

10 Variations available

See all series options below

Data Sheet

Product Overview

Accuracy ± 2.5 %
Applications Access and Parking Control Systems, Building and Maintenance, Industrial and Manufacturing, Power Plants & Boilers, Refrigeration Equipment
Approvals RoHS, CSA-4828-02 (CSA File #: 088890 0 000 for Industrial Enclosure Options Only)
Calibration Note Recommended Maintenance: Accuracy & Bump test every 3 to 6 months or as required by Code
Display Type N/A
Electrical Connection Screw Terminal
Electrical Output 4 to 20 mA
Enclosure Material Note Commercial “C”: General Purpose (Wall Mount); ABS Plastic, UL94 V-0; NEMA 1 (IP10) Commercial “D”: General Purpose (Duct Mount); ABS Plastic, UL94 V-0; NEMA 1 (IP10) Commercial “N”: Weatherproof (Wall Mount); ABS Plastic; UL94 V-0; NEMA 4X (IP56) Industrial “E1 ”: Industrial Connection Head; Aluminum (Epoxy Coated); NEMA 4X (IP56) and Enclosure meets Type 7 & 9 Explosion Proof Class 1 Div. 1, Groups B, C, D also Group A; CSA, FM (Factory Mutual), EX (Explosion Proof), UL listed Industrial “S1 ”: Industrial Connection Head; 316 Stainless Steel; NEMA 4X (IP56) and Enclosure meets Type 7 & 9 Explosion Proof Class 1 Div. 1, Groups B, C, D also Group A; CSA, FM (Factory Mutual), EX (Explosion Proof), UL listed
Load Resistance 600 Ohms
Material Construction Option none
Operating Environment Indoor use only
Operating Humidity 0 to 90% RH, non-condensing
Operating Temperature, Max 122 °F
Operating Temperature, Min 32 °F
Power Consumption 0.9 W max
Protection 4.0 Watts @ 1m (3.28 ft) Radiated
Relative Humidity 32 to 68ºF (0 to 20ºC)
Response Time < 60 Seconds, typical
Safety Features 28.5 VDC maximum and 300 minimum load
Sensor Type Electrochemical, non-consuming
Series ID QTS-6000
Service Life 2 to 3 years, typical
Shelf Life 6 months
Storage Temperature, Max 68 °F
Storage Temperature, Min 32 °F
Supply Current 25 mA
Supply Voltage 12 to 36 Vdc
Tightening Torque 0.37 ft-lb (0.502 Nm) Nominal
Wire Gauge 24 to 16 AWG
