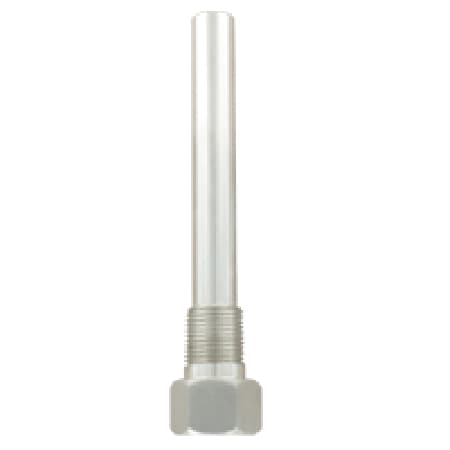

Thermowells – Corrosion-Resistant 304SS, 316SS, Brass, Carbon Steel
Click and hold to zoom

Series-WConfiguration

Thermowells – Corrosion-Resistant 304SS, 316SS, Brass, Carbon Steel

(0)
Series-W

Build your Part Number

Series-WData Sheet

Data Sheet
Thermowells – Corrosion-Resistant 304SS, 316SS, Brass, Carbon Steel Series-W Series-W
Product Overview
  • Series ID Series-W
(0)
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 11ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getContent, 15ms
  • QUESTIONS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
EXAMPLE W 1 0 1 1 1 0 B 04 Series W1011-10B-04 Thermowell, 304SS sheath, 1/2 NPSF inside threads, 1/2" NPT connection.
HARDWARE   1
2
3
4		               304SS Sheath
316SS Sheath
Brass
Carbon Steel
TAPER/BORE     0
1
2
3
4		             Straight/0.260
Step/0.260
Straight/0.390
Taper/0.260
Taper/0.390
INSIDE THREADS       1           1/2 NPTF
PROCESS CONNECTION         1
2
3
4
5
6
7
8
9
A
B
C		         1/2" NPT
3/4" NPT
1" NPT
1" 150# Flange
1-1/2" 150# Flange
2" 150# Flange
1" 300# Flange
1-1/2" 300# Flange
2" 300# Flange
1" 600# Flange
1-1/2" 600# Flange
2" 600# Flange
MOUNTING           1
2
3
4		       Threaded
Heavy Duty Threaded
Heavy Duty Flanged
Flanged
LAG             0
2
3		     None
2"
3"
SHEATH O.D. BASE/
TAPER		               1
4
6
7
8
9
A
B
C
D
E		   5/8" / 1/2"
3/4" / 1/2"
7/8" / 1/2"
7/8" / 5/8"
1-1/16" / 5/8"
7/8" / 49/64"
1-1/16" / 49/64"
1/2" Straight
49/64" Straight
7/8" Straight
3/4" Straight
"A" LENGTH                 04
06
09
12
15
18
24		 4"
6"
9"
12"
15"
18"
24"
