TDFT

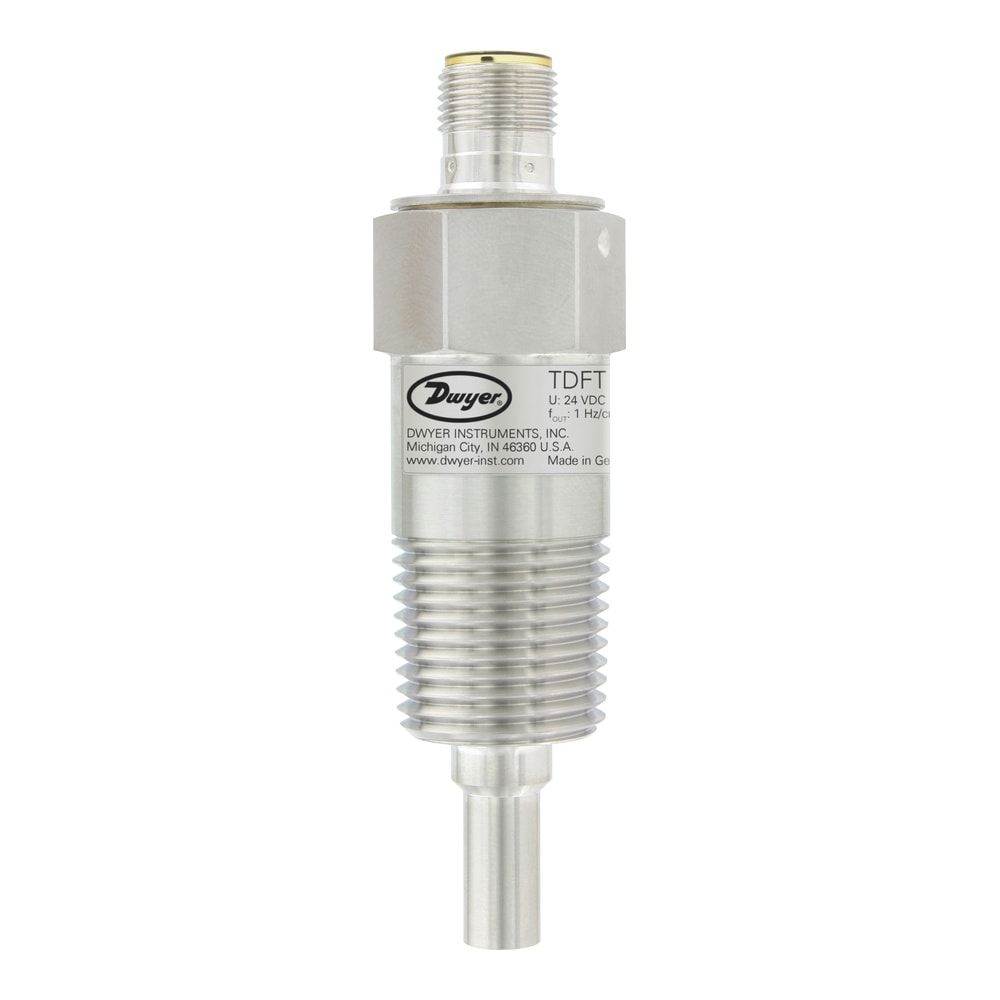

Thermal dispersion flow transmitter, 316L Stainless steel, 1/2" NPT process connection, 1/2-2" pipe size
Choose a Variant
Pipe Size, Max
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| Applications | Boilers, Fluid Measurement and Control, Oil, Refrigeration, Refrigeration Equipment |
| Electrical Connection | M12 4 pin Male |
| Enclosure Material | 316L Stainless Steel |
| Enclosure Ratings | IP67 |
| GrossWeightValue | 0.27 |
| Measurement Pressure Type | Gauge |
| Media Compatibility | Clean process / cooling water |
| Mounting Orientation | Horizontal, Vertical |
| Operating Temperature, Max | 158 °F |
| Operating Temperature, Min | -4 °F |
| Output Frequency | 5 to 74 Hz |
| Pipe Size, Max | 2 in |
| Pipe Size, Min | 0.5 in |
| Power Consumption | max 50 mA |
| Pressure Limits | Up to 362 psi |
| Process Connection Size | 1/2 in |
| Process Connection Type | NPT Male |
| Process Temperature, Max | 140 °F |
| Process Temperature, Min | 14 °F |
| Repeatability | ± 10% |
| Repeatability Note | ± 10% at 68°F (20°C) |
| Response Time | 1 to 10 s |
| Sensor Material | 316L Stainless Steel |
| Series ID | Model-TDFT |
| Storage Temperature, Max | 158 °F |
| Storage Temperature, Min | -40 °F |
| Supply Power Type | DC |
| Supply Voltage | 24 Vdc |
| Switch Rating | 80 mA |
| Velocity, Max | 3 ft/s |
| Velocity, Min | 1 ft/s |
| Weight | 124.5 g |
| Country of Origin | Germany |
| See All Specs | |
