Series-781

SPDT Ice Cube Relay, 15 A, AC/DC, LED Indicator, Color-Coded Test Button

(0)

Models In Stock

Clear plastic housing to easily view the contacts
Flag and LED status indicators for visual confirmation of relay state
Socket mounted for quick installation/replacement

See Product Overview

Series-781

From ^$ 19.30

Models In Stock

Shop Models

4 Variations available

See all series options below

Data Sheet

Product Overview

Applications HVAC, Industrial and Manufacturing, Pump Control, Refrigeration, Refrigeration Equipment
Compliance CE, CSA, cULus, cURus
Electrical Connection Screw Terminal
Electrical Output N/A
Life Cycle Electrical : 100,000 cycles; Mechanical : 10,000,000 cycles
Materials Polycarbonate
Operating Temperature, Max 131 °F
Operating Temperature, Min -40 °F
Power Consumption 0.9 VA; 0.7W
Storage Temperature, Max 185 °F
Storage Temperature, Min -40 °F
Supply Current 14 A
Switch Rating 15 A @ 277 VAC or 28 VDC
Switch Type SPDT or DPDT
Trigger Voltage 24 to 240 Vac, 24 Vdc
Weight 1.02 oz

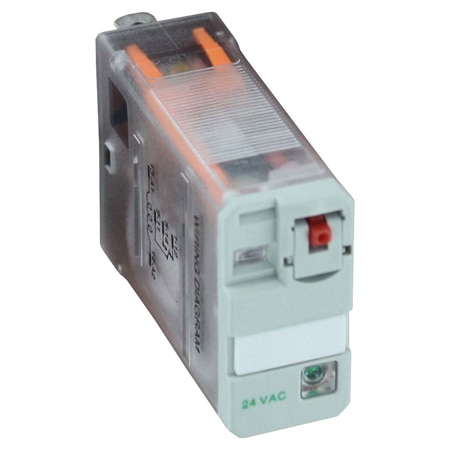

The Series 781 Electromechanical Ice Cube Relay is a full-featured SPDT relay that can be used to handle loads up to 15 amps for AC or DC circuits. It features a flag status indicator and a LED status lamp to let the user know when the relay is activated. In order to differentiate between AC and DC actuated models, the push-to-test button is color-coded. For testing the operation, a removable lock-down lever holds the test button in place. The clear plastic housing gives a view of the contacts, and there is a removable I.D. tag for labeling the circuit.
