Model-SPK
Solar Panel for Dwyer Flowmeters - 12V Power Source with 40-Day Backup
Model-SPK
From
$
1,213.55
Product Overview
- Applications Energy Management Systems, Environmental and Weather, Industrial and Manufacturing
- Controller Type PWM Regulator
- Mounting Bracket, Band Clamps and Mounting Hardware for 1-1/2 to 2" Vertical Pipe included
- Operating Temperature, Max 158 °F
- Operating Temperature, Min -40 °F
- Output Detail 17 V @ 290 mA
- Weight 4 lb

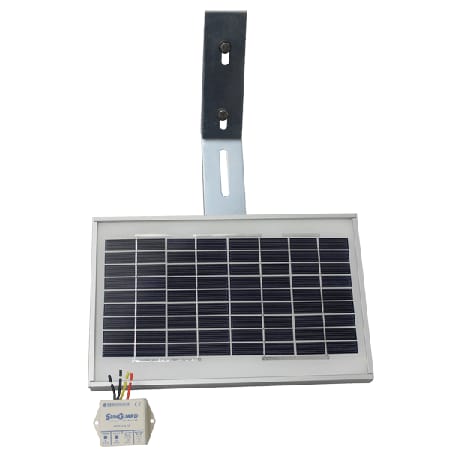

The Model SPK Solar Panel makes it possible to use Dwyer flowmeters in remote applications where a reliable source of electricity is not available or practical. The SPK is intended for use with a standard 12V, 22 to 33 amp-hour sealed lead acid battery (not included). It comes standard with a charge controller and corrossion-resistant mounting hardware. The SPK can also be used to provide up to a 40-day back-up power supply for periods of darkness.
Product Applications
- Remote metering applications where electricity is unavailable.
• Back-up power supply for uninterrupted operation.
