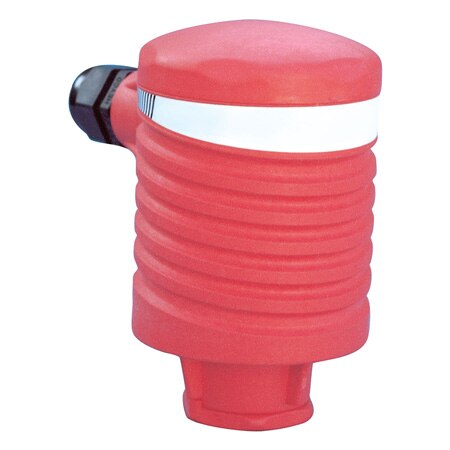

LVCN110
Single Input High or Low Relay Controller
- Mounts Directly on Sensor or OMEGA ® Track System
- Rugged NEMA-4X Enclosure
- Swivels on Base for Easy Conduit Alignment
- Adjustable Time Delay Relay
Product Overview
- Conduit Connection 1/2 in NPT
- Control Output SPDT Relay
- Diameter 2.8 in
- Enclosure Material Polypropylene
- Enclosure Ratings IP67, NEMA Type 4X
- Height 4.7 in
- Materials, Wetted Polypropylene
- Mounting Vertical
- Output Detail Isolated and sealed single pole double throw (SPDT) relay, Form C
- Power Consumption 5 W
- Process Connection Size 3/4 in
- Process Connection Type NPT Female
- Process Temperature, Max 70 °C
- Relay Voltage, Max 120 Vdc or 240 Vac
- Sensor Excitation Nominal 13.5 Vdc, 27 mA maximum
- Series ID LVCN110
- Supply Power Note Selectable, 120 or 240 Vac, 50 to 60 Hz.
- Supply Voltage 120/240 Vac
- Switch Operation Selectable, NO or NC states
- Switching Current 10 A
- Time Delay 0.15 to 60 sec
Supported Applications
The Omega LVCN series comprises general-purpose level controllers designed for pump and valve control. The single-input configuration, represented by the LVCN-110 model, is configured for high or low level alarm systems. The dual-input variant (LVCN-20) supports automatic filling or emptying operations between two sensor inputs.
Operating Conditions & Performance
The controller operates within an ambient temperature range of -40° to 158°F (-40° to 70°C). Power is supplied via a selectable input of 120 or 240 VAC, 50 to 60 Hz, with maximum consumption rated at 5 watts. The unit provides an isolated and sealed single pole double throw (SPDT) relay output in Form C configuration.
Relay switching capabilities include a selectable NO or NC state, supporting up to 120 VDC or 240 VAC with a maximum switched current of 10 amps. An adjustable time delay feature ranges from 0.15 to 60 seconds before the relay responds, assisting in pump and valve protection.
Electrical & Sensor Interface
- Sensor Supply: Nominal 13.5 VDC @ 27 mA maximum
- Contact Rating (Series Envelope): Up to 250 VAC, 16A resistive load per family documentation; LVCN-110 datasheet specifies 10 amps max switched current.
- Status Indication: LED indicators for sensor, relay, and power status
Configuration Options
The series offers configurable options across mounting, approvals, and alarm features. The LVCN-100 variant includes an optional flashing amber Xenon tube alarm (included with the model), operating at 1 flash per second with a strobe life of 10M cycles.
Mounting & Enclosure
- Housing Material: Reinforced polypropylene (PP), flame retardant; LVCN-20 series enclosures also utilize polycarbonate.
- Enclosure Rating: NEMA 4X (IP65)
- Mounting Connection: ¾" NPT
- Conduit Entrance: Single, ½" NPT
- Mechanical Adjustment: 300° swivel base for conduit alignment
Sensor Compatibility & Options
The controller mounts directly to a single sensor or an Omega track system. Level track mounting systems are compatible with LVU-150, LVC-100, and LVV-110 sensors (sold separately). CE approval variants are available by adding the "-CE" suffix.
Key Product Differences
The series distinguishes between single-input and dual-input architectures. The LVCN-110 is a single sensor controller offering high or low level control with an adjustable time delay (0 to 60 seconds) and invert switch functionality.
Model Distinctions
- LVCN-20: Dual input automatic fill or empty relay controller featuring a latching SPDT relay output. It accepts one or two level switches as inputs.
- LVCN-100: Single sensor controller with an integrated flashing alarm (Xenon tube).
Note: The LVCN-20 series features a latching relay output, whereas the standard single-input models utilize non-latched SPDT relays. Dimensions for the LVCN-110 and LVCN-20 are 7.1 dia. x 11.9 cm H (2.8" x 4.7"). The LVCN-100 series dimensions differ, with a height of 6.4" (162mm).
