Series-BT15S-BT20S

Supported Applications

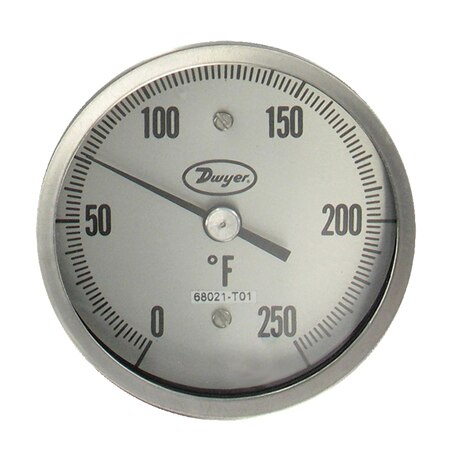

The Dwyer Series BT15S/BT20S Sanitary Bimetal Thermometers are designed for sanitary process applications in the food, beverage, and pharmaceutical industries. These instruments provide direct connection to a 1-1/2" or 2" sanitary connection.

Operating Conditions & Performance

The series offers temperature measurement ranges of -40 to 160°F, 0 to 250°F, 50 to 300°F, and 50 to 550°F. Accuracy is specified as ±1% with a resolution of 2° (depending on range). The thermometers are rated for process temperature limits up to 800°F (427°C) at the stem and 200°F (93°C) at the head.

Configuration Options

The series is configurable across dial sizes, clamp dimensions, stem lengths, and connection orientations. Key specifications include:

• Dial Size: 3" or 5" with a glass lens.
• Housing Material: 316 SS.
• Wetted Materials: 316/316L polished SS.
• Process Connection: Standard configurations feature a 1-1/2" or 2" sanitary clamp; 1.5" clamp sizes are also available.
• Stem Lengths: Available in various lengths, including documented options of 2.5" and 4.5".
• Connection Orientation: Back connection is standard; for bottom connection, add 'B' to the end of the model number.

The instruments feature an external reset mechanism that allows field calibration.

Key Product Differences

Variants within the Series BT15S/BT20S are distinguished by dial size, clamp size, stem length, and temperature range. The model number guide follows the format: BT15S/BT20S - <Dial Size> - <Clamp Size> - <Stem Length> - <Range>. For example, models such as BT20S32541 and BT20S52541 represent specific combinations of these parameters. The series includes both 3" dial back connection variants (e.g., BT20S325xx) and 5" dial back connection variants (e.g., BT20S525xx).
