PUP-Room

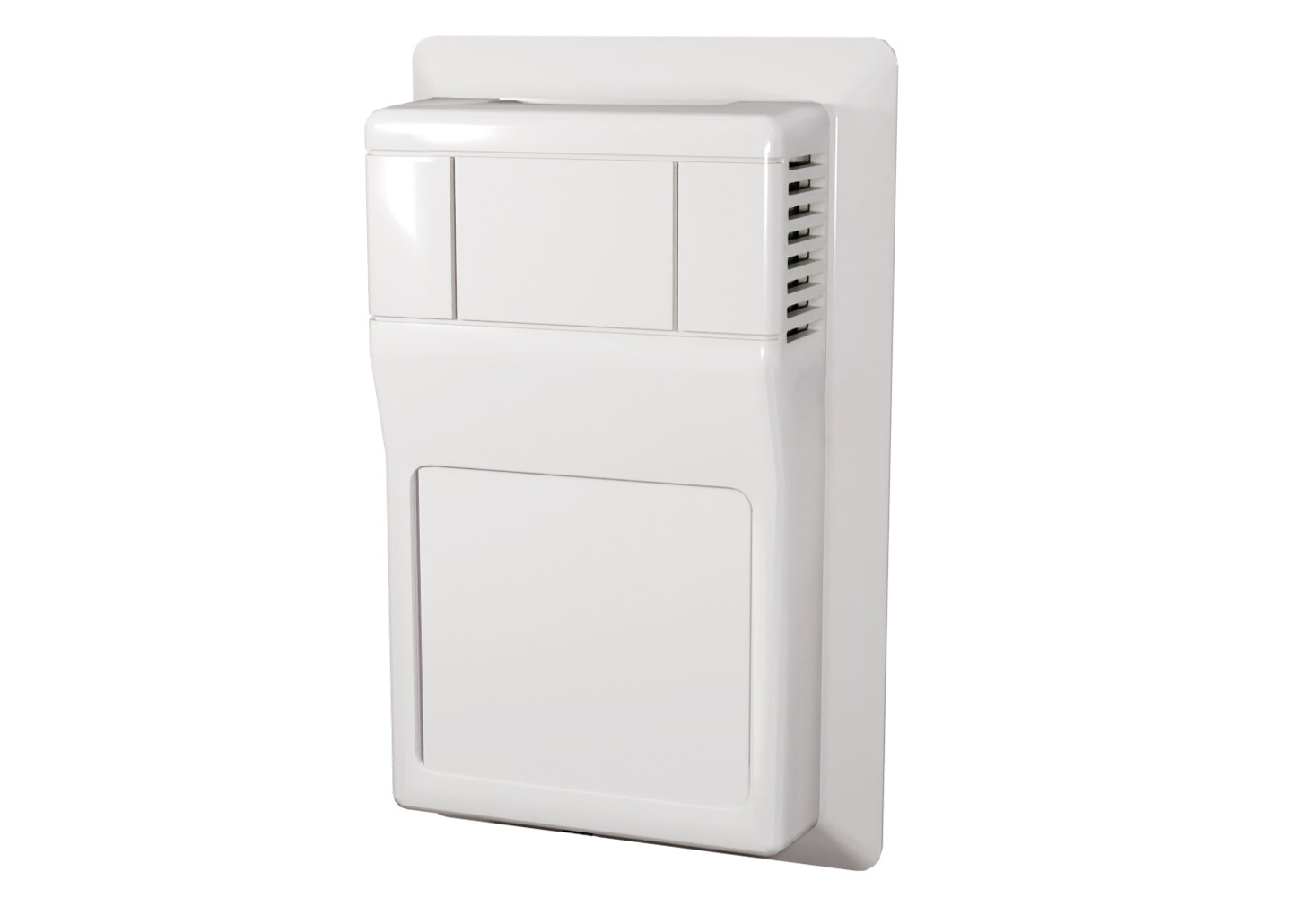

Room Pickup Ports
- Clean indoor pressure reference: ACI Room Pickup Ports provide an attractive wall-mounted building static pressure reference point for indoor spaces.
- Designed for low differential pressure monitoring: Works with ACI DLP, MLP, or other low differential pressure transmitters to support accurate and reliable pressure readings.
- Ideal for critical indoor environments: Suitable for commercial buildings, offices, clean rooms, isolation rooms, hospitals, laboratories, and schools.
- Two enclosure options: Available as A/R-PUP in beige or A/R2-PUP in white to better match room finishes and project requirements.
- Fast response installation: Designed for short, clean tubing runs to help improve response time and reduce issues caused by dirt, dust, or condensation.
- Simple tubing connection: Barbed fitting accepts 3/16" ID flexible poly tubing, with optional 10 ft, 20 ft, and 100 ft tubing kits available.
- Durable room enclosure: ABS housing with UL-94 HB flammability rating supports dependable use in indoor building automation applications.
- Reliable pressure port construction: Includes a nickel-plated brass filter rated up to 150 psi and a foam pad that seals the wall opening during installation.
Product Overview
- Enclosure Ratings UL94-HB
- Filter Nickel Plated Brass
- Materials Polyethylene
- Media Compatibility Clean dry air / inert gas, Inert / non-reactive gases, Non-Corrosive Dry Gases
- Mounting Orientation Wall Mount
- Operating Temperature, Max 140 °F
- Operating Temperature, Min 35 °F
- Pipe Connection Note Barbed tting accepts 3/16” ID exible Poly tubing
- Measurement Pressure, Max 150 psi
- Series ID PUP-Room
- Storage Temperature, Max 140 °F
- Storage Temperature, Min -40 °F
