RH-Combo-Room-Platinum-RTD

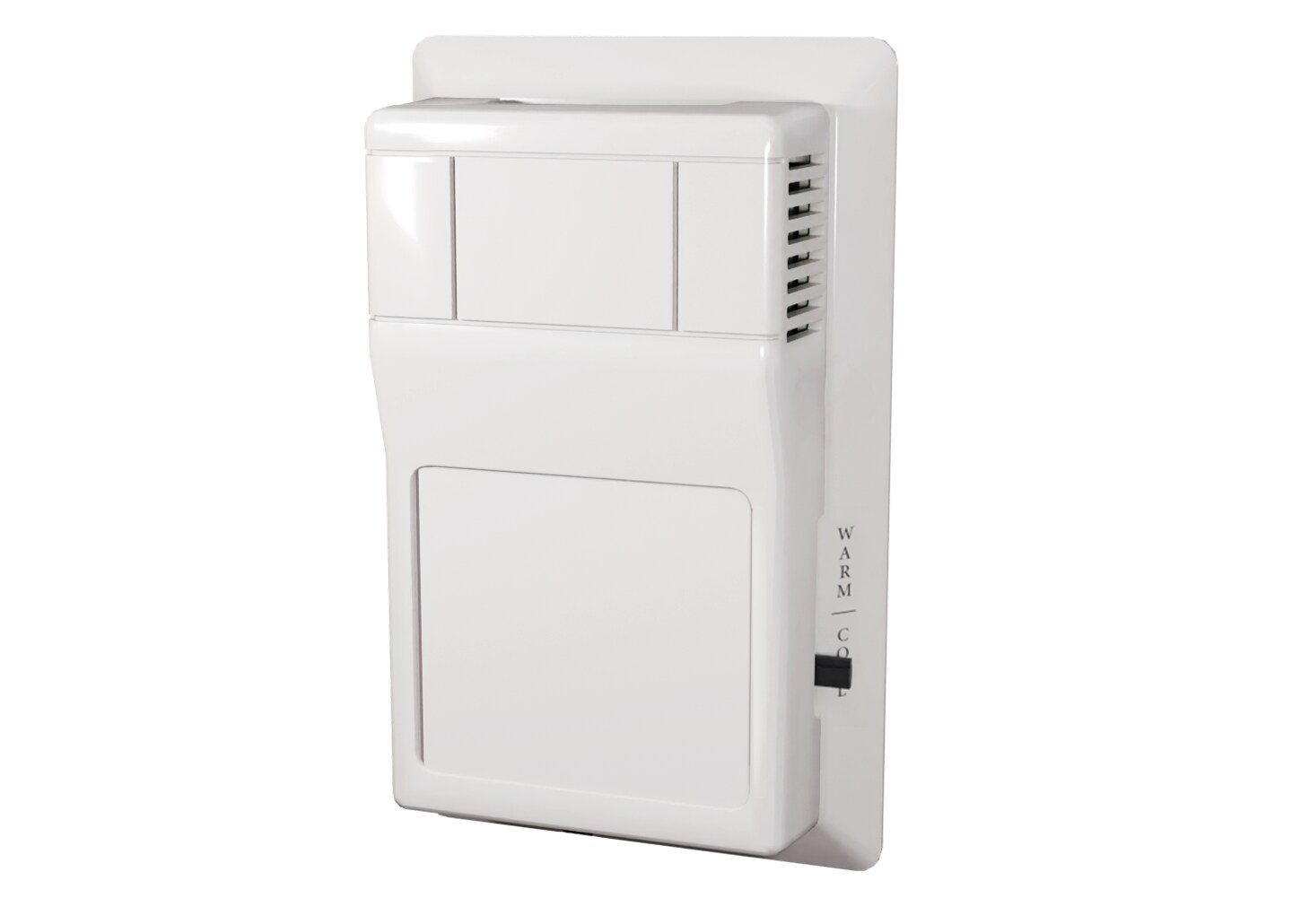

Relative Humidity Room with Platinum RTD Sensor
- Humidification
- Dehumidification
- Monitoring Indoor Space Humidity
- Clean Rooms
- Hospitals
- Process Control
- Laboratories
- Museums
- Schools
- Office Buildings
- Data Centers
- ESD (Anti-Static) Control
RH-Combo-Room-Platinum-RTD
From
$
387.00
Product Overview
- Applications Air and HVAC, Art and Museums, Building and Maintenance, Electronic Equipment, Environmental Monitoring, Medical, Process Automation and Control
- Display Type N/A
- Electrical Connection Screw Terminal
- Electrical Output 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc
- Enclosure Material ABS Plastic
- Filter Hydrophobic Filter
- Height 4.5 in
- Length 2.75 in
- Current, Max 8 mA
- Measurement Type Humidity
- Operating Temperature, Max 60 °C
- Operating Temperature, Min 1.5 °C
- Output Detail 0-5 VDC: 12 - 40 VDC / 18 - 28 VAC
- Relative Humidity 0 to 95%
- Relative Humidity Sensor Type Capacitive with Hydrophobic Filter
- Repeatability 0.5% RH,± 0.05°C
- Response Time 20 Seconds Typical
- Sensitivity 0.1% RH
- Series ID RH-Combo-Room-Platinum-RTD
- Stability RH Stability: Less than 2% drift / 5 years,Platinum RTD Stability: +/-0.03% after 1000 Hours @ 572°F (300°C)
- Storage Temperature, Max 65 °C
- Storage Temperature, Min -40 °C
- Supply Power Type DC
- Supply Voltage 24 Vdc
- Tightening Torque 4.43 to 5.31 lb-in (0.5 to 0.6 Nm)
- Weight 0.17 lb
- Width 1.12 in
- Wire Gauge 26 to 16 AWG
