RH-Combo-Room-Nickel

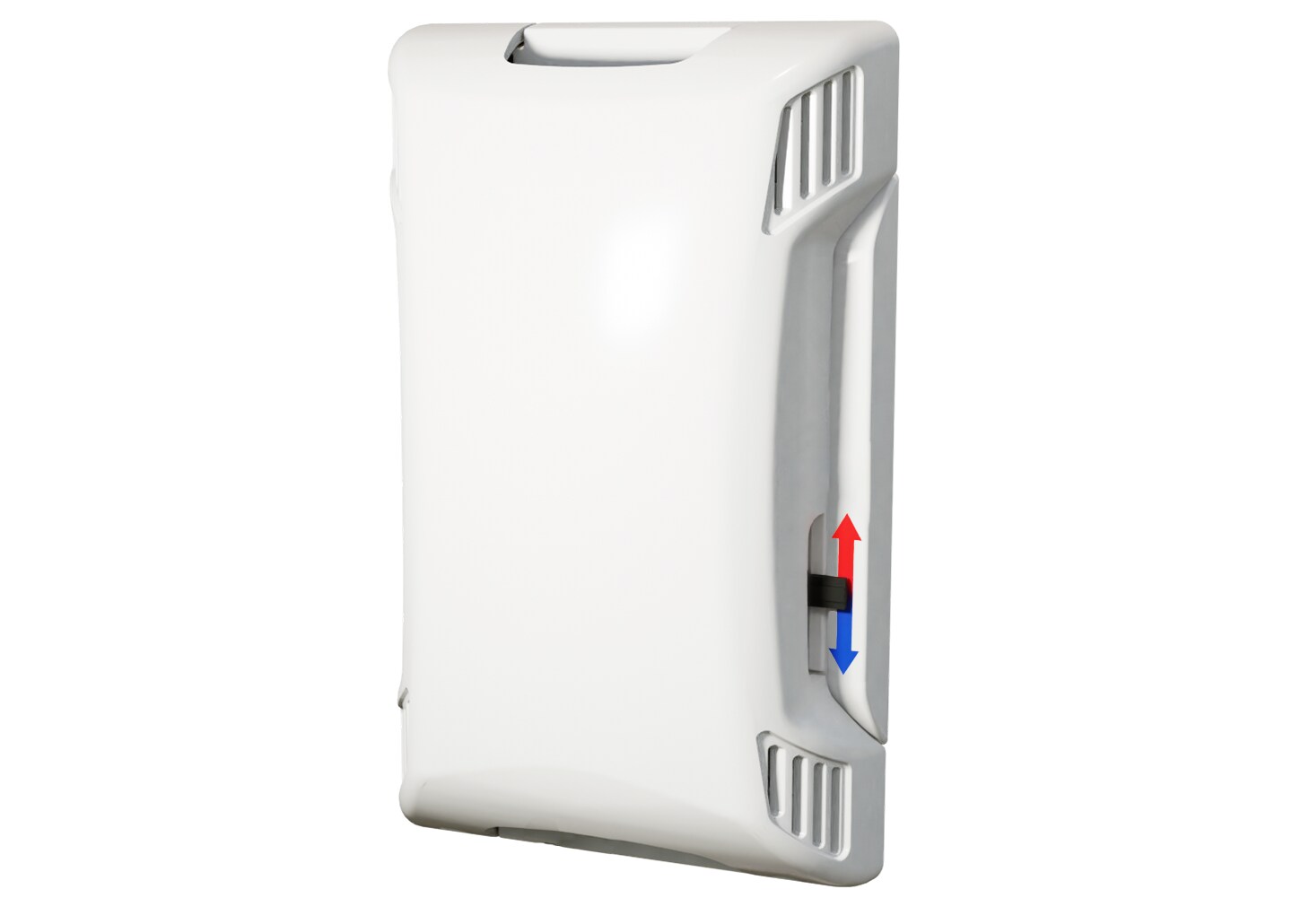

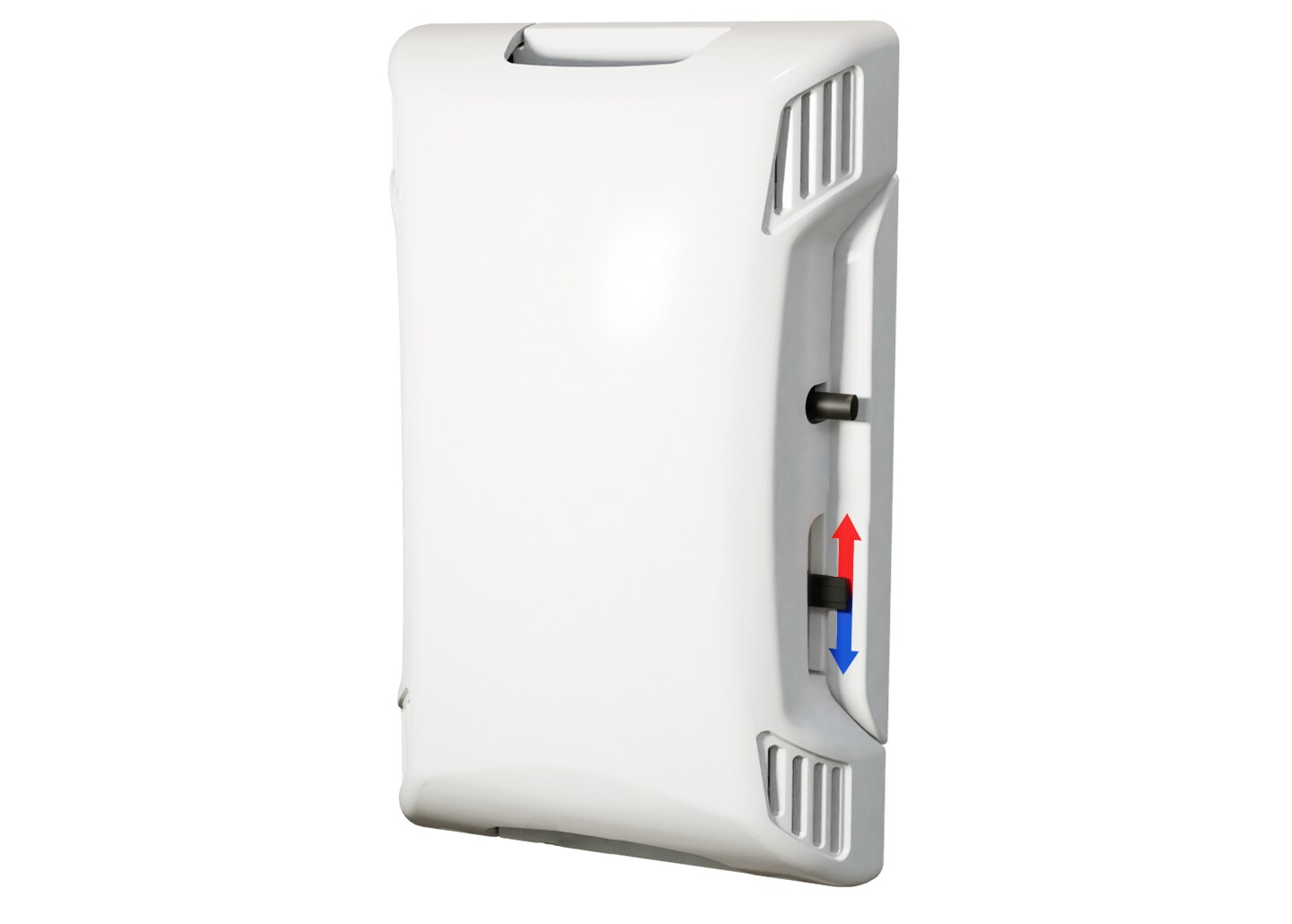

Relative Humidity Room with Nickle RTD Sensor

From ^$ 387.00

Shop Models

10 Variations available

Data Sheet

Product Overview

Applications Air and HVAC, Art and Museums, Building and Maintenance, Electronic Equipment, Environmental Monitoring, Medical, Process Automation and Control
Display Type N/A
Electrical Connection Screw Terminal
Electrical Output 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc
Enclosure Material ABS Plastic
Filter Hydrophobic Filter
Height 4.5 in
Length 2.75 in
Current, Max 8 mA
Measurement Type Humidity
Operating Temperature, Max 60 °C
Operating Temperature, Min 1.5 °C
Output Detail 0-5 VDC: 12 - 40 VDC / 18 - 28 VAC
Relative Humidity 0 to 95%
Relative Humidity Sensor Type Capacitive with Hydrophobic Filter
Repeatability 0.5% RH,± 0.05°C
Response Time 20 Seconds Typical
Sensitivity 0.1% RH
Series ID RH-Combo-Room-Nickel
Stability RH Stability: Less than 2% drift / 5 years, Nickel RTD Sensor Accuracy: 32°F (0°C): +/-0.72°F (0.4°F); 70°F (21.1°C): +/-0.34°F (0.17°C); 130°F (54.4°C): +/-1.00°F (0.56°C)
Storage Temperature, Max 65 °C
Storage Temperature, Min -40 °C
Supply Power Type DC
Supply Voltage 24 Vdc
Temperature Sensor Type Nickle RTD
Tightening Torque 4.43 to 5.31 lb-in (0.5 to 0.6 Nm)
Weight 0.17 lb
Width 1.12 in
Wire Gauge 26 to 16 AWG
