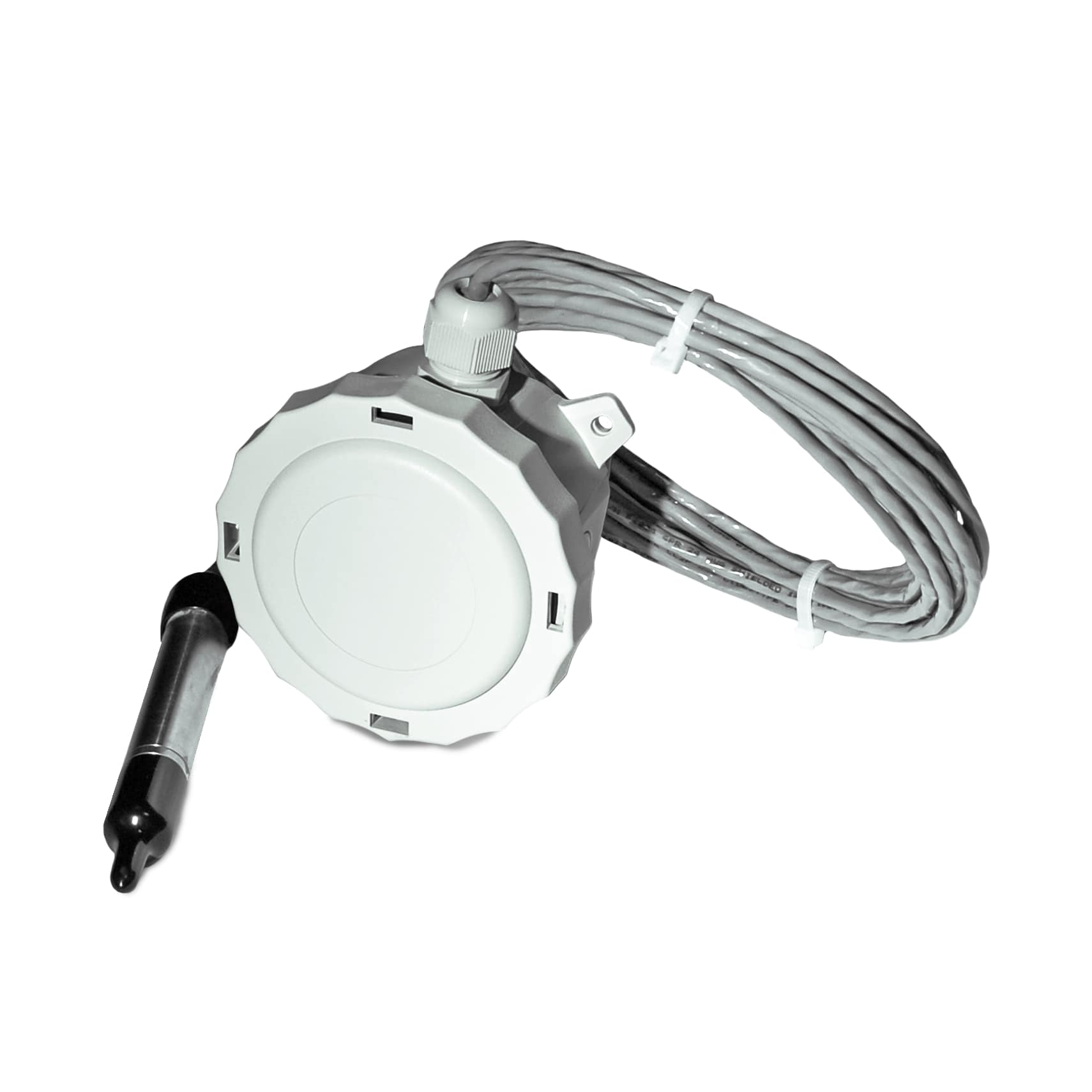

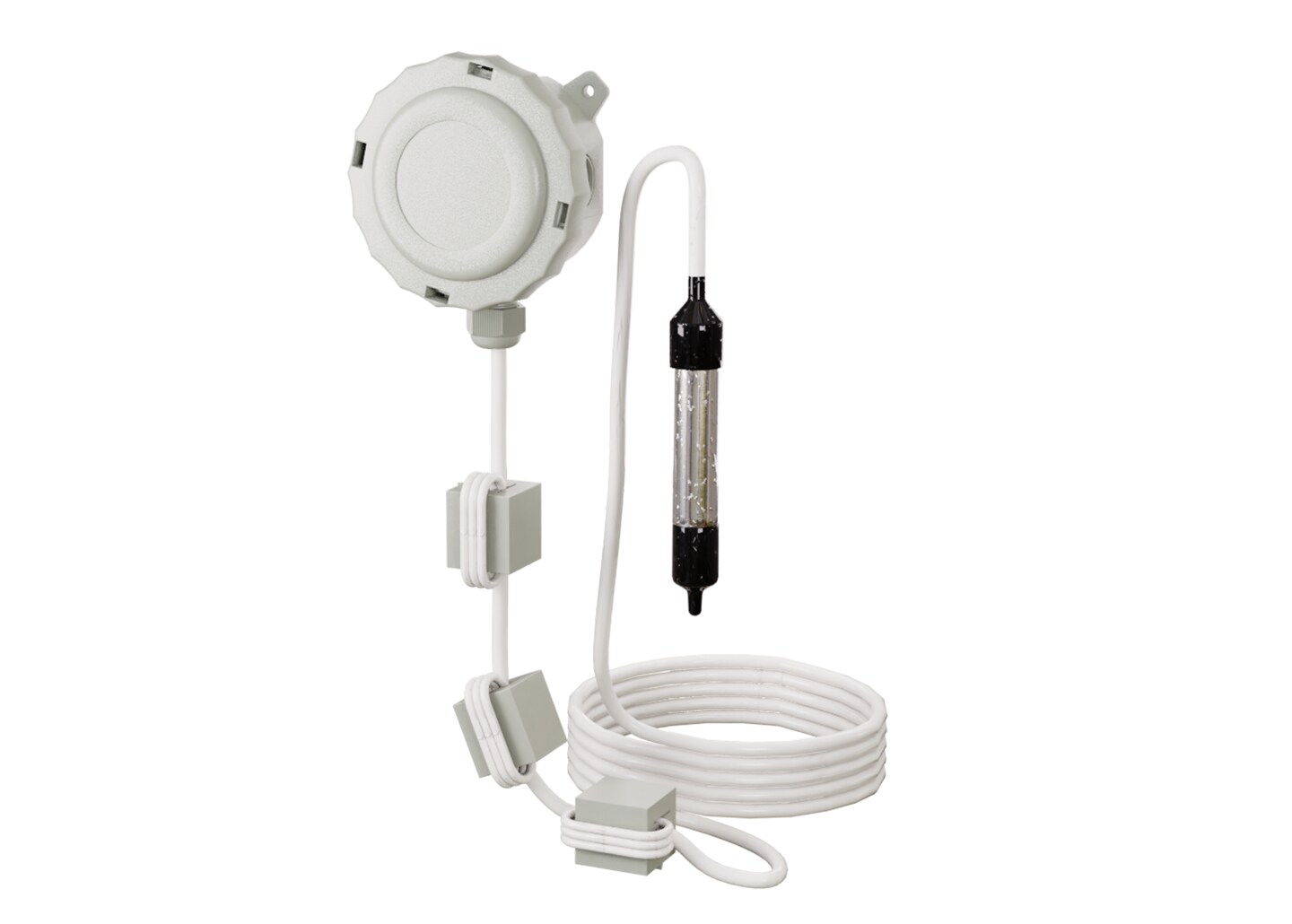

RH-Remote-Probe
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| Applications | Environmental and Weather, Environmental Monitoring, Laboratories and Scientific, Process Automation and Control |
| Cable Temperature, Max | 75 °C |
| Cable Temperature, Min | 0 °C |
| Current, Max | 8 mA |
| Electrical Connection | Screw Terminal |
| Electrical Output | 4 to 20 mA |
| Enclosure Material | ABS Plastic |
| Enclosure Ratings | UL94-5VB |
| Filter | Hydrophobic Filter |
| Height | 2.12 in |
| Length | 4.3 in |
| Measurement Type | Humidity |
| Mounting Orientation | Remote Probe |
| Operating Temperature, Max | 60 °C |
| Operating Temperature, Min | -25 °C |
| Output Detail | 0-5 VDC: 12 - 40 VDC / 18 - 28 VAC |
| Probe Diameter | 0.75 in |
| Probe Length | 5.12 in |
| Relative Humidity | 10 to 95% |
| Relative Humidity Sensor Type | Capacitive with Hydrophobic Filter |
| Repeatability | 0.5% RH,± 0.05°C |
| Response Time | 20 Seconds Typical |
| Sensitivity | 0.1% RH |
| Series ID | RH-Remote-Probe |
| Stability | RH Stability: Less than 2% drift / 5 years |
| Storage Temperature, Max | 65 °C |
| Storage Temperature, Min | -25 °C |
| Supply Power Type | DC |
| Supply Voltage | 24 Vdc |
| Tightening Torque | 4.43 to 5.31 lb-in (0.5 to 0.6 Nm) |
| Weight | 1.2 lb |
| Width | 4.3 in |
| Wire Gauge | 26 to 16 AWG |
| See All Specs | |
