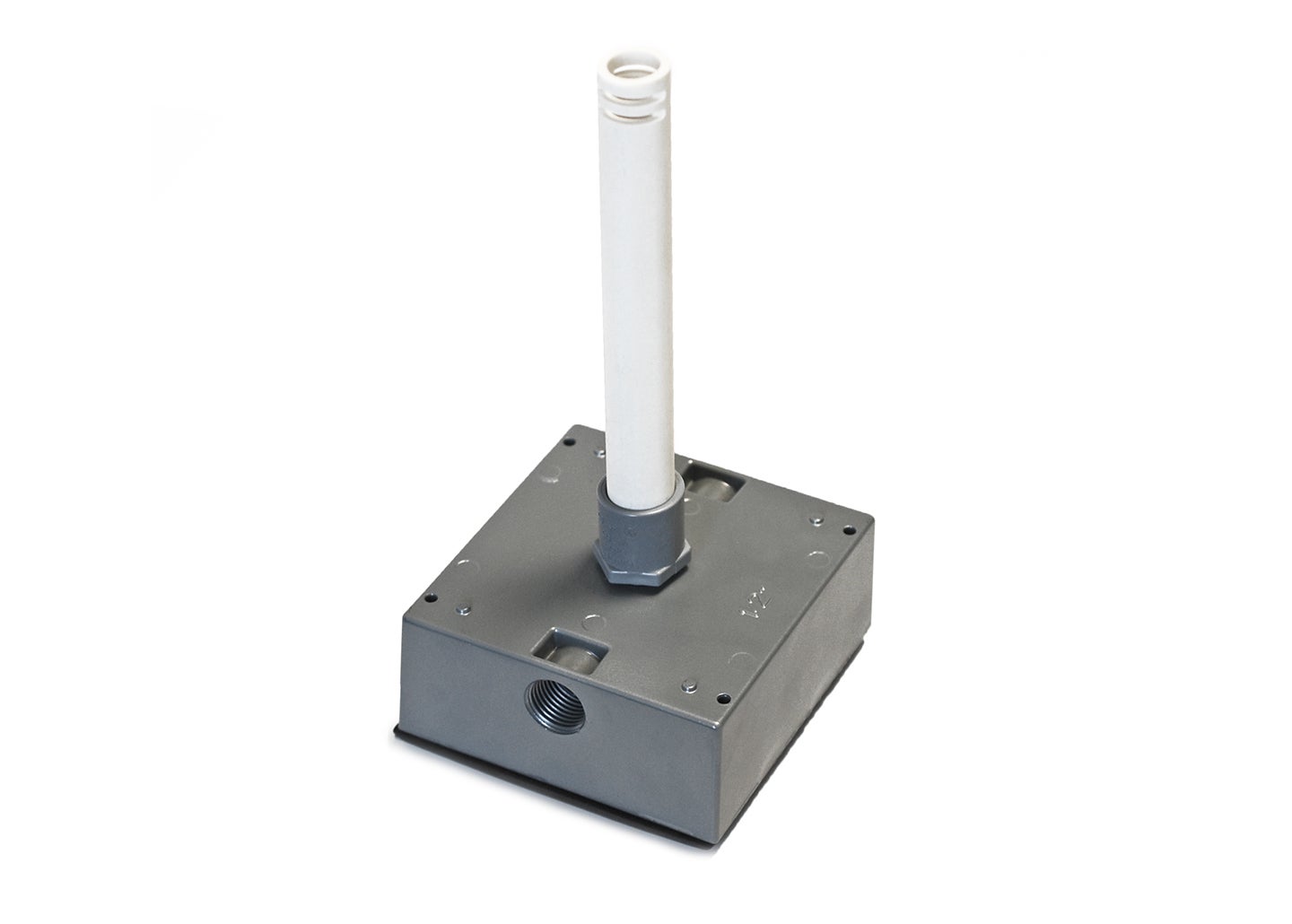

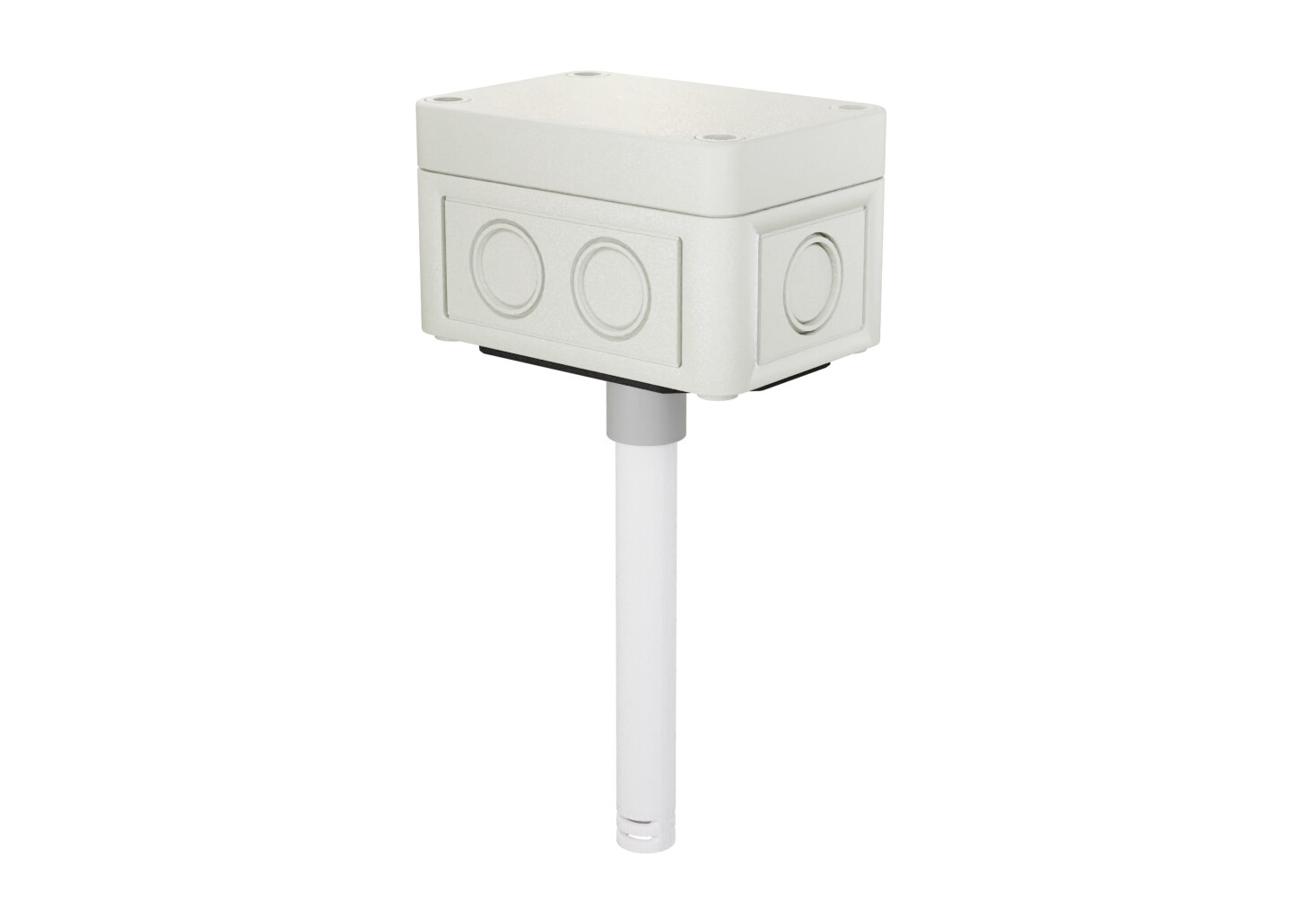

RH-Combo-Duct-Temp-Transmitter
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| Applications | Air and HVAC, Building and Maintenance, Medical, Process Automation and Control |
| Calibration Option | N/A |
| Current, Max | 8 mA |
| Electrical Connection | Screw Terminal |
| Filter | Hydrophobic Filter |
| Measurement Type | Humidity, Temperature |
| Mounting Orientation | Duct Mount |
| Operating Temperature, Max | 60 °C |
| Operating Temperature, Min | -40 °C |
| Output Detail | 0-5 VDC: 12 - 40 VDC / 18 - 28 VAC |
| Probe Diameter | 0.75 in |
| Probe Length | 7.76 in |
| Relative Humidity | 10 to 95% |
| Relative Humidity Sensor Type | Capacitive with Hydrophobic Filter |
| Repeatability | 0.5% RH,± 0.05°C |
| Response Time | 20 Seconds Typical |
| Sensitivity | 0.1% RH |
| Series ID | RH-Combo-Duct-Temp-Transmitter |
| Stability | RH Stability: Less than 2% drift / 5 years, Platinum RTD Sensor Stability: +/-0.03% after 1000 Hours @ 572°F (300°C) |
| Storage Temperature, Max | 65 °C |
| Storage Temperature, Min | -40 °C |
| Supply Power Type | DC |
| Supply Voltage | 24 Vdc |
| Tightening Torque | 4.43 to 5.31 lb-in (0.5 to 0.6 Nm) |
| Wire Gauge | 26 to 16 AWG |
| See All Specs | |
