Series-XD33A

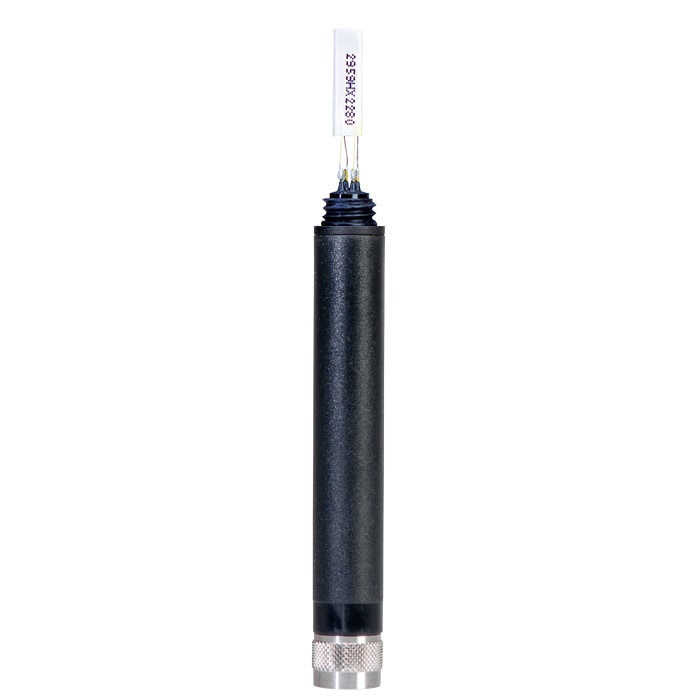

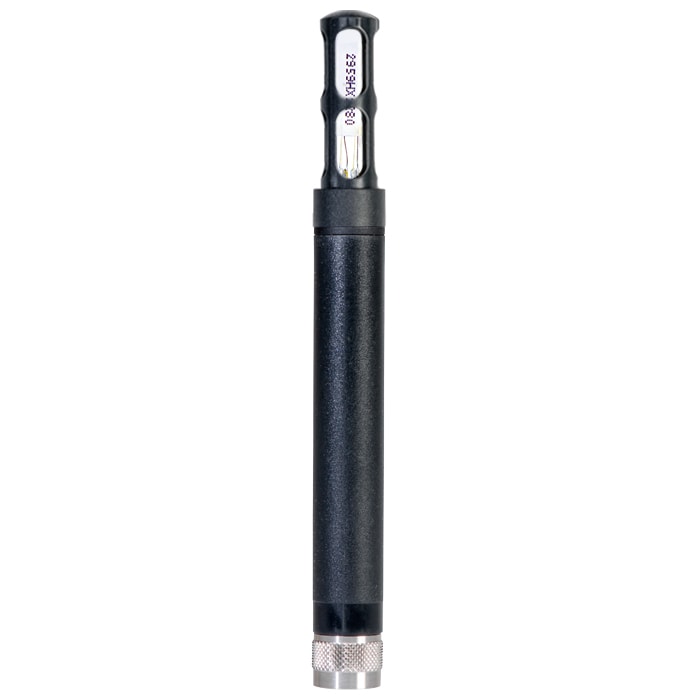

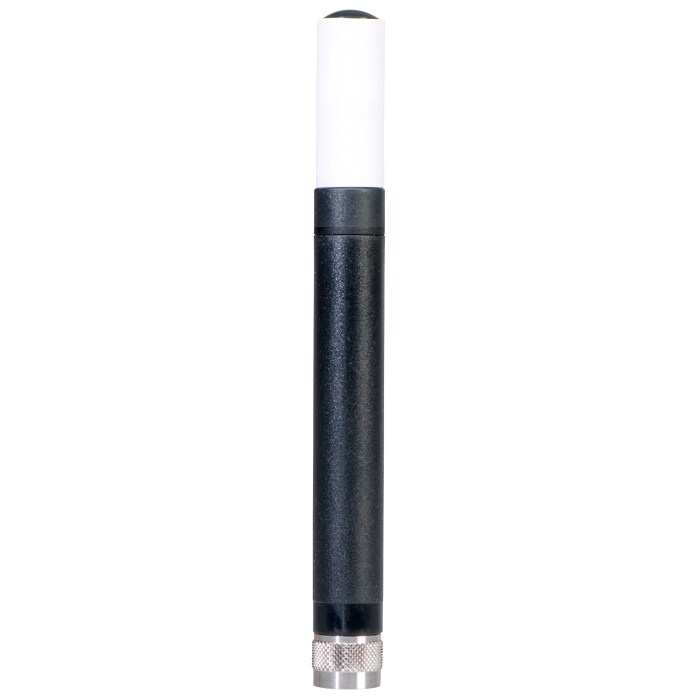

Relative Humidity and Temperature Probe with Analog and Digital Output
- Accuracy ± 0.8 %rh / ±0.2 K at 23 °C
- Range of applications electronics. -40 to 85 °C / 0 to 100 %rh
- Not compatible with ROTRONIC Transmitters, Dataloggers and active cables
Series-XD33A
From
$
803.00
Product Overview
- Accuracy ± 0.8 % RH
- Accuracy Detail ±0.8%rh at 23°C,±0.2°C at 23 °C
- Applications Air and HVAC, Electronic Equipment, Filter Monitoring, Flow Measurement, Level Monitoring and Control
- Electrical Output 0 to 1 Vdc
- Enclosure Ratings IP65
- Housing Material Polycarbonate
- Length 140.3 mm
- Measurement Range Note 0 to 100% RH,-40 to 85 °C
- Output Detail Humidity: 0 to 100% RH, Temperature:-40 to 60°C
- Probe Style Interchangeable Probe
- Sensor Type Rotronic HygroMer HT-1,PT100 RTD, IEC 751 1/3 Class B
- Series ID Series-XD33A
- Software Version HygroSoft
- Supply Power Type AC/DC
- Supply Voltage 5 to 24 Vdc, 5 to 16 Vac
- Weight 0.044 lb
- Width 15 mm
The Temperature and humidity probes (Series-XD33A) supports confident decisions by helping you keep an eye on humidity and dew point in industrial and commercial environments. It is a good choice for teams that value repeatability and clarity. Its design focuses on reliable operation and simple handling. It supports product quality by helping you keep dryness under control.
