Series-HP-GTS

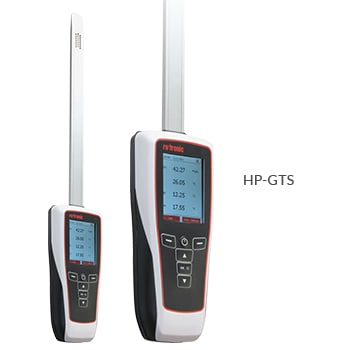

Relative Humidity and Temperature Handheld Device for Paper and Cardboard Stacks
- Fixed sword Probe for Humidity and Temperature measurement
- Datalogging and Spot Checks
- Trend Indicators
Series-HP-GTS
From
$
2,380.00
Product Overview
- Accuracy ± 2.0 % RH
- Accuracy Detail ±2 %rH at 23°C,±0.3 °C at 23°C
- Battery Size and Type 3.7V Li-ion
- Data Interface USB
- Display Resolution 0.01
- Display Type LCD
- Enclosure Ratings IP65
- Height 30.9 mm
- Housing Material ABS ,TPR
- Length 408.5 mm
- Measurement Range Note 0 to 100% RH, non condensing,-10 to 60 °C
- Operating Temperature, Max 60 °C
- Operating Temperature, Min -10 °C
- Sensor Type Rotronic HygroMer IN-1, PT100 1/3 Class B
- Series ID Series-HP-GTS
- Software Version HygroSoft
- Supply Power Type Battery
- Weight 0.496 lb
- Width 65.2 mm
Supported Applications
The Rotronic HP-GTS is a handheld device designed for measuring relative humidity and temperature in stacks of paper. As part of the HP3x-Series, it functions as a multifunctional instrument that measures, displays, and logs environmental parameters including calculated psychrometric values.
Operating Conditions & Performance
The series operates within an application range of -10...60 °C / 0...100 %rh (non-condensing). Accuracy at 23 °C is specified as ±2 %rh / ±0.3 °K for the HP-GTS model with its fixed probe. The device features a ROTRONIC HYGROMER IN-1 humidity sensor and supports spot measurements alongside programmable logging intervals from 1 s...24 h.
Memory capacity is rated at 8 x 8000 data points, supporting MIN / MAX / AVG functions. The display refresh rate is typically 1 s. Power is supplied by a rechargeable lithium polymer battery (3.7 V, 1000 mAh), providing up to 48 h of operation with the screen off and logging every 30 s, or 10 h with the screen always on.
Configuration Options
The HP-GTS is configured as a handheld unit with an integrated fixed probe. Key configurable features and options include:
- Housing & Protection: ABS, TPR housing material; IP65 protection class for the measuring instrument.
- Data Management: Programmable logging interval (1 s...24 h); 8 x 8000 data point memory capacity with MIN / MAX / AVG calculations.
- Psychrometric Calculations: Dew/Frost point (Dp/Fp), Wet bulb temperature (Tw), Enthalpy (H), Vapor concentration (Dv), Specific humidity (Q), Mixing ratio by weight (R), Vapor pressure (E), Saturation vapor pressure (Ew), and Saturation vapor density (SVD).
- Connectivity & Software: USB-C to USB-A interface compatible with HygroSoft software for configuration, data readout, firmware updates, and time synchronization.
- Alarms & Display: Graphical display with adjustable visual and audible alarms; spot measurements remain possible even when the main menu is inaccessible during logging.
The device dimensions are 408 x 63 x 30 mm, weighing 225 g. The probe material is aluminum. Standard delivery includes a soft case, USB-C to USB-A cable (for computer connection and battery charging), and the free HygroSoft software.
Key Product Differences
The HP-GTS differs from other models in the HP3x-Series by its specific application focus on paper stacks and its integrated fixed probe design. While the HP31 also features a fixed probe, the HP32 requires HC2 or HC2A-S probes to be ordered separately. The HP-GTS is distinguished by its longer overall dimension (408 mm vs 160 mm for other series members) and specific accuracy rating of ±2 %rh / ±0.3 °K at 23 °C, matching the HP31 but differing from the HC2 probe-dependent accuracy of the HP32.
