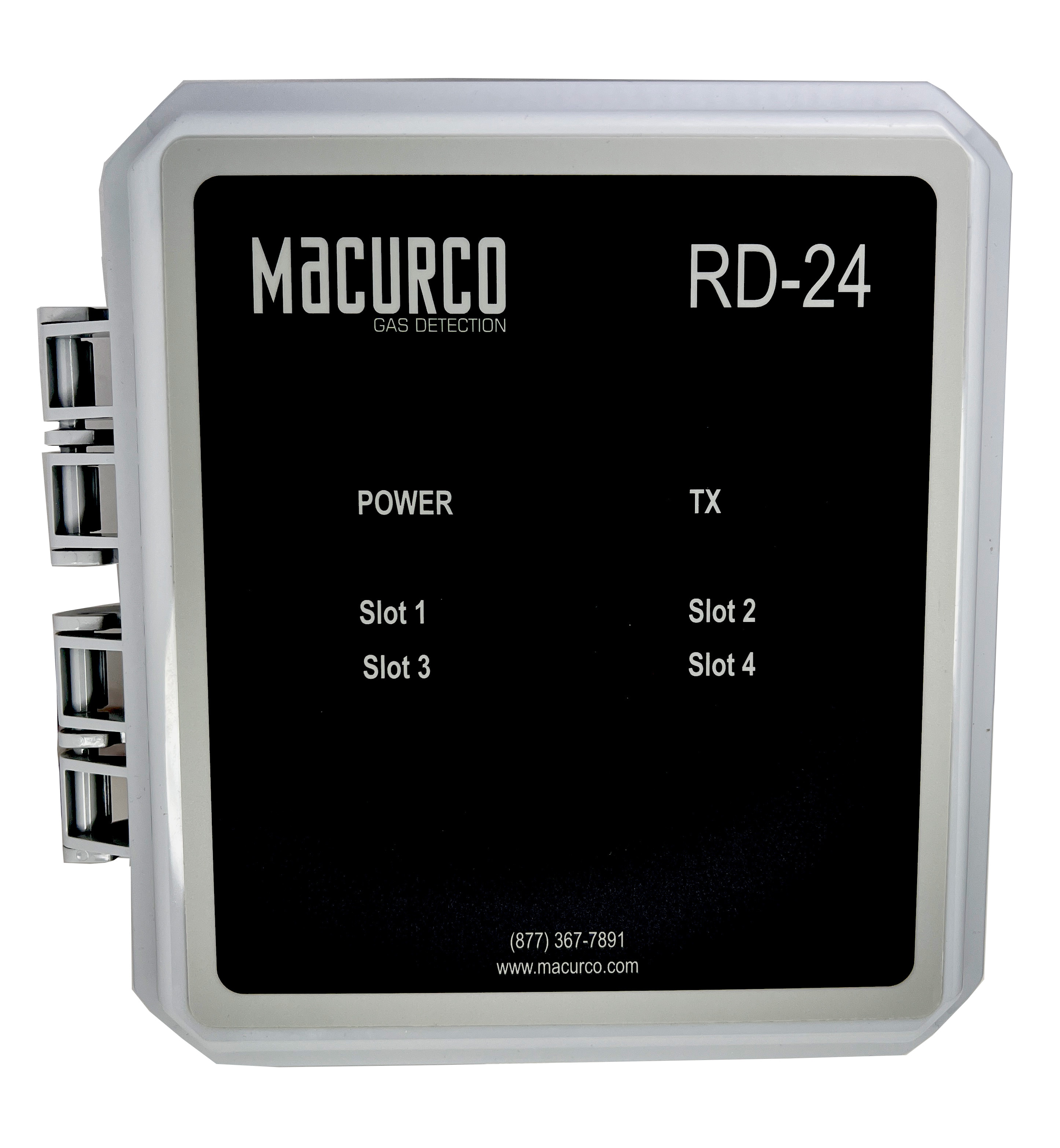

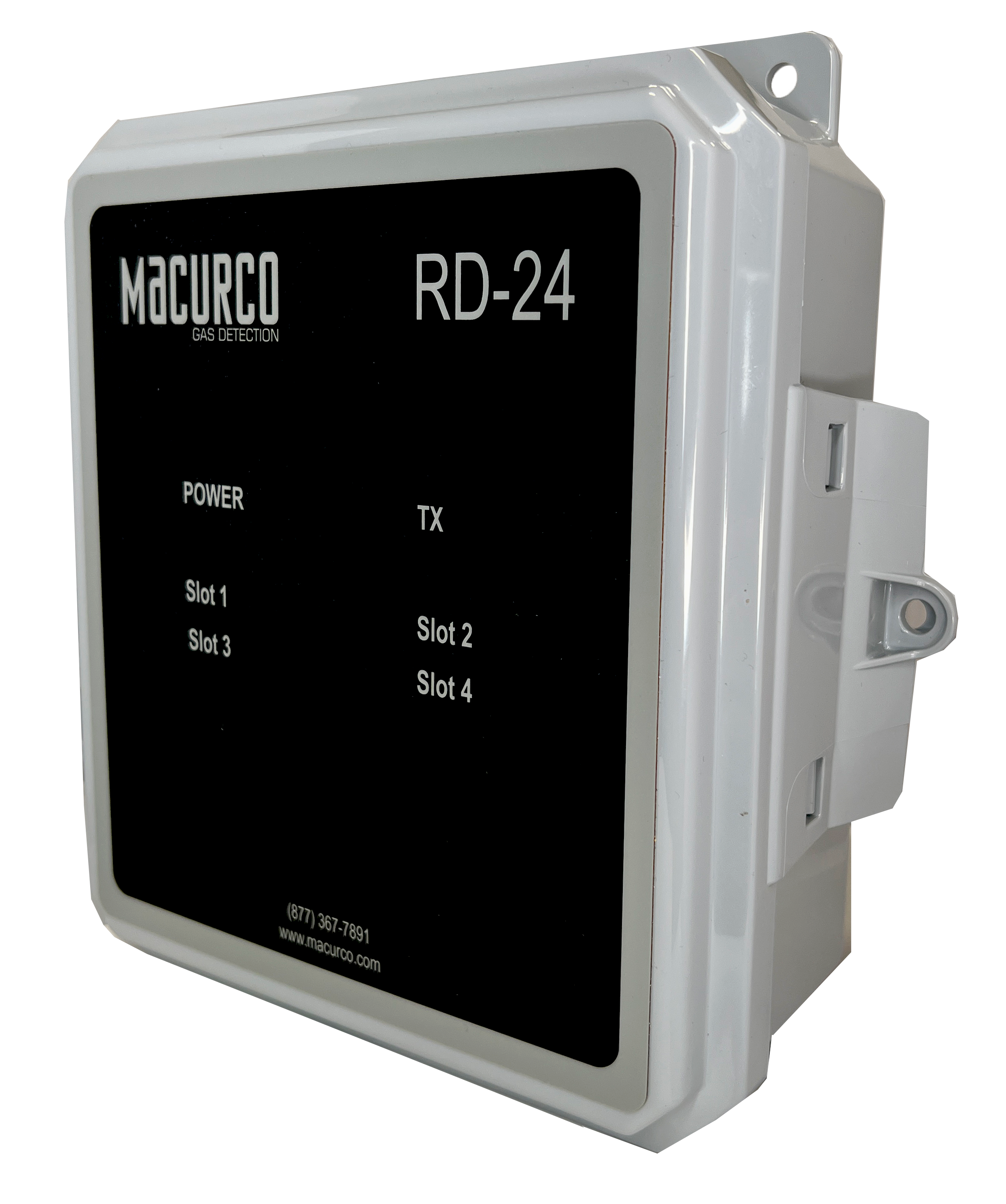

RD-24 Remote Driver

(0)

Modbus addressable remote device: relays, analog output, analog input
24 VDC input

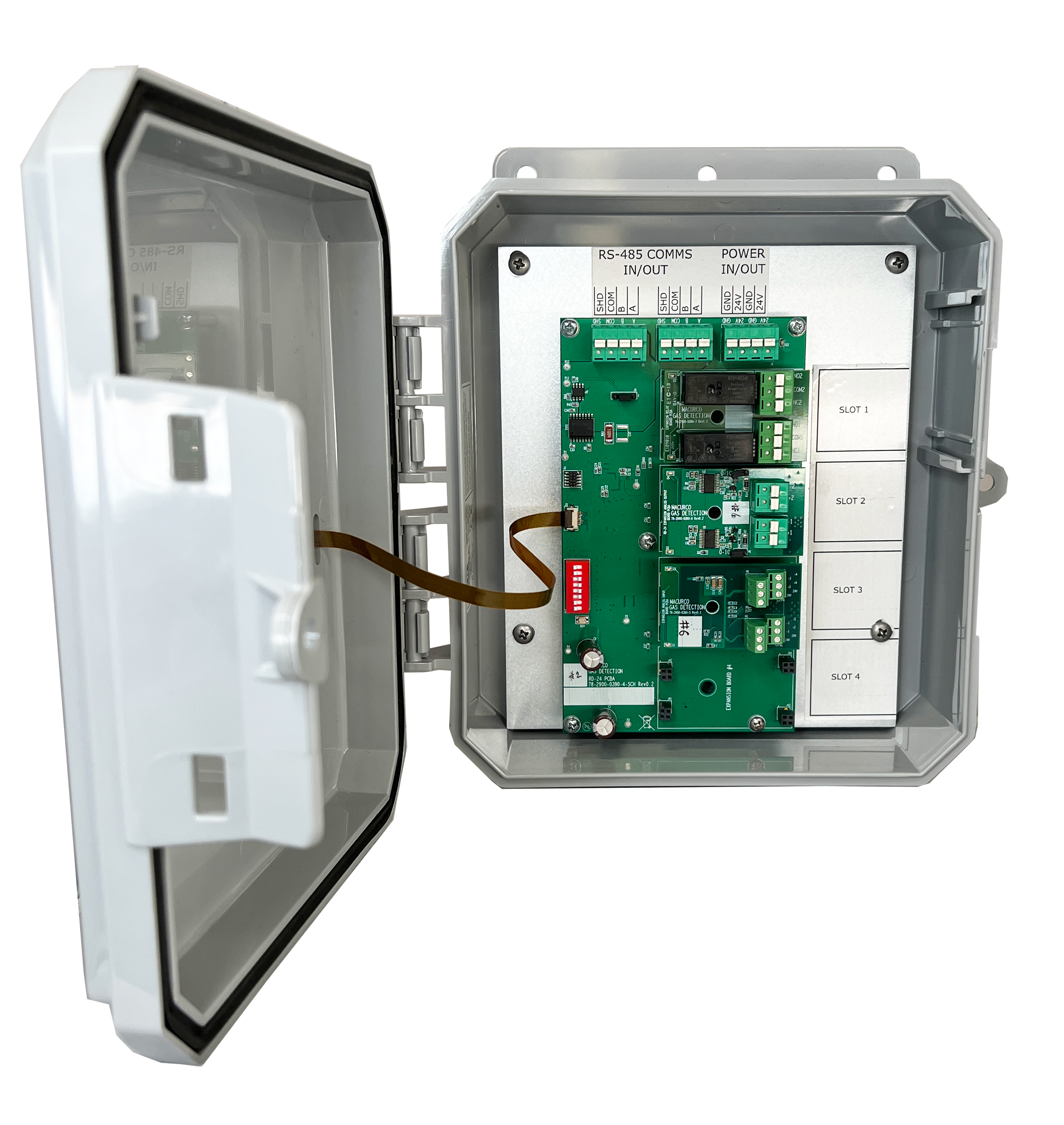

4 expansion slots for expansion boards: up to 8 relays, 8 analog outputs, or 12 analog inputs
Status Indicators (LED): Power, communication, Slot 1-4
Wall mount NEMA4X enclosure
Compatible with the Macurco DVP-1200 control panel
Compatitble with DVP-1200
Meets the Uniform Building Code and OSHA 50ppm CO requirements. (Enclosed Parking Garages)
Made in America

See Product Overview

RD-24-Series

From ^$ 1,300.00

Shop Models

1 Variations available

See all series options below

Data Sheet

Product Overview

Accessory Mounting Wall Mount
Additional Features 4 expansion slots for expansion boards: up to 8 relays, 8 analog outputs, or 12 analog inputs
Alarm Note Modbus addressable relay; supports up to 8 relays, 8 analog outputs, or 12 analog inputs via 4 expansion slots. Can be used to engage or disengage equipment such as fans, louvers, horns, strobes, and gas valves.
Applications Building and Maintenance, Commercial and Industrial, HVAC, Laboratories, Process Automation and Control
Compatibility Compatible with the Macurco DVP-1200 control panel
Compliance Note Meets the Uniform Building Code and OSHA 50ppm CO requirements. (Enclosed Parking Garages)
Control Output 2 Expansion Board Analog Outputs, 2 SPDT Expansion Board Relays
Current Output 4 to 20 mA
Data Interface Modbus
Data Interface Note Modbus: The device supports Modbus communication to control multiple inputs and outputs based on the application, and the unit can be wired in a daisy-chain configuration on the gas detector loop to reduce cabling requirements and allow for mounting flexibility.
Display Note Status LED indicators for power, communication, and individual slot activity (Slots 1-4)
Electrical Output Note 4 expansion slots for up to 8 relays, 8 analog outputs, or 12 analog inputs; Modbus addressable
Electrical Rating Note • Requires 24 VDC to operate
Enclosure Ratings Note NEMA 4X wall-mount enclosure.
Expansion & Connectivity Expansion Capabilities: Features four expansion slots supporting up to eight relays, eight analog outputs, or twelve analog inputs; Connectivity: Supports Modbus communication for remote control of multiple I/O and daisy-chain wiring on the gas detector loop.
Finishing Gray/Black
Height 10.26 in
Input Note 4 expansion slots supporting up to 8 relays, 8 analog outputs (4-20 mA), or 12 analog inputs (4-20 mA); Modbus addressable
LED Indicators Status Indicators (LED): Power, communication, Slot 1-4
Mounting Wall mount
Mounting Note Supports daisy-chain wiring on the gas detector loop.
Network and Communications Modbus communication
Number of Outputs 16
Operating Environment NEMA 4X; Temperature: 32 to 125°F (0 to 52°C); Humidity: 0% to 95% RH non-condensing
Operating Humidity 0 to 95% RH, non-condensing
Operating Temperature, Max 125 °F
Operating Temperature, Min 32 °F
Operating Temperature Note 32 to 125°F (0 to 52°C), 0% to 95% RH non-condensing
Output Detail Expansion Board Output Relay 1: SDPT Relay @ 250VAC, 10A Max (resistive); Expansion Board Output Relay 2: SDPT Relay @ 250VAC, 10A Max (resistive); Expansion Board Analog Output 1: 4mA Current: 32mA, Both at 20mA Current: 70mA; Board Analog Output 2: 4mA Current: 32mA, Both at 20mA Current: 70mA
Overall Depth 3.16 in
Programming Modbus communication
Relay Output Note Modbus addressable relay; supports up to 8 relays, 8 analog outputs, or 12 analog inputs via 4 expansion slots. Can be used to engage or disengage equipment such as fans, louvers, horns, strobes, and gas valves.
Series ID RD-24-Series
Supply Power Type Electric
Supported Devices Macurco DVP-1200 control panel
Width 11.06 in
