Series-UGY

Supported Applications

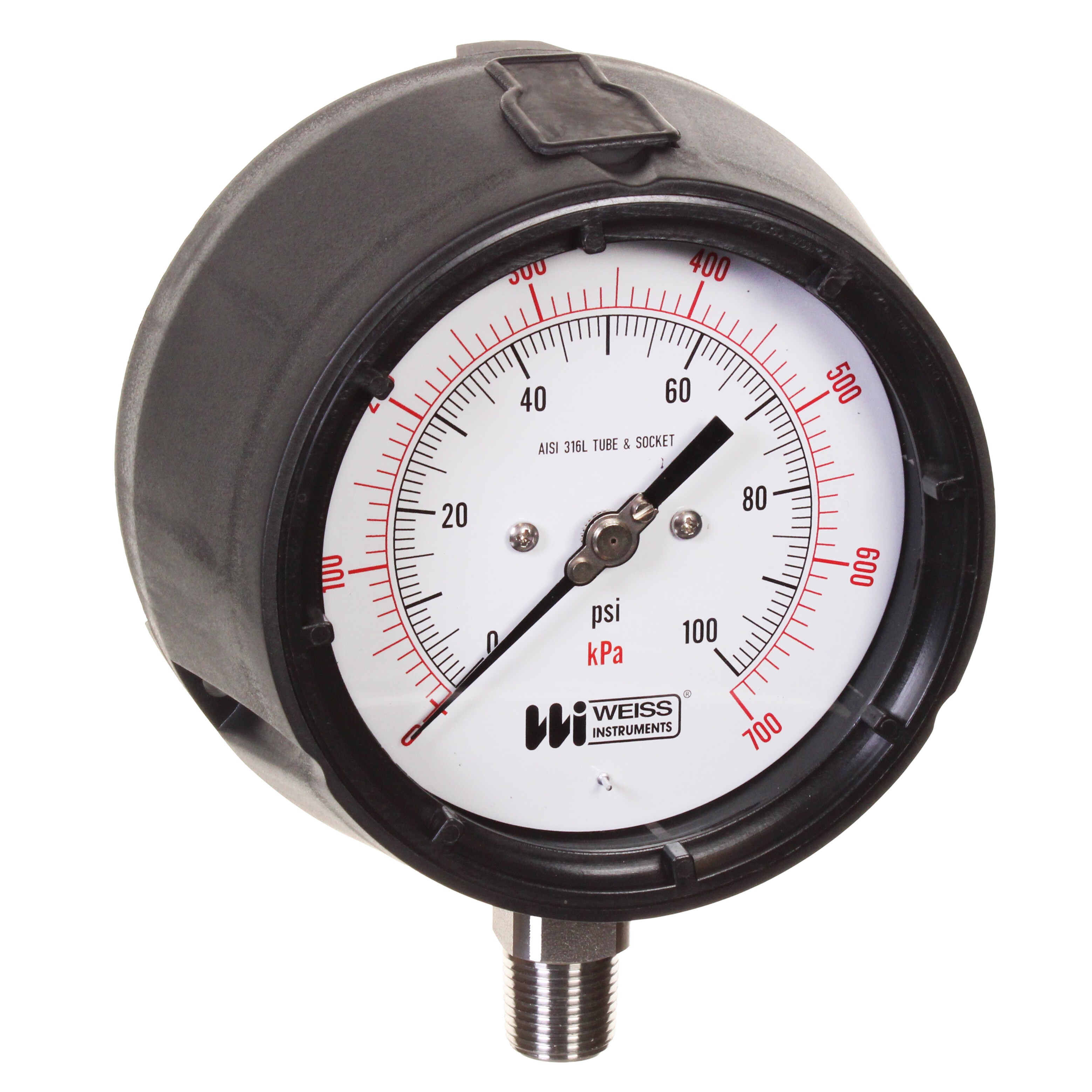

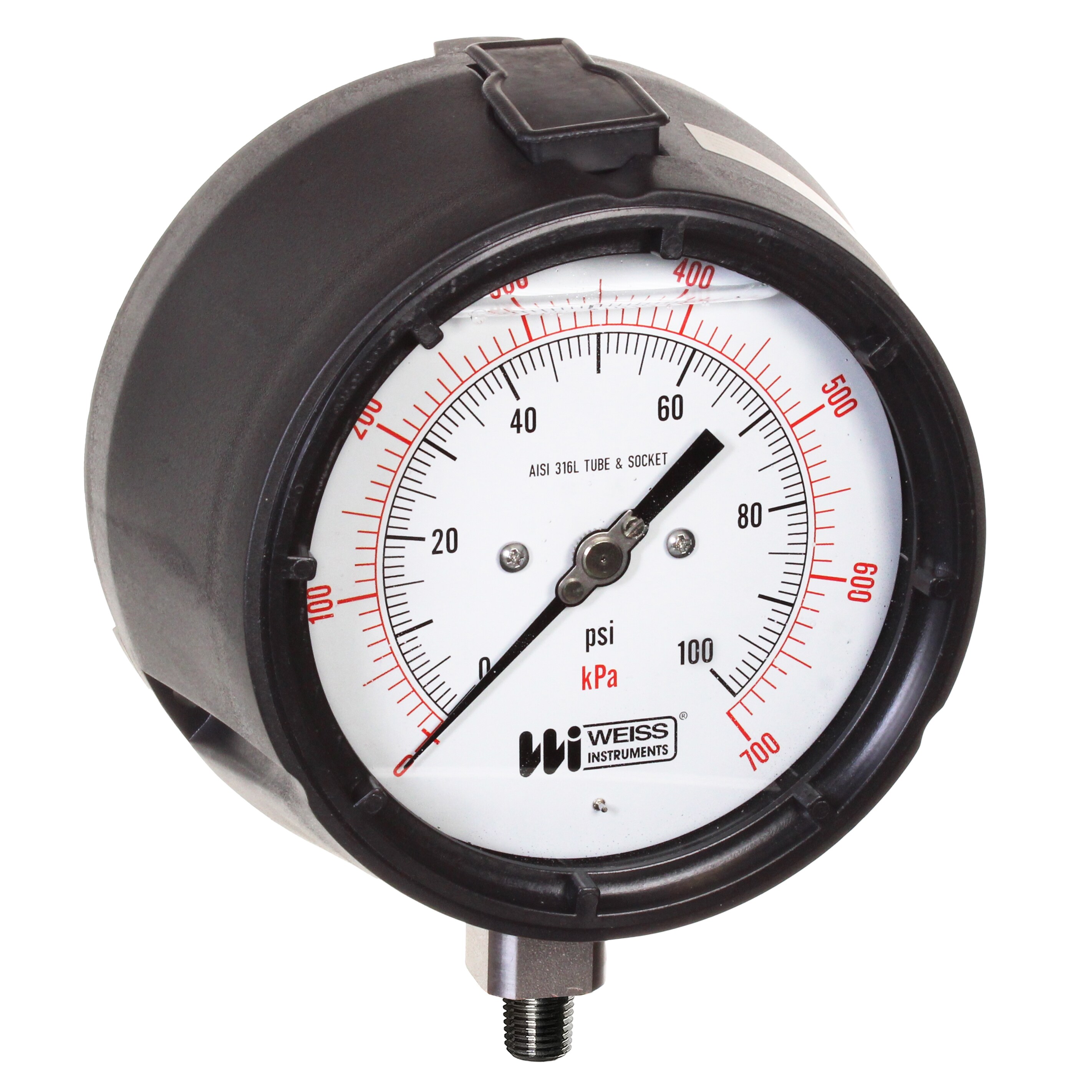

The Weiss Series-UGY Process Pressure Gauges are analog pressure gauges designed for industrial process monitoring. As part of the DwyerOmega portfolio under the category path DwyerOmega | Pressure | Gauges & Manometers | Pressure Gauges, this series provides visual indication of system pressure in general-purpose applications.

Operating Conditions & Performance

The Series-UGY is configured as an analog gauge for process environments. Specific performance parameters, including measurement ranges, accuracy classes, ambient temperature limits, and response times, are not provided in the current data bundle. Engineers should consult individual model documentation or contact technical support to verify operating conditions against specific application requirements.

Configuration Options

The series is available with 115 enabled variants covering a broad selection of configurations. The part number structure indicates distinct options for housing style, dial size, and pressure range:

• Housing/Model Prefixes: Variants are identified by prefixes including LF, NF, followed by a numeric series indicator (e.g., 4UGY1 or 4UGY2).
• Dial Size Indicators: Part numbers include suffixes such as "-2L" and "-4L," indicating available dial size options.
• Pressure Ranges: Numeric codes in the part number (e.g., 015, 030, 060, 100, 160, 200, 300, 400, 600, 1000, 1500, 2000, 3000, 5000, 10000, 20000) correspond to specific pressure ranges.
• Special Configurations: Variants with "V" prefixes (e.g., V15, V30, V60, V100, V150, V200, V300) and "VAC" designations are available within the series.

Key Product Differences

The Series-UGY distinguishes variants primarily through part number coding that reflects housing type (LF vs. NF), sub-series designation (1 vs. 2), dial size, and pressure range selection. The "V" series designators indicate specific configurations distinct from the standard numeric ranges.
