Series-1261-1263-1264

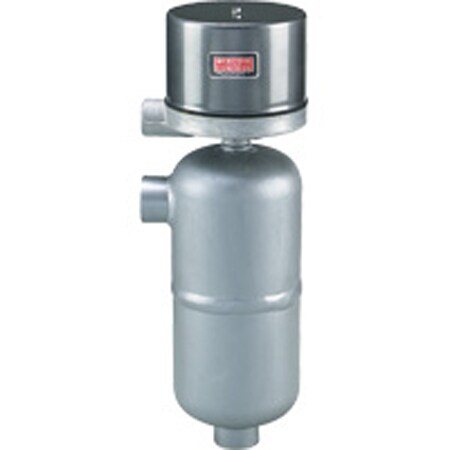

Pressure Control up to 1750 psi for Oil & Chemical Plants - Versatile Enclosures
Series-1261-1263-1264
From
$
0.00
Can't find the right model?
Use our custom configurator to fine tune your product
Product Overview
PDFs & Manuals
Show Ratings & Reviews
| EXAMPLE | 1261 | WT | 7810 | C1 | 60 | 1261-WT-7810-C1-60 Liquid Level Control, weatherproof enclosure, SPDT snap switch, fixed deadband, automatic reset, operating pressure 1750 psig (121 bar) at 100°F (38°C), 1650 psig (114 bar) at 500°F (260°C), side/bottom process connections, 1" NPT, minimum specific gravity 0.60. | |
| CONNECTION | 1261 | One Vertical and One Horizontal 1" NPT | |||||
| 1263 | One Vertical and One Horizontal Flanged Connection | ||||||
| 1264 | Two Vertical Flanged Connections | ||||||
| 1264T | |||||||
| ENCLOSURE | G | General Purpose, NEMA 1 | |||||
| WT | Weatherproof, NEMA 3R, 4, 4X | ||||||
| E | Explosion-proof, NEMA 7, 9, Class I Groups B, C, D, Class II Groups E, F, G. CSA approved Groups C, D, E, F, G only. | ||||||
| EV | Explosion-proof/Vapor-proof, NEMA 7, 9, Class I Groups B, C, D, Class II Groups E, F, G. CSA approved Groups C, D, E, F, G only. | ||||||
| CIRCUITS (for electrical circuits see charts A & B below) |
48XX | Single Stage Mercury Switch, see chart A | |||||
| 48XX-XX | Two Stage, Mercury Switch, see chart A | ||||||
| 78XX | Single Stage, Snap Switch, see chart B | ||||||
| 78XX-XX | Two Stage, Snap Switch, see chart B | ||||||
| 78XXHM | Hermetically Sealed Snap Switch, see chart B | ||||||
| 98XX | Single Stage, High Capacity DC Snap Switch, use heat fins (HF) if process temperature exceeds 350°F (177°C), do not exceed 450°F (232°C), see chart B | ||||||
| 98XX-XX | Two Stage, High Capacity DC Snap Switch, use heat fins (HF) if process temperature exceeds 350°F (177°C), do not exceed 450°F (232°C), see chart B | ||||||
| CHAMBER MATERIAL | C1 | Carbon Steel Body | |||||
| C216 | 316SS Body | ||||||
| MINIMUM SPECIFIC GRAVITY |
60 | 0.60 Specific Gravity (1261 only) | |||||
| 660 | 0.60 Specific Gravity & 600# Flange (1263, 1264 only) | ||||||
| OPTIONS | H1 | 1" NPT Vent (1261, steel housing only) | |||||
| STW | SS Tag Wired | ||||||
| 01 | Breather Only (E-Housing only) | ||||||
| 02 | Drain Only (E-Housing only) | ||||||
| 12 | Breather & Drain (E-Housing only) | ||||||
| 23720 | Fungus Proofing |
CHARTS A & B - ELECTRICAL CIRCUITS AND RATINGS
| SWITCH TYPE | SWITCH ACTION | ELECTRICAL RATINGS IN AMPS | ORDERING CODE | |||||||
| AC | DC | SINGLE STAGE | TWO STAGE | |||||||
| 120V | 240V | 440V | 30V | 125V | 250V | LOWER | UPPER | |||
| CHART A Mercury Contacts |
SP-ST open on level FALL | 10 | 5 | 3† | 10 | 5 | -4820 | -4820 | -21 | |
| SP-ST open on level RISE | 10 | 5 | 3† | 10 | 5 | -4821 | -4821 | -20 | ||
| SP-DT one switch | 4 | 2 | 1† | 4 | 2 | -4810 | -4810 | -10 | ||
| SP-DT two switches E.I.* | 10 | 5 | 3† | 10 | 5 | -4815 | -4815 | -15 | ||
| DP-ST two switches E.I.* open on level FALL | 10 | 5 | 3† | 10 | 5 | -4814 | -4814 | -13 | ||
| DP-ST two switches E.I.* open on level RISE | 10 | 5 | 3† | 10 | 5 | -4813 | -4813 | -14 | ||
| DP-DT two SP-DT switches | 4 | 2 | 1† | 4 | 2 | -4806 | -4806 | -06 | ||
| CHART B snap action contacts |
SP-DT one switch | 12 | 5 | 3† | 0.5** | 0.25** | -7810 | -7810 | -10 | |
| DP-DT two SP-DT switches | 12 | 5 | 3† | 0.5** | 0.25** | -7806 | -7806 | -06 | ||
| SP-DT one hermetically sealed switch | 5 | 5 | 5** | -7810HM | -7810HM | -10HM | ||||
| DP-DT two hermetically sealed SP-DT switches | 5 | 5 | 5** | -7806HM | -7806HM | -06HM | ||||
| DP-DT two SP-DT switches | 10 | 3 | 10‡ | 3‡ | -9806 | -9806 | -06 | |||
| SP-DT one switch | 10 | 3 | 10‡ | 3‡ | -9810 | -9810 | -10 | |||
‡10 amp inductive (polarized) at 125 VDC.
*Electrically Independent.
**Resistive.
