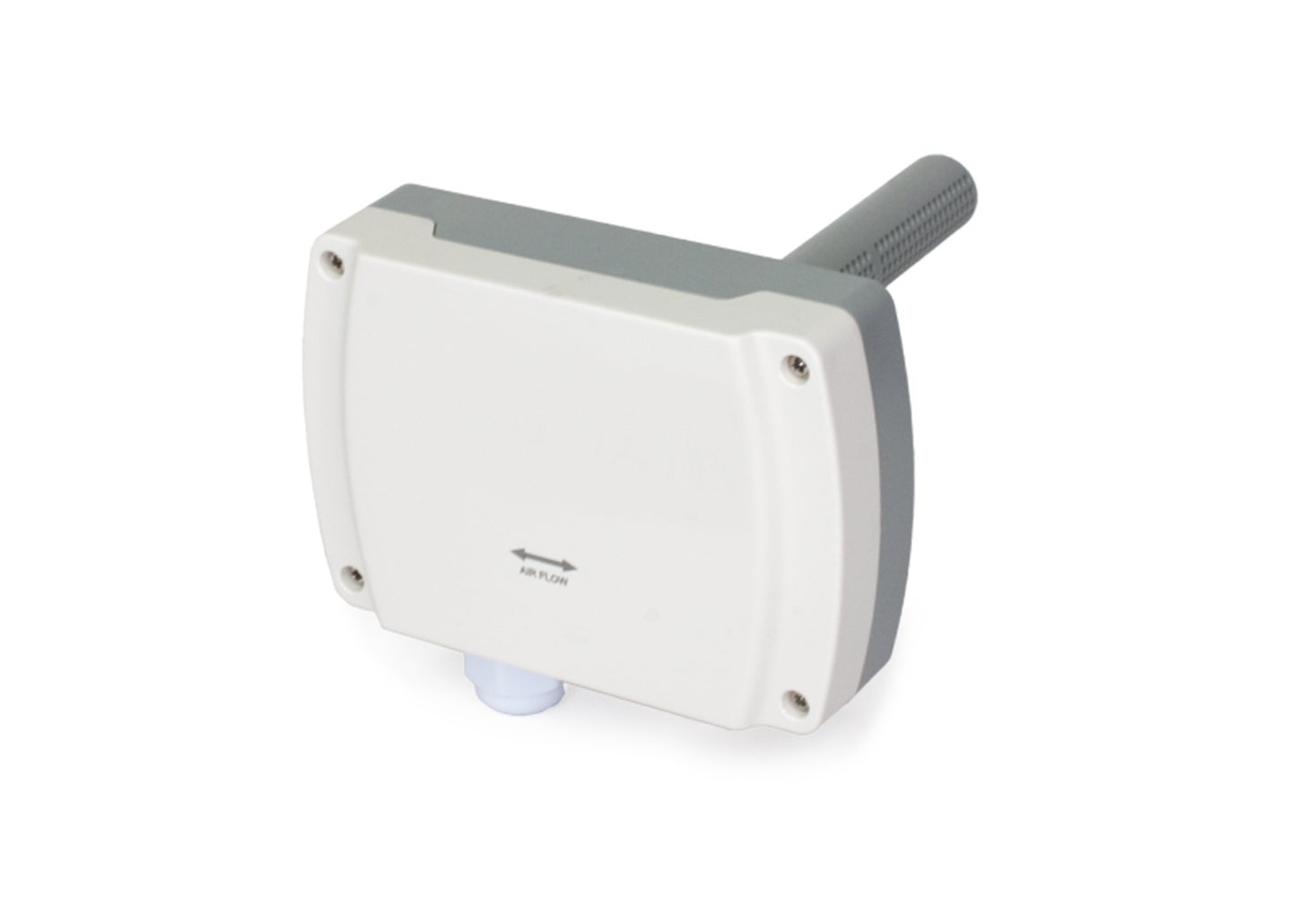

Particulate-Matter
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| Accuracy | ± 10 μg/m3 |
| Accuracy Detail | +/- 10% reading @ 100 ~ 500/600 μg/m3 @ 25°C/50%RH |
| Applications | Air and HVAC, Building and Maintenance, Environmental Monitoring |
| Approvals | CE, RoHS2 |
| Data Interface | Modbus RTU, RS485 |
| Electrical Connection | Screw Terminal |
| Electrical Output | 4 to 20 mA, 0 to 10 Vdc |
| Enclosure Material | ABS Plastic |
| Enclosure Ratings | UL94 V-0 |
| Input Type | Fan |
| Loop Resistance, Max | 4-20 mA: 500 Ohms maximum (Default) |
| Material Construction Option | none |
| Operating Humidity | 0 to 95% RH, non-condensing |
| Operating Temperature, Max | 122 °F |
| Operating Temperature, Min | 32 °F |
| Protection | IP30 (Room) |
| Relay Output | 3 A @ 30 Vdc, 3A @ 250 Vac |
| Resolution | 1 µg/m3 |
| Response Time | In continuous service mode, sample time <1s, response time <10s |
| Sensor Type | Laser particulate matter sensor |
| Series ID | Particulate-Matter |
| Service Life | MTBF more than 3 years in continuous service mode, service life up to 8-10 years in auto (intermittent) service mode |
| Storage Temperature, Max | 70 °F |
| Storage Temperature, Min | -30 °F |
| Supply Current | 50 mA |
| Supply Voltage | 16 to 28 Vac, 16 to 35 Vdc |
| Tightening Torque | 0.45 lb-in (0.5 Nm) nominal |
| Trip Point Note | Relay Trip Point: 100 (Factory set), user adjustable |
| Warm Up Time | 15 minutes |
| Weight | 270 g |
| Wire Gauge | 22 to 16 AWG |
| See All Specs | |
