Series-AT-MSXConfiguration

Supported Applications

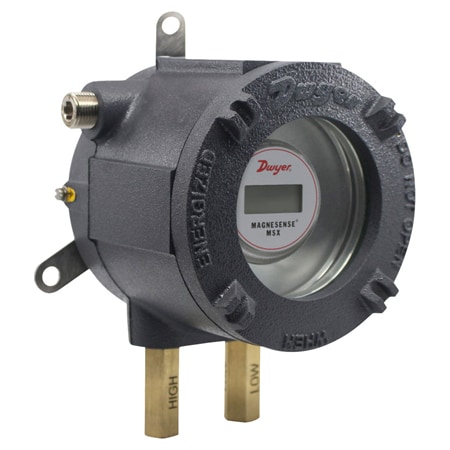

The Series AT-MSX ATEX/IECEx Approved Magnesense® Differential Pressure Transmitter is designed for monitoring pressure and air velocity in hazardous areas. The transmitter utilizes piezo sensing technology to provide long-term performance. It features the ability to select a square root output for use with pitot tubes and other similar flow sensors.

Operating Conditions & Performance

The Series AT-MSX operates within an ambient temperature range of -4 to 158°F (-20 to 70°C). Accuracy is specified as ±1% FSO, with stability rated at ±1% FSO/year. The device supports media compatibility for air and non-combustible, compatible gases.

Response time defaults to instantaneous or selectable 3 s without considering delay caused by Exd flame arrestors; delays up to 30 s from FS to zero may occur depending on model and ranges with STD pressure ports. Response is approximately 15 s with LD pressure ports on very low ranges.

Pressure limits vary by port/valve configuration: VS0 supports 10 kPa (one or both ports connected); VS1 supports 20 kPa (one port) and 15 kPa (both ports); VS2 supports 40 kPa (one port) and 20 kPa (both ports).

Measurement Ranges

• 0.5 in w.c., 125 Pa, 12 mm w.c.
• 1 in w.c., 250 Pa, 25 mm w.c.
• 5 in w.c., 1250 Pa, 125 mm w.c.
• 28 in w.c., 7000 Pa, 700 mm w.c.

Hazardous Location Approvals

The series holds ATEX Certificate INERIS 21ATEX0033X and IECEx Certificate IECEx INE 21.0064X. Compliance includes:

• ATEX: 0080 II 2G Ex db IIC T5, T6 Gb -60°C≤Tas≤+50°C (T6) -60°C≤Tas≤+60°C (T5); II 2D Ex tb IIIC T75°C Db
• IECEx: Ex db IIC T5, T6 Gb -60°C≤Tas≤+50°C (T6) -60°C≤Tas≤+60°C (T5) Ex tb IIIC T75°C Db

Configuration Options

The Series AT-MSX offers configurable options across enclosures, materials, ranges, and outputs. The housing material is aluminum with a texture epoxy coat RAL7038 finish.

Housing & Enclosure Options

• Enclosure: ATEX/IECEx approved enclosure (e.g., AT-102NA)
• Cover options: Blind or Glass window for viewing the process on the LCD
• Mounting orientation: Pressure sensor measurement unaffected by orientation
• Weight: 12.3 lb (5.6 kg)

Sensor & Output Configuration

• Direction: Uni-directional or Bi-directional
• Units of Measure: Inches of water column, Pascal, Millimeters of water column
• Display: 4 digit LCD (field-upgradable)
• Damping: Adjustable damping of output signal
• Output Signal: 4-20 mA (2-wire) or 0-10 V / 0-5 V selectable (3-wire)
• Power Supply: 10-36 VDC (2-wire), 17-36 VDC, or isolated 21.6-33 VAC (3-wire)

Process & Electrical Connections

• Process Connection: 1/8" NPT female brass (SS optional)
• Port/Valve Configurations:
  • Brass and STD port/no valve (1VS0)
  • Brass and STD port/STD valve (1VS1)
  • Brass and STD port/LD valve (1VS2)
  • Stainless steel and STD port/NO valve (2VS0)
  • Stainless steel and port/STD valve (2VS1)
  • Stainless steel and STD port/LD valve (2VS2)
• Electrical Connection: Two 1/2" NPT female. Cable gland not included.
• Terminal Block: European style terminal block for 16-26 AWG
• Cable Entry: 1/2" NPT ANSI/ASME B1.20.1

Wetted Materials & Service

Service is specified for air and non-combustible, compatible gases. Wetted materials require consultation with the factory.

Key Product Differences

The Series AT-MSX model number structure defines specific configurations: Enclosure type (e.g., 102NA), Housing Material, Series designation (MSX for Magnesense® differential pressure transmitter), Direction (Uni-directional or Bi-directional), Pressure Range code, Units of Measure (IN, PA, MM), Display presence (LCD), Cover style (Blind or Glass window), Port/Valve configuration material and type, and Cable Entry size.

Flameproof enclosures are available in aluminum. The series supports field-selectable English or metric ranges via the model number breakdown.
