FGT100-200-Series
Adjustable Temperature Thermostats with DIN Rail Mounting
This series has been discontinued - please see the KT011-Series or KTO-KTS-Series
- Integrated 35 mm DIN Rail Mounting Features (EN 50022)
- Adjustable Temperature Control
- Broad Temperature Range
- 100,000 Cycle Rating at 100 to 250 Vac

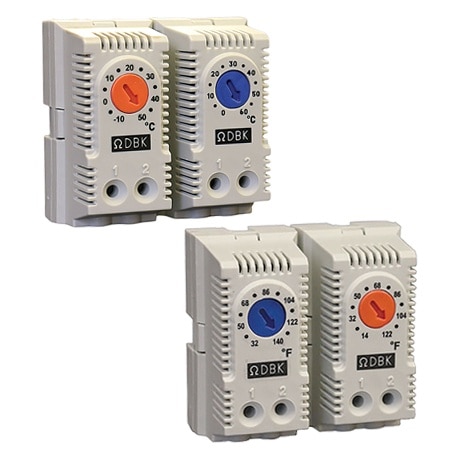

- Versions Differentiated by Button Color
- Compact and Lightweight
Product Overview
- Additional Features 1 °C Scale
- Contact Type N/A
- Current Rating 16 A
- Current Rating Note 250 Vac : 16 A 100 Vac: 15 A 24 Vdc : 2.5 A 12 Vdc : 5 A
- EMC EN50022
- Enclosure Ratings IP20, IP30
- Form factor Clip for 35 mm DIN Rail
- Height 43 mm
- Length 65 mm
- Number of Circuits N/A
- Process Temperature, Max 50 °C
- Process Temperature, Min -10 °C
- Protection II
- Supply Voltage 100 to 250 Vac, 12 to 24 Vdc
- Temperature Difference Note 7K (± 4K)
- Temperature Range Adjustable
- Width 33 mm
These easy to use thermostats are ideal for heating and cooling applications. The thermostats can easily be mounted on a DIN rails.
