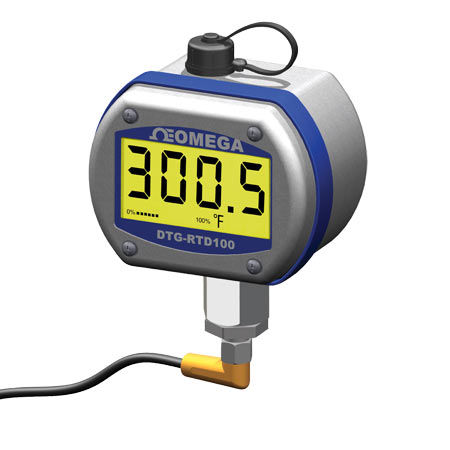

DTG-RTD100
Choose a Variant
Electrical Connection
Material Construction Option
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| Accuracy | ± 0.2 °C (± 0.36 °F) |
| Accuracy Detail | ±0.2°C (±0.3°F) or ±0.1% of reading |
| Battery Size and Type | 3.6V Li-ion |
| Commodity Code | 9025.80.5050 |
| Control Output | High/Low Alarm |
| Data Interface | USB |
| DepthValue | 8.55 |
| Diameter | 0 in |
| Display Measuring Units | °C, °F, K |
| Display Type | Backlit LCD |
| ECCN | EAR99 |
| Electrical Connection | Screw Terminal |
| Electrical Output | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc |
| Enclosure Material | 316 Stainless Steel, ABS |
| Enclosure Ratings | IP65, NEMA Type 4X, Weatherproof |
| GrossWeightValue | 2.63 |
| HeightUoM | IN |
| HeightValue | 4.35 |
| Material Construction Option | N/A |
| NetWeightValue | 2.63 |
| OkForExport | true |
| Operating Temperature, Max | 70 °C |
| Operating Temperature, Min | -40 °C |
| Probe Length | 0 in |
| Sampling Rate Note | User adjustable from 0.375 to 30 sec, preset to 1/sec |
| Supply Power Type | DC/Battery |
| Supply Voltage | 12 to 24 Vdc |
| Taxonomy Level 1 | STR |
| Taxonomy Level 2 | CS |
| Taxonomy Level 3 | IN |
| Taxonomy Level 4 | MO |
| Temperature Sensor Type | Pt100 Ω RTD |
| Weight | 1.59 lb |
| WeightUoM | LB |
| WidthValue | 12.3 |
| Country of Origin | United States |
| See All Specs | |
