On-Auto-Switch-Series
On/Auto Switch
- NEMA 4X
- IP66 Rated
- Polycarbonate Enclosure
- On or Auto Position
- Dual Normally-Open Position Selector
On-Auto-Switch-Series
From
$
210.00
Product Overview
- Accessory Type 2 Position Selector Switch
- Additional Features On or Auto Position, Dual Normally-Open Position Selector
- Applications Air, Air and HVAC, Building and Maintenance, Clean Rooms, Commercial and Industrial, Laboratories
- Enclosure Material Polycarbonate
- Enclosure Material Note UV and corrosion resistant
- Enclosure Ratings IP66, NEMA Type 4X
- Height 3 in
- Mounting Mounting holes in each corner
- Operating Humidity 0 to 90% RH, non-condensing
- Operating Temperature, Max 131 °F
- Operating Temperature, Min -40 °F
- Overall Depth 2.3 in
- Series ID On/Auto-Switch-Series
- Switch Note For AC voltage below 72 V AC the max. allowed switching current is 10A=Ith. For DC voltages below 28V DC the max. allowed switching current is 2.5A=Ith.
- Width 3.1 in

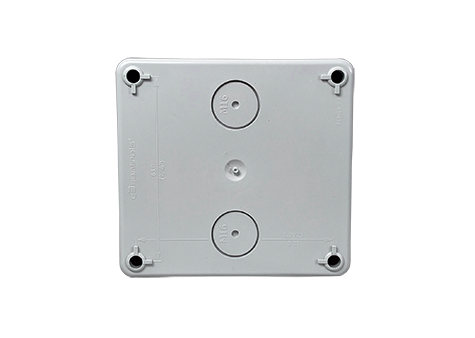

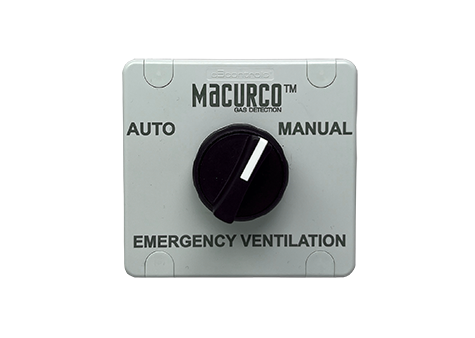

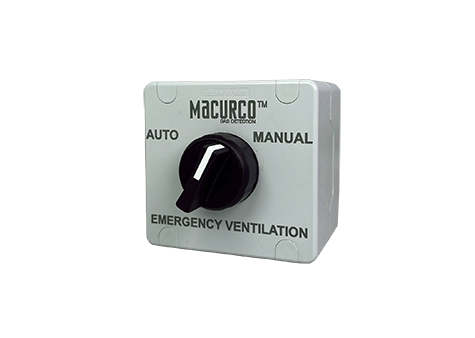

The Macurco On / Auto Switch is a remote manual switch used to manually engage ventilation in the event of an emergency, during maintenance, or to add additional ventilation in a non-emergency situation. This switch is to be wired in parallel to the gas detection system. This device is to be used in conjunction with Macurco solutions to aid in the safety of people and property.
