2913-E

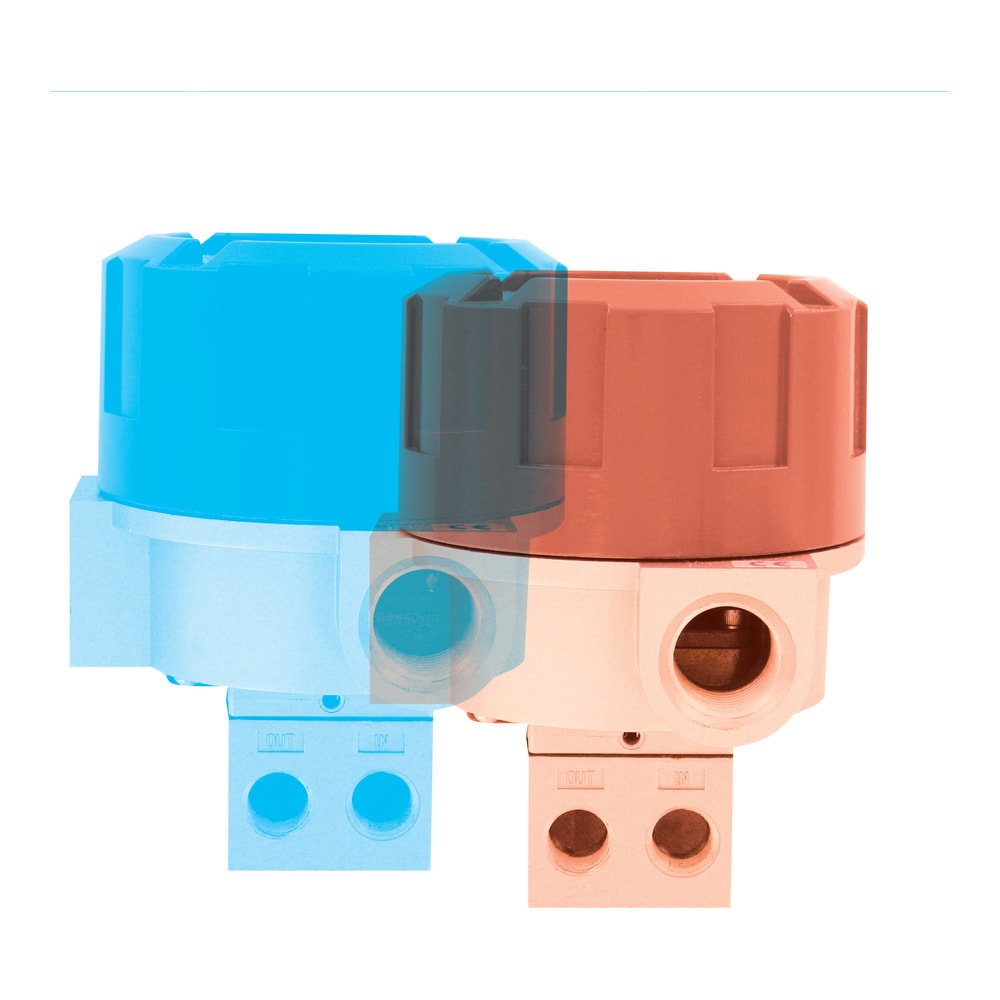

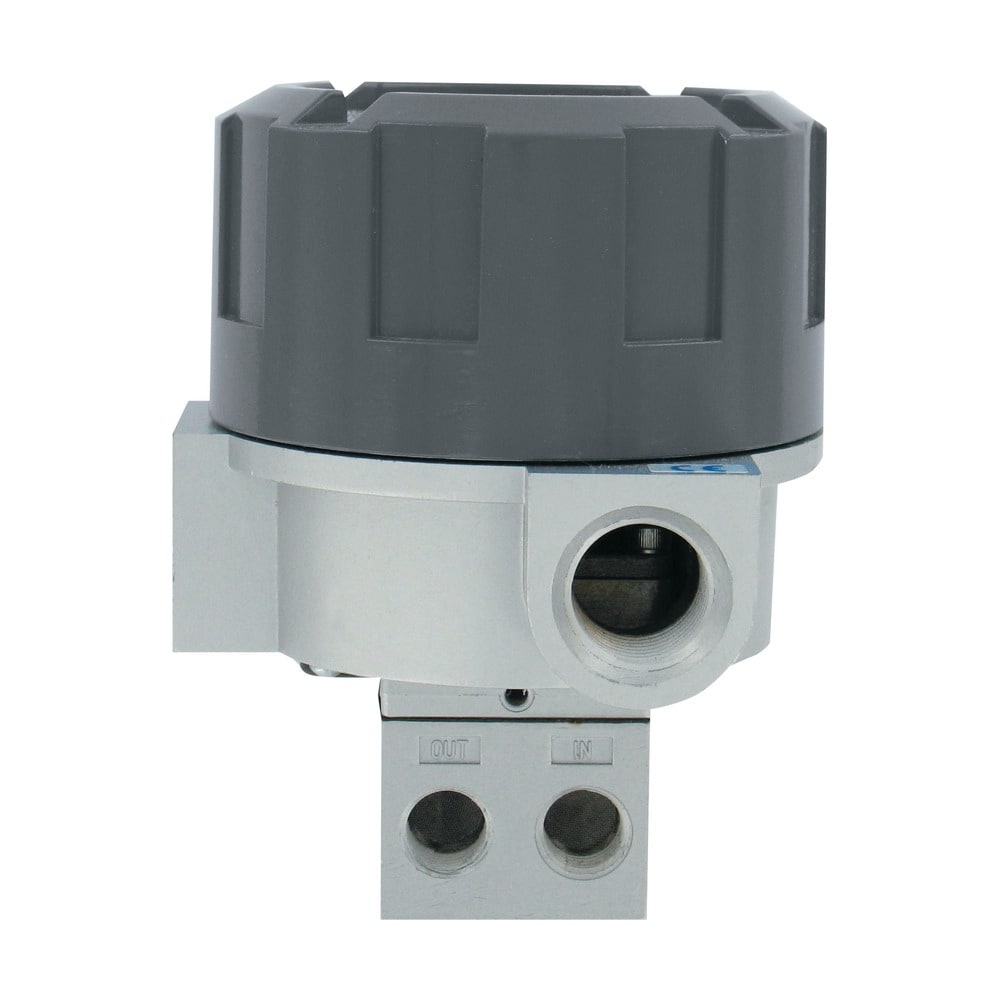

Current to pressure transducer, 4-20 mA input, 3-15 psig (0.2-1.0 bar) output.

(0)

Click and hold to zoom

Choose a Variant

Pressure Output Range

3 to 15 psi 6 to 30 psi

See all Models See all accessories

$1,236.15 / each

Item# 2913-E

Added to Your Shopping Cart

In Stock

Lead Time (If not in stock): 8 weeks

+ Add to Project List

See Specs

Product Specs

<< See all Product Models

Brand
Accuracy	± 0.1 %
Air Consumption	0.05 SCFM
Air Supply Pressure, Max	100 psi
Air Supply Pressure, Min	5 psi
Compliance Note	FM Ratings: Explosion-proof for class I division 1, groups B, C, and D. T6, dust ignitionproof for class I, division 1, groups E, F, and G, T6; Intrinsically safe for class I, II, and III, division 1, groups C, D, E, F, and G, T4 hazardous (classified) locations and intrinsically safe for class I, zone 0, group IIB, T4 hazardous (classified) locations and suitable for class I, groups A, B, C, D, T4, and class II and III, division 2, groups F and G, T6 hazardous (classified) locations. CSA Ratings: Class I division 1, groups B, C, and D; Class I, division 2, groups A, B, C and D; Class II, division 1, groups E, F, and G; Class II and III, division 2, groups F and G.
Deadband	±0.02% of span
Electrical Connection	1/2 in NPT female Conduit with Screw Terminal block
Enclosure Ratings	IP65, NEMA Type 4X
Enclosure Ratings Note	Weatherproof NEMA 4X (IP66), explosion-proof and intrinsically safe
GrossWeightValue	2.25
Hysteresis	± 0.1% of span
Input Control Signal	4 to 20 mA
Materials	Aluminum, Epoxy
Measurement Pressure Type	Gauge
Measurement Type	Current
Media Compatibility	Clean dry air / inert gas
Operating Temperature, Max	160 °F
Operating Temperature, Min	-40 °F
Output Capacity	4.5 SCFM at 25 psig Supply; 12.0 SCFM at 100 psig Supply
Output Signal	Pressure
Port 1 Size	1/4 in
Port 1 Type	NPT Female
Port 2 Size	1/4 in
Port 2 Type	NPT Female
Pressure Output Range	3 to 15 psi
Repeatability	± 0.1% of span
Series ID	Series-2900
Storage Temperature, Max	200 °F
Storage Temperature, Min	-40 °F
Supply Power Type	Loop Powered
Weight	1.8 lb
Country of Origin	United States
