MRS-485-Series

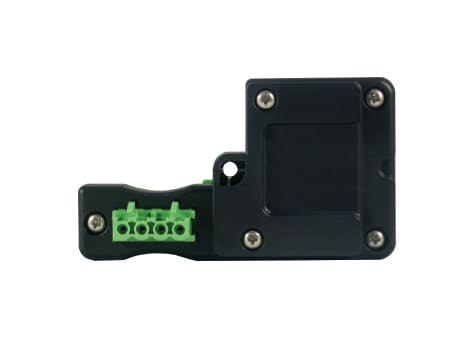

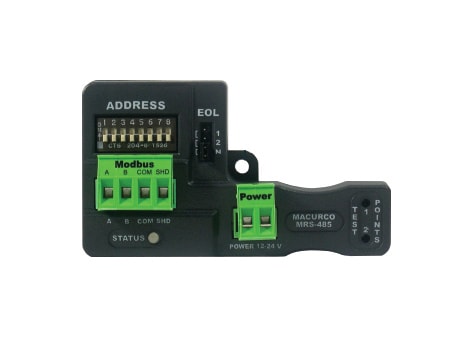

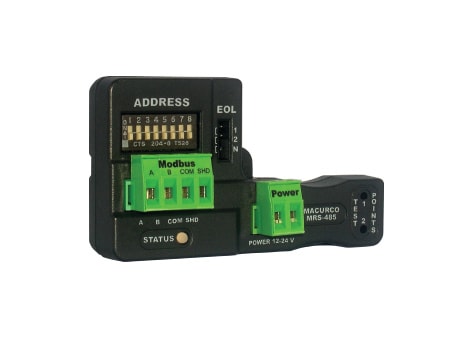

MRS-485 Analog to Modbus Adapter
- 8-bit dip switch address selector
- The MRS-485 monitor’s sensor type, gas level, and trouble status communications
- Communication is on a Modbus serial line
- Commercial-type enclosure to protect and support the electronics
- Tricolor LED indicates power, test and communication status
- Mounts behind the detector inside of a standard 4” x 4” electrical box
MRS-485-Series
From
$
185.00
Product Overview

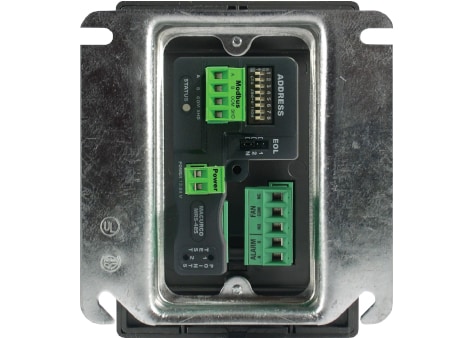

- Accessory Mounting Behind the detector inside a 4" x 4" electrical box
- Applications Building and Maintenance, Commercial and Industrial, Environmental and Weather, Environmental Monitoring, HVAC, Laboratories
- Baud Rate 4800, 9600, 19200, 38400, 57600, 115200
- Circuit Protection none
- Compatibility Compatible With: Macurco 6-Series detectors, including CM-6 and GD-6; Building Automation Systems, control panels, and other control devices that accept Modbus communications
- Data Interface Modbus RTU, RS485
- Data Interface Note RS-485: The communication interface is a serial line using a "Two-Wire" electrical interface in accordance with EIA/TIA-485 standard. It operates using the Modbus RTU transmission mode. It features an 8-bit DIP switch for device address selection (1 to 247, with 254 for programming mode). Signal wiring requires at least a 3-conductor twisted wire (shielded recommended), and the interface includes jumper-selectable line termination options (100 ohm, 120 ohm, or none).
- Data Logging No
- Display Note Tricolor LED indicates power, test, and communication status
- Display Type LED
- Electrical Output Note Modbus RTU transmission mode via EIA/TIA-485 (two-wire) interface; adjustable baud rates from 4800 to 115200 bps; jumper-selectable line termination (100 ohm, 120 ohm, or none); requires 3-conductor twisted (shielded recommended) cable
- Electrical Rating Note Power & Current (with detector): 3.25 W (max); 85 mA @ 24 VDC (alarm); 60 mA @ 24 VDC (fan relay on); 33 mA @ 24 VDC (standby) • Power Connection: 12 to 24 VAC or 12 to 24 VDC (no polarity) • Power Wire Terminals: Accept wire from 16 to 28 AWG
- Enclosure Note Commercial-type enclosure to protect and support the electronics
- Expansion & Connectivity Connectivity: Provides a digital interface for Macurco 6-Series detectors to communicate with Building Automation Systems, control panels, and other control devices using Modbus RTU protocol over a physical RS-485 serial line interface; features include an 8-bit DIP switch for address selection (1-247) and adjustable baud rates (4800, 9600, 19200, 38400, 57600, 115200 bps).
- Finishing Black
- Height 3.5 in
- Input Note Accepts 4-20mA analog signal input from Macurco 6-Series detectors, powered by the detector connection.
- Mounting Behind the detector inside of a standard 4" x 4" electrical box
- Mounting Note Mounts behind the detector inside of a standard 4” x 4” electrical box
- Network and Communications Communication Interface: MODBUS serial line; Transmission Mode: RTU; Physical Interface: EIA/TIA-485 (Two-Wire); Baud Rate: 4800, 9600, 19200 (default), 38400, 57600, 115200 bps; Parity: Odd, Even (default), None; Addressing: 8-bit DIP switch (Addresses 1-247; 254 for programming mode); Line Termination: Jumper selectable (100 ohm, 120 ohm, None (default)); Signal Cable: 3-conductor twisted wire (shielded recommended).
- Operating Environment 0°F to 125°F (-18°C to 52°C); 10 to 90% RH non-condensing; Non-hazardous areas
- Operating Humidity 0 to 90% RH, non-condensing
- Operating Temperature, Max 125 °F
- Operating Temperature, Min 0 °F
- Output Detail Modbus RTU
- Overall Depth 1.75 in
- Power Consumption 3.25W max
- Programming 8-bit DIP switch address selector
- Protection Commercial-type enclosure to protect and support the electronics
- Series ID MRS-485-Series
- Supply Power Type Electric
- Supply Voltage 12 to 24 Vac/Vdc
- Supported Devices Macurco 6-Series detectors (CM-6, GD-6), Building Automation Systems, Control Panels
- Width 2 in
The Macurco MRS-485 accepts the 4-20mA output and is powered from the same connection as the detector. The MRS-485 has the ability to interface with Building Automation Systems, Control Panels or other Control Devices that accept Modbus communications.
