Series-3HBAV

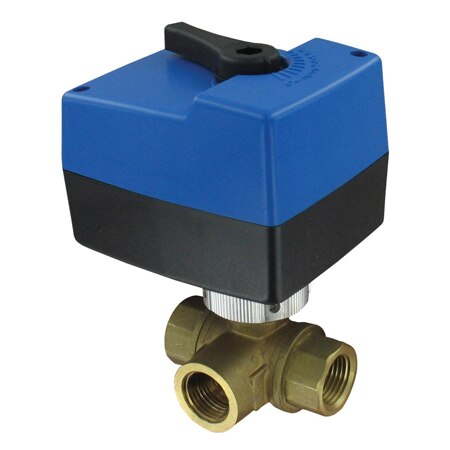

Motorized Ball Valve for HVAC – Flow Control in Hot/Cold Water Systems

Models In Stock
  • Manual override
  • Detachable actuator
  • High Cv values
Series-3HBAV
From $ 207.00
Models In Stock
Motorized Ball Valve for HVAC – Flow Control in Hot/Cold Water Systems Series-3HBAV Series-3HBAV
loading all models
Product Overview
  • Enclosure Ratings IP10, NEMA Type 1
  • Materials Nylon, Polyoxymethylene
  • Materials, Wetted Brass, Buna-N (NBR), PTFE, Stainless Steel
  • Media Compatibility Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
  • Operating Temperature, Max 158 °F
  • Operating Temperature, Min -22 °F
  • Port 1 Type NPT Female
  • Port 2 Type NPT Female
  • Pressure Limits Up to 375 psi
  • Pressure Limits Note Max: 375 psi (25 bar); Close off: 87 psi (6 bar)
  • Process Temperature, Max 122 °F
  • Process Temperature, Min 23 °F
  • Supply Power Note 120 Vac or 24 Vac, 50/60 Hz, single phase
  • Supply Power Type AC
  • Valve Position Normally Closed
  • Valve Type 3-way
  • Wire Gauge 18 AWG

The Series 3HBAV is an electrical ball valve ideal for flow control in hot and cold water HVAC systems. These valves are typically used in conjunction with air conditioning systems, heating systems, water treatment and production industries. The 3HBAV is electrically driven open and/or closed via a bidirectional AC motor. The electrical valve offers a detachable actuator with position switches and indicator. The 3HBAV is available with modulating or floating actuators.

California Residents:  Click Here for Proposition 65 WARNING.

Product Applications

  • Air Conditioning Systems
  • Heating Systems
  • Water Treatment
  • Production Industries
