3HBAV0212

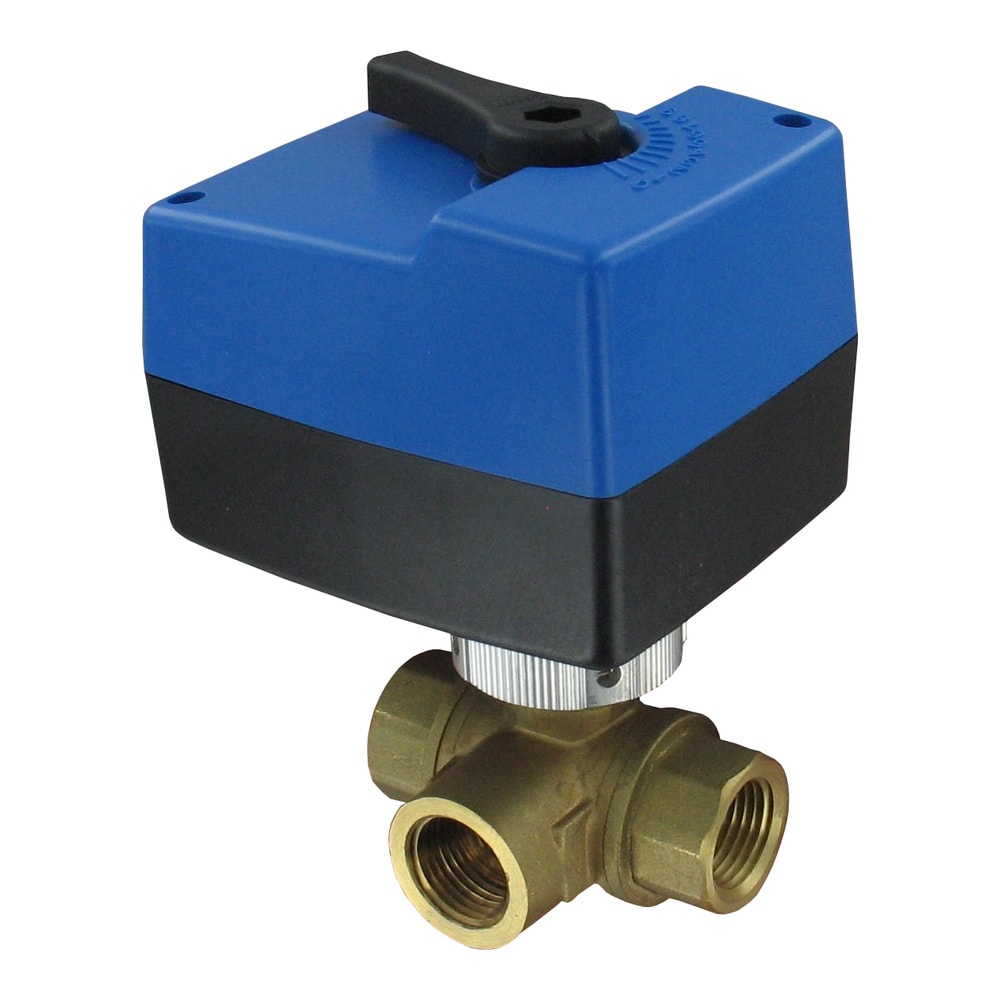

Three-Way detachable electric ball valve, Cv value 4.5, 1/2" npt, 120 vac, floating
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| Cv Factor | 4.5 gal/min |
| Cycle Time | 45 s |
| Enclosure Ratings | IP10, NEMA Type 1 |
| GrossWeightValue | 1.85 |
| Input Control Signal | 3-wire |
| Materials | Nylon, Polyoxymethylene |
| Materials, Wetted | Brass, Buna-N (NBR), PTFE, Stainless Steel |
| Media Compatibility | Clean dry air / inert gas, Clean process / cooling water, Compatible Liquids, Inert / non-reactive gases, Oils / lubricants, Organic solvents, Water |
| Operating Temperature, Max | 158 °F |
| Operating Temperature, Min | -22 °F |
| Port 1 Size | 1/2 in |
| Port 1 Type | NPT Female |
| Port 2 Size | 1/2 in |
| Port 2 Type | NPT Female |
| Power Consumption | 3 to 5 VA |
| Pressure Limits | Up to 375 psi |
| Pressure Limits Note | Max: 375 psi (25 bar); Close off: 87 psi (6 bar) |
| Process Temperature, Max | 122 °F |
| Process Temperature, Min | 23 °F |
| Series ID | Series-3HBAV |
| Supply Power Note | 120 Vac or 24 Vac, 50/60 Hz, single phase |
| Supply Power Type | AC |
| Supply Voltage | 120 Vac |
| Valve Position | Normally Closed |
| Valve Type | 3-way |
| Weight | 1.43 lb |
| Wire Gauge | 18 AWG |
| Country of Origin | China |
| See All Specs | |
