Series-DCT1000DC

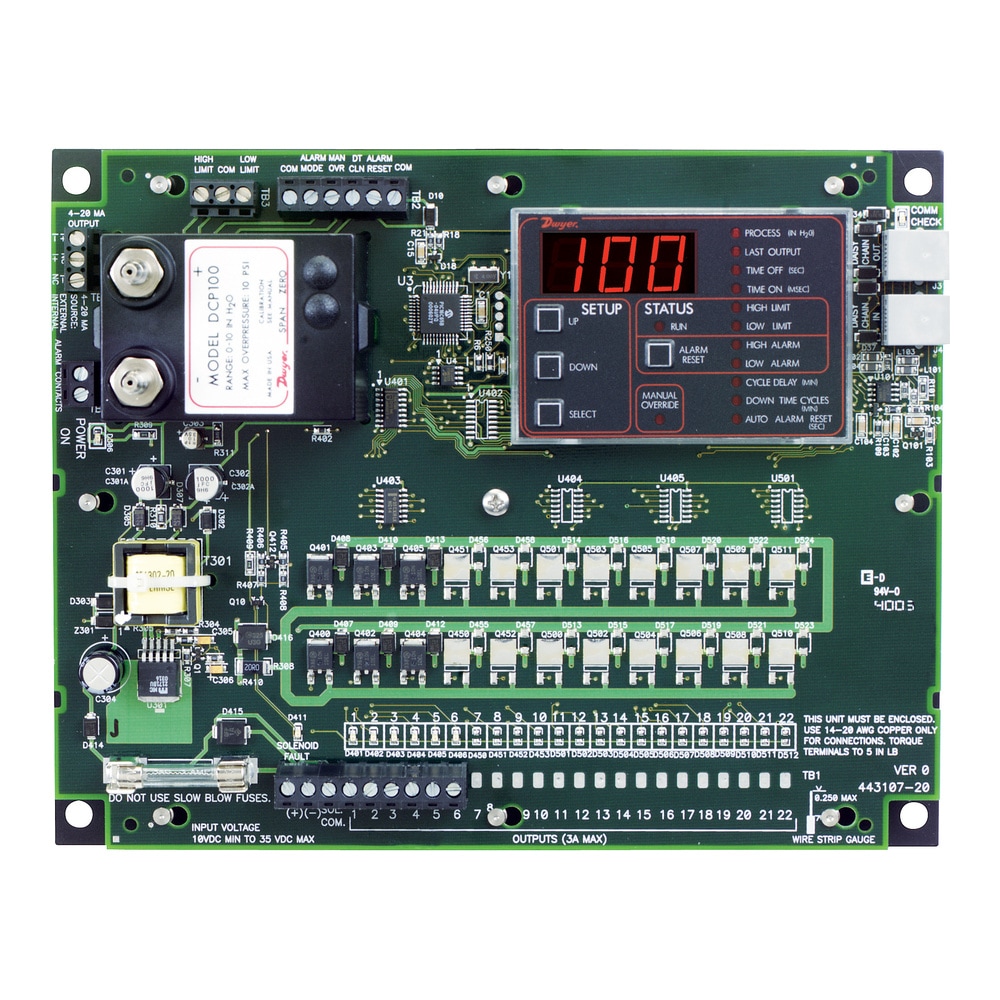

Modular Dust Collector Timer Controller, 10-30 Vdc, 6-22 Channels

(0)

Models In Stock

10 to 30 VDC power requirement for low voltage applications
Standard mounting holes to other dust collector controllers for use in existing installations
Able to automatically detect any channel expander connected

See Product Overview

Series-DCT1000DC

From ^$ 431.10

Models In Stock

Shop Models

7 Variations available

See all series options below

Data Sheet

Can't find the right model?

Use our custom configurator to fine tune your product

Product Overview

Applications Pneumatic Systems
Operating Temperature, Max 140 °F
Operating Temperature, Min -40 °F

Simplify your on-demand cleaning requirements with the Series DCT1000DC Dust Collector Timer Controller. Relying on one timer board for on demand and continuous cleaning applications, the DCT1000DC eliminates external devices such as pressure switches, relays and timers.

The DCT1000DC accepts 10-30 VDC power. The units modular design allows for use as a continuous cleaning control or on demand cleaning control using the optional DCP plug-in pressure module. A 4-20 mA process output is integral to the DCP pressure module, eliminating the need to purchase an expensive process transmitter. A solenoid fault light on the DCT1000DC notifies the operator when a solenoid valve fails to activate properly.

The DCT1000DC is the same size for 6, 10 and 22 channels. One board size allows the standardization on one enclosure.
