Series-MDA

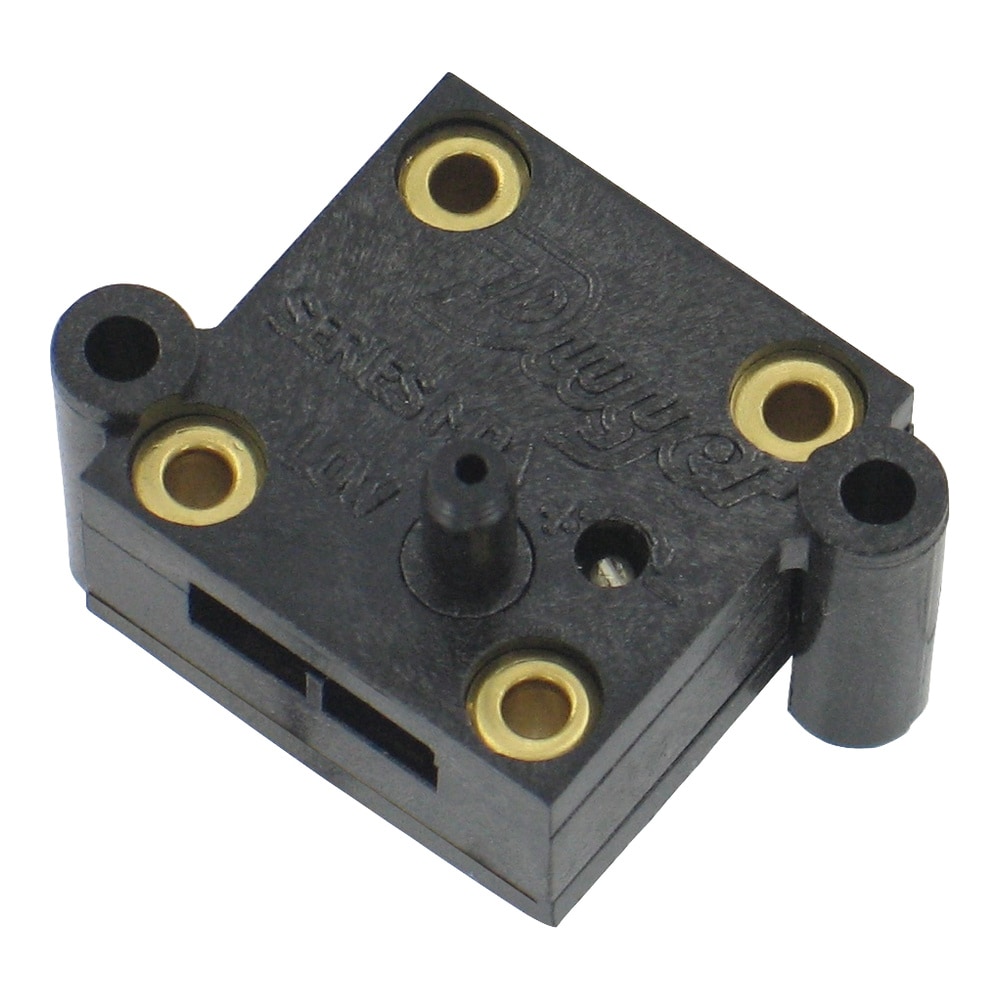

Mini Adjustable Pressure Switch, Gold Contacts, HVAC, Industrial, Medical
- Air or fluid on high side permits multiple uses where both air and liquids exist
- Small and lightweight for applications where space is constrained
- Gold contacts help ensure a clean connection without dirt or oxidation
Series-MDA
From
$
35.75
Can't find the right model?
Use our custom configurator to fine tune your product
Product Overview
- Applications HVAC, Medical, Pump Control
- Electrical Connection Screw Terminal
- Materials Polycarbonate, PTFE
- Media Compatibility Consult Factory
- Mounting Orientation Panel Mount
- Operating Temperature, Max 150 °F
- Operating Temperature, Min 40 °F
- Operating Voltage, Max 30 Vac/Vdc
- Operating Voltage Note AC/DC - 30 V or less with resistive load.
- Pressure Type Differential
- Process Connection Note Smooth port 5/32˝ diameter for 1/8˝ ID tubing
- Process Connection Size 5/32 in
- Process Connection Type Stem
- Proof Pressure Up to 4 psi
- Storage Temperature, Max 150 °F
- Storage Temperature, Min -46 °F
- Switch Note SPST normally open, 40 mA resistive; Cycle life: More than 20 million cycles, Switch Contacts: 18K gold inlay
- Switch Rating 40 mA
- Switch Type SPST
- Weight 10 g
Series MDA Miniature Adjustable Pressure Switch is used to sense differential pressure. The switch features field adjustable set point and gold inlay contacts. The lightweight and compact size make the MDA ideal for any application with space constraints. Applications include industrial, HVAC, pump and motor control, medical, automotive, pools and spas.
50 PIECE MINIMUM ORDER.
Product Applications
- Industrial
- Medical
- HVAC
- Pump and motor control
- Automotive
- Pools and spas
