TUCH2

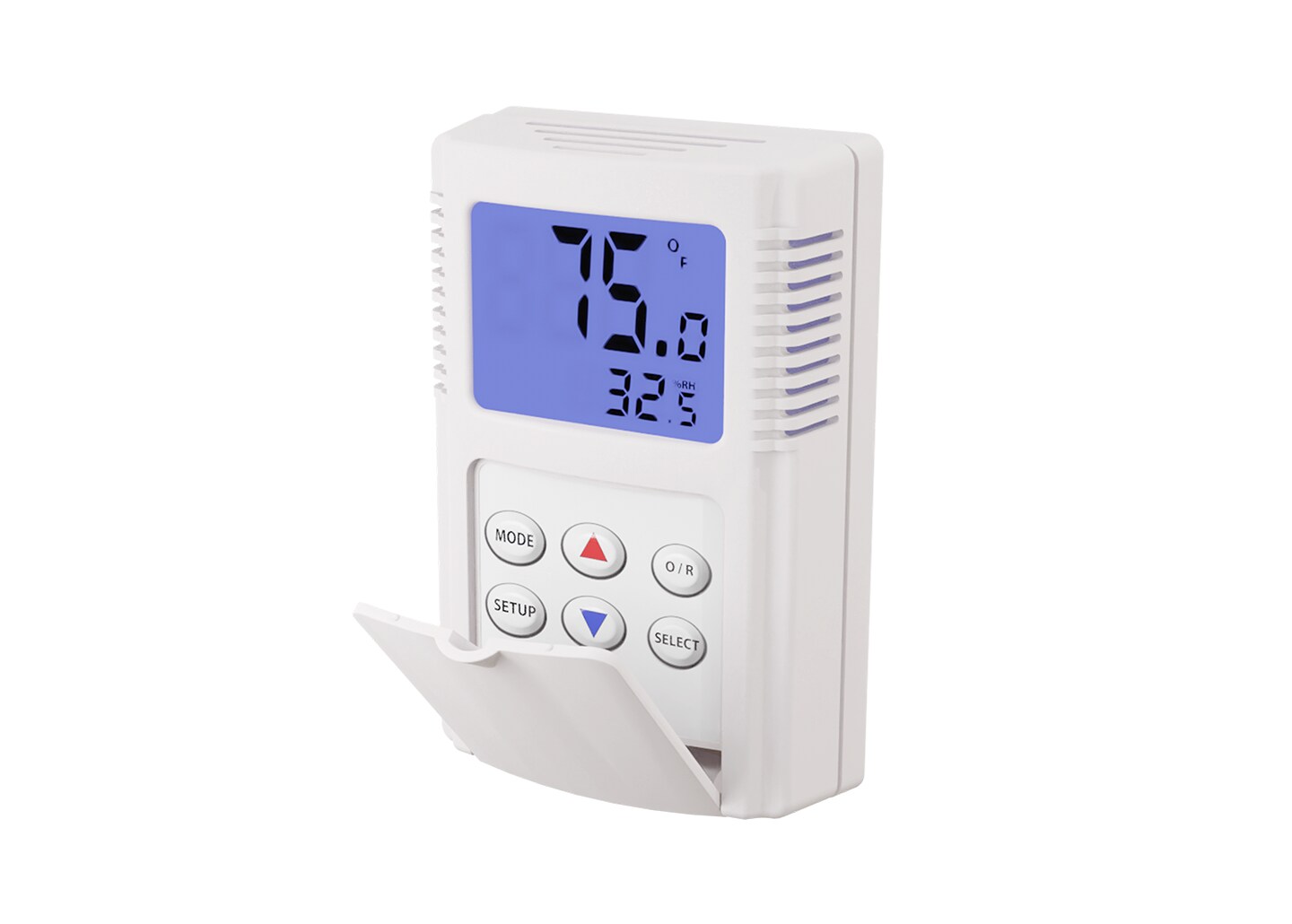

Microprocessor Based Sensor
- Humidification
- Dehumidification
- Monitoring Indoor Space Humidity
- Clean Rooms
- Hospitals
- Process Control
- Laboratories
- Museums
- Schools
- Office Buildings
- Data Centers
- ESD (Anti-Static) Control
Product Overview
- Applications Air and HVAC, Art and Museums, Building and Maintenance, Electronic Equipment, Environmental Monitoring, Medical, Process Automation and Control
- Electrical Connection Screw Terminal
- Enclosure Color White
- Filter Hydrophobic Filter
- Current, Max 8 mA
- Measurement Type Humidity, Temperature
- Mounting Orientation Duct Mount
- Operating Humidity 5 to 90% RH, non-condensing
- Operating Temperature, Max 40 °C
- Operating Temperature, Min 4.5 °C
- Output Detail 0-5 VDC: 12 - 40 VDC / 18 - 28 VAC
- Probe Diameter 0.75 in
- Relative Humidity 10 to 95%
- Repeatability ± 0.05°C
- Response Time 20 Seconds Typical
- Series ID TUCH2
- Storage Temperature, Max 70 °C
- Storage Temperature, Min -20 °C
- Supply Power Type DC
- Supply Voltage 24 Vdc
- Tightening Torque 4.4 lb-in (0.5 Nm)
- Wire Gauge 28 to 14 AWG
