Series-HS-SYNC

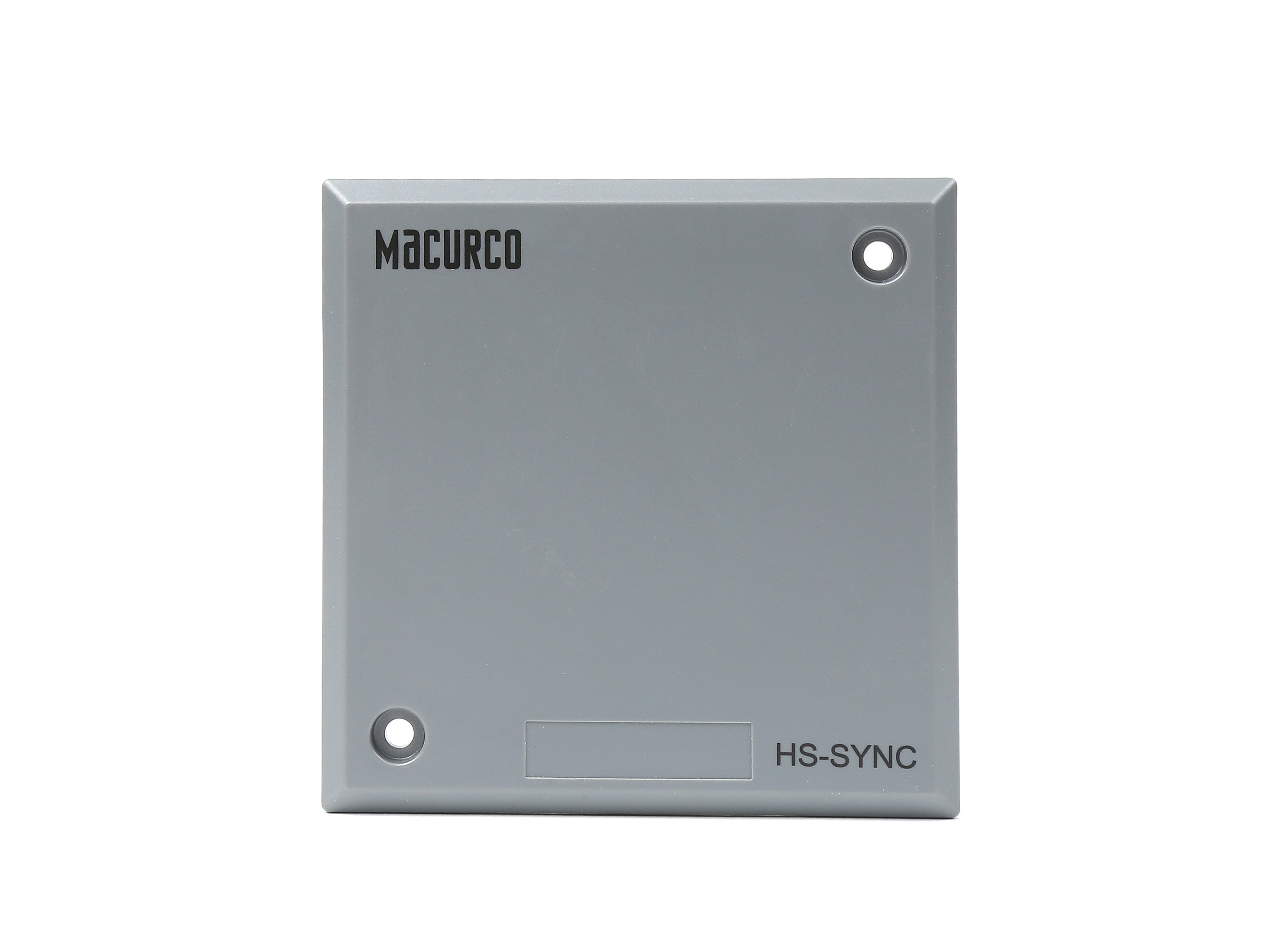

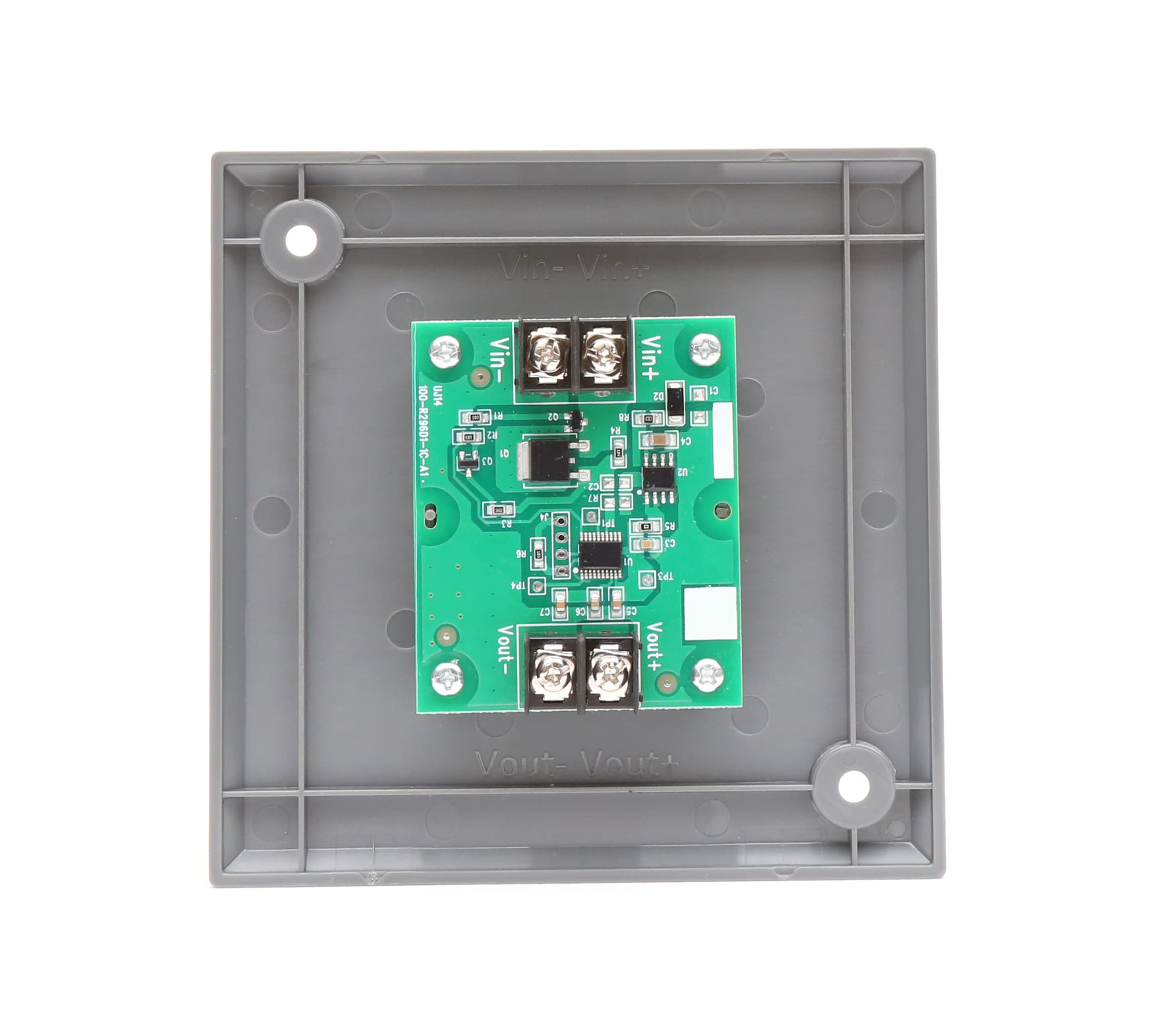

Macurco Horn/Strobes Synchronization Module
- 16 to 33 VDC
- Strobe Candela: Adjustable at 15, 30, 75 or 110cd* (tested with clear lens cover)
- Audible Tone: Adjustable to Continuous (high/low) or Temporal Four (high/low)
- Strobe Flash Rate: One flash per second (20ms pulse duration)
- Multiple color options available: Amber, Blue, Clear & Red
- Made in America
Series-HS-SYNC
From
$
178.00
Product Overview
- Accessory Mounting Standard 4x4 electrical box
- Additional Features Strobe Candela: Adjustable at 15, 30, 75 or 110cd* (tested with clear lens cover).Audible Tone: Adjustable to Continuous (high/low) or Temporal Four (high/low).Strobe Flash Rate: One flash per second (20ms pulse duration)
- Applications Building and Maintenance, Control Panel, HVAC, Laboratories
- Compatibility Compatible with Macurco control panels, other 24VDC devices, Macurco 6 Series detectors, Macurco 12 Series detectors, DVP-120 control panels, DVP-120M control panels, MHG Wall Mount Horn (maximum 60 devices), MSG-X Wall Mount Strobe (maximum 30 devices), and HS-X Wall Mount Horn/Strobe (maximum 20 devices).
- Electrical Rating Note • Rated Input Voltage=Regulated 24 VDC/FWR (16-33VDC) • Maximum Output Current=3.0 A; Supervisory/Alarm Current Consumption=5 mA (maximum) • Alarm Current Consumption (SIL+/-)=150 mA (maximum)
- Finishing Gray
- Height 4.5 in
- Housing Material Note Fire Retardant Material
- Input Note Regulated 24VDC/FWR (16-33VDC) input voltage range, supports Temporal 3 & 4 sound synchronization, compatible with 12-2 to 18-2 AWG wiring.
- Current, Max Note 3 A maximum current output
- Mounting Flush or surface mounted (standard 4x4 electrical box)
- Mounting Note Can be flush or surface mounted on a double gang box.
- Operating Environment 0°F to 120°F (-18°C to 49°C); 10 to 93% RH
- Operating Humidity 10 to 93 % RH
- Operating Temperature, Max 120 °F
- Operating Temperature, Min 32 °F
- Output Detail Regulated 24 Vdc/FWR, 16 to 33 Vdc operating range
- Overall Depth 1 in
- Series ID Series-HS-SYNC
- Supply Power Type Electric
- Supply Voltage 24 Vdc
- Supported Devices Macurco Control Panels, Macurco 6 & 12 Series detectors, Macurco Notification Series (including MHG wall mount horn, MSG-X wall mount strobe, and HS-X wall mount horn/strobe), and other 24VDC devices
- Width 4.5 in
The Macurco Horn and Strobe use low current to provide a high decibel output and can be easily seen and heard from afar. The Horn and Strobe works well with Macurco products including the DVP-120, DVP-120M control panels, and the Macurco 6 & 12 Series detectors. This notification device can be flush or surface mounted on a double gang box.
