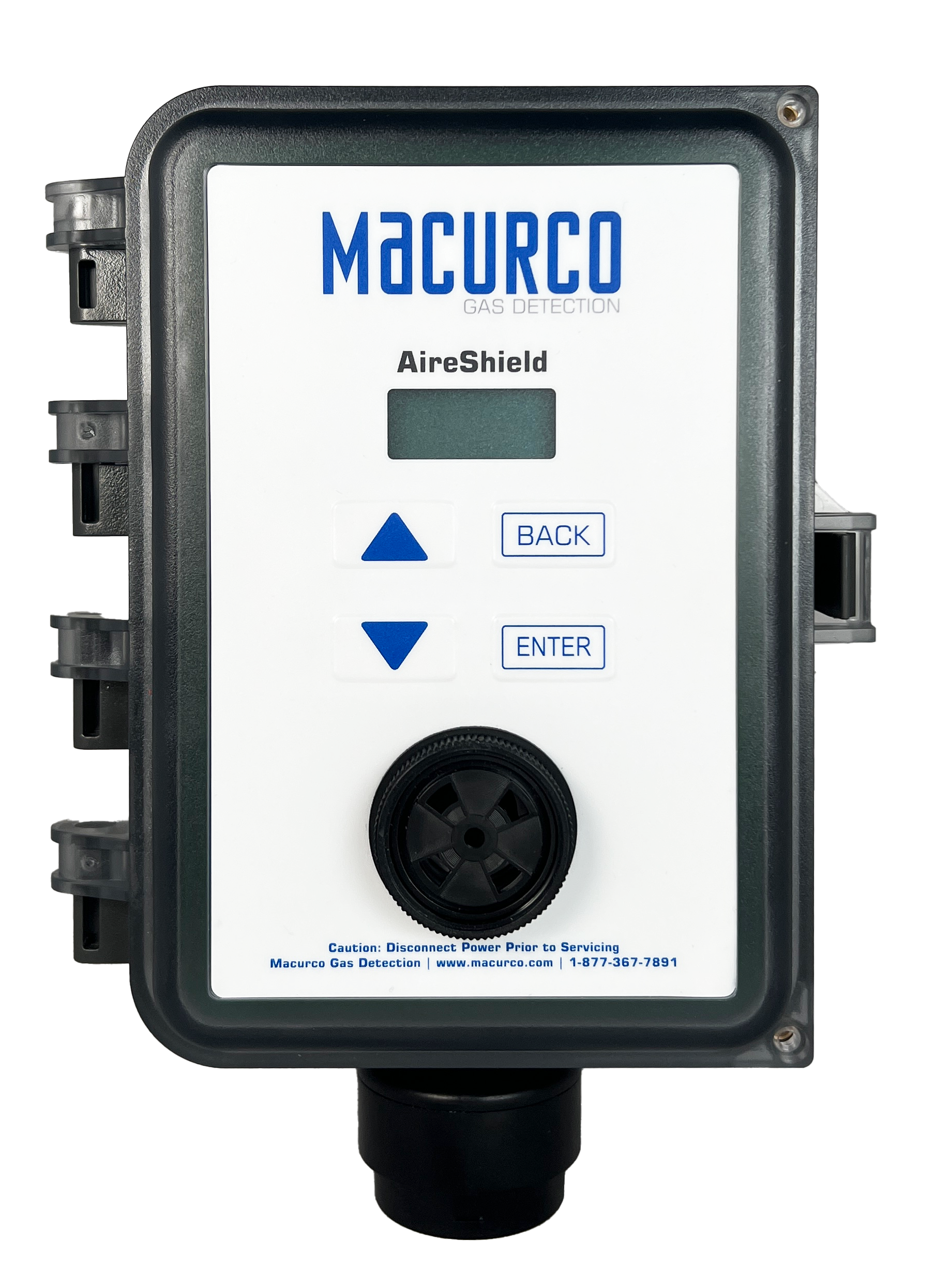

Macurco AireShield Refrigerant Detector – High-Accuracy Sensor, Low Maintenance & Smart Diagnostics
Models In Stock
- NEMA 4X/IP65 enclosure with durable design for harsh industrial environments
- Field-replaceable smart sensor with intuitive calibration and real-time diagnostics
- Multiple outputs with relays to control fans, valves, alarms, and external devices
- Visual LED alerts, event logging, and customizable settings via easy 4-button interface
AireShield
From
$
1,870.00
Models In Stock
Product Overview
- Buzzer >90 dBA at 10ft
- Control Output SPDT Relay, SPST Relay
- Display Note 2x8 Digit LED selectable to On (default), In-Use, OFF
- Display Type 2 x 8 Digit LED
- Enclosure Ratings IP65, NEMA Type 4X
- Enclosure Temperature, Max 140 °F
- Enclosure Temperature, Min -20 °F
- Finishing Dark Gray
- Height 8.25 in
- Indicator Type RGB LED
- Mounting wall mount or 4x4 electric box mounted
- Operating Humidity 0 to 95% RH, non-condensing
- Operating Temperature Note Remote Transmitter Enclosure: -40 to 140 °F
- Output Detail Output 1: 5 A SPDT Relay @ 240 Vac, pilot duty, Latching or non-latching (default) selectable; Output 2: 0.5 A SPST Relay @ 120 V, 60 VA, selectable N.O. (default) or N.C.; Output 1 & 2 Delay Settings: 0-15 minutes, 0 (default), 1 minute increments
- Power Consumption max 4.08 W
- Sensor Type NDIR Smart
- Series ID AireShield
- Supply Power Type AC/DC
- Supply Voltage 12 to 24 Vac, 12 to 32 Vdc
- Weight 1 lb
- Width 5.75 in
The Macurco AireShield delivers advanced refrigerant detection with a temperature-compensated, field-replaceable smart sensor for high accuracy and fewer false alarms. Supports integral sensing or up to two remote sensors for flexible coverage. Features real-time diagnostics, event logging, intuitive calibration, and versatile outputs for reliable, low-maintenance performance.
