Series-MHAS
Low-Voltage Indoor Audio/Visual Indicator - Horn and Strobe
- 16 to 33 VDC
- Strobe Candela: Adjustable at 15, 30, 75 or 110cd* (tested with clear lens cover)
- Audible Tone: Adjustable to Continuous (high/low) or Temporal Four (high/low)
- Strobe Flash Rate: One flash per second (20ms pulse duration)

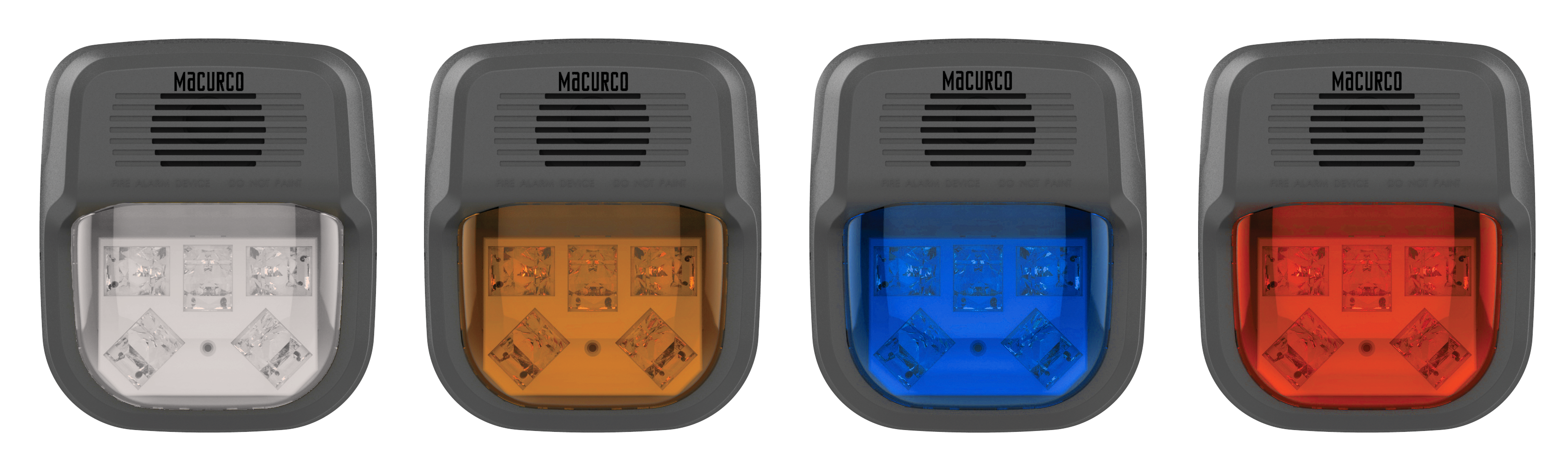

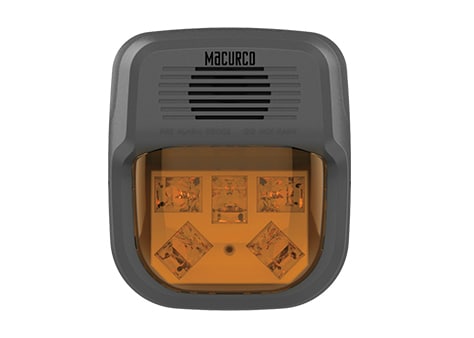

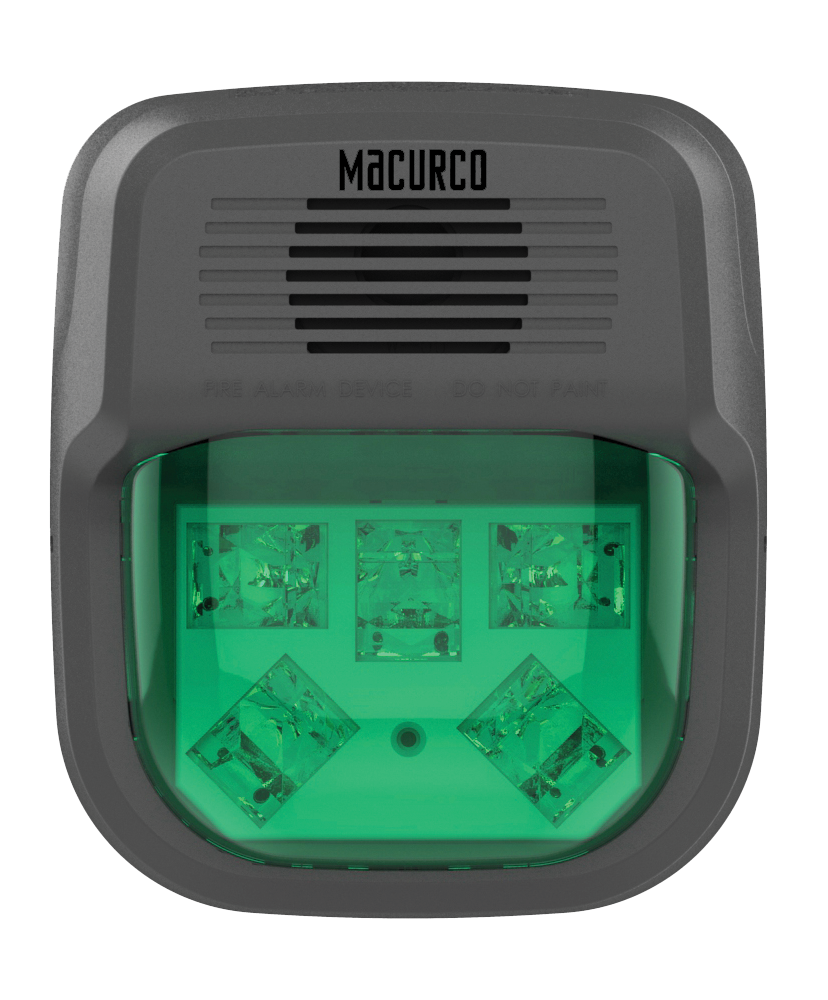

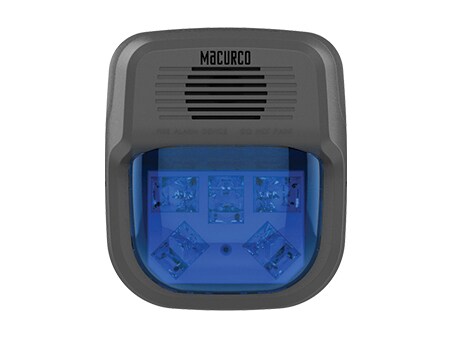

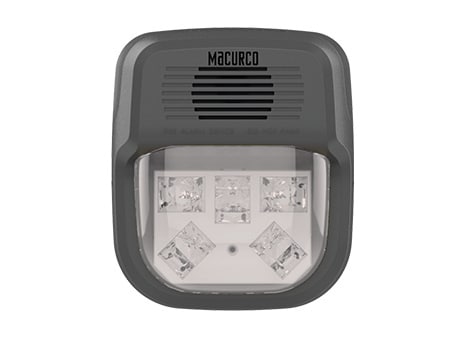

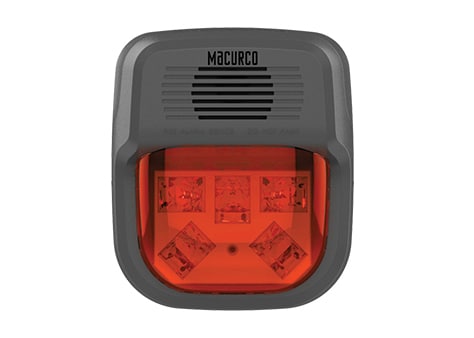

- Multiple color options available: Amber, Blue, Clear, Green & Red
- Made in America
Series-MHAS
From
$
258.00
Product Overview
- Accessory Mounting 4" x 4" Electrical Box Mount
- Accessory Type Visible and audible notification device
- Additional Features Strobe Candela: Adjustable at 15, 30, 75 or 110cd* (tested with clear lens cover),Audible Tone: Adjustable to Continuous (high/low) or Temporal Four (high/low),Strobe Flash Rate: One flash per second (20ms pulse duration),Multiple color options available: Amber, Blue, Clear, Green & Red
- Alarm Indication Visual Strobe, Audible Horn
- Alarm Note Adjustable strobe candela (15, 30, 75, or 110 cd) and audible tone settings (continuous or temporal 4, both in high/low volume). Strobe flash rate of one flash per second with 20ms pulse duration.
- Audible Alarm 82.2 dBA @ 10 ft
- Height 5.5 in
- Operating Humidity 10 to 93 % RH
- Operating Temperature, Max 120 °F
- Operating Temperature, Min 32 °F
- Overall Depth 2 in
- Series ID Series-MHAS
- Supply Power Type Electric
- Supply Voltage 16 to 33 Vdc
- Width 4.75 in
The Macurco Horn and Strobe series is designed for spaces where distinctive visual or audible signal is required. These devices use low current to provide a high decibel output, and can be easily seen and heard from afar. The Horn and Strobe works well with Macurco products including the DVP Conntrol Panels and the Macurco 6 & 12 Series detectors. This notification device can be flush or surface mounted on a standard 4” x 4” electrical box.
Show Ratings & Reviews
UL Listed
