Series-MHG

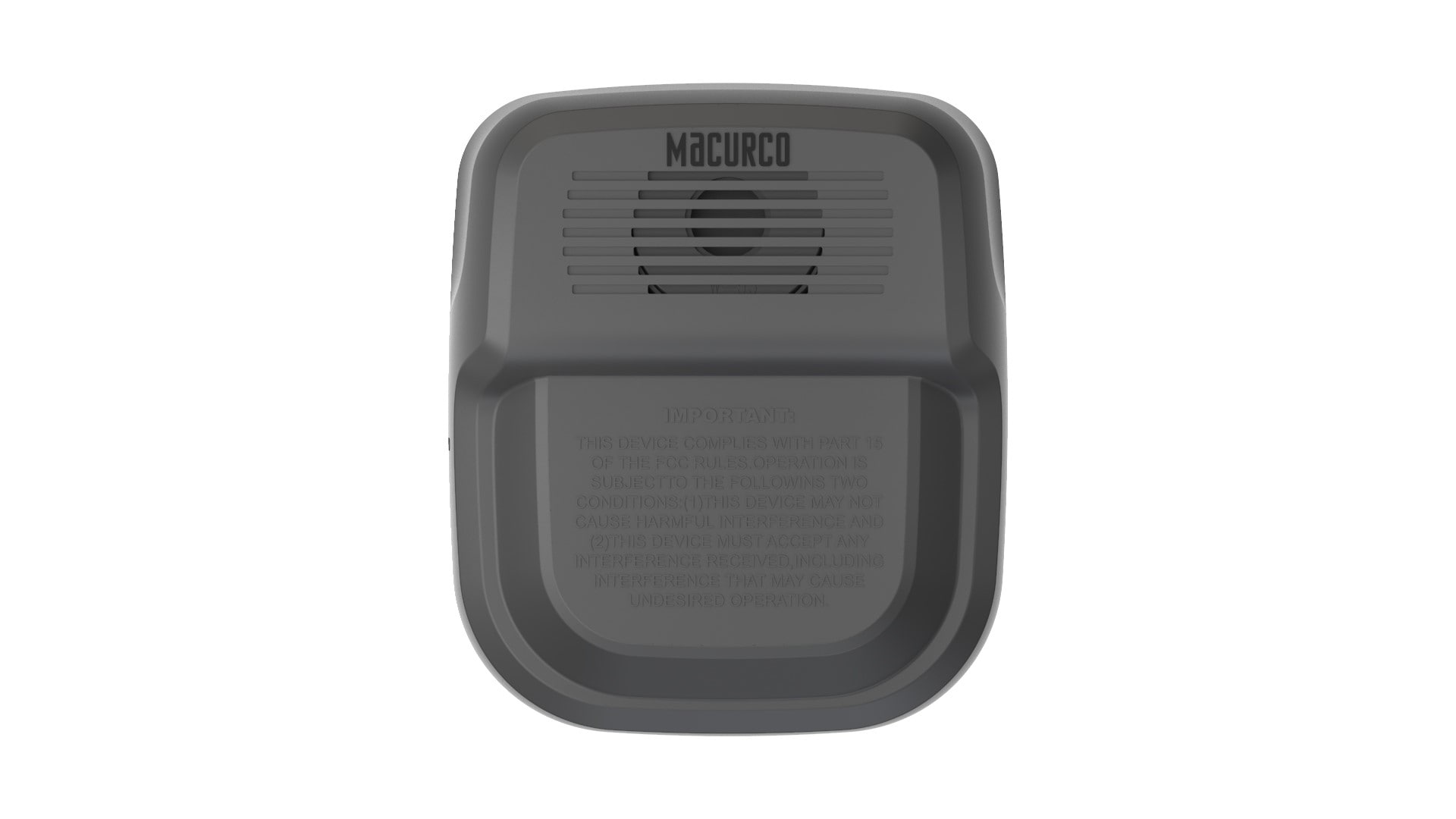

Low-Voltage Indoor Audio Indicator - Horn Only
- 23 to 33 VDC
- Audible Tone: Adjustable to Continuous (high/low) or Temporal Four (high/low)
- Made in America
Product Overview
- Accessory Mounting 4" x 4" Electrical Box
- Additional Features Audible Tone: Adjustable to Continuous (high/low) or Temporal Four (high/low)
- Alarm Note Field-selectable audible tone settings include continuous (high/low) or temporal four (high/low) patterns, providing an audible output of greater than 75 dBa at 10 ft.
- Applications Building and Maintenance, Commercial and Industrial, HVAC, Laboratories
- Audible Alarm > 75 dBA @ 10 ft
- Compatibility Compatible With: Macurco control panels, Macurco 6 Series detectors, Macurco 12 Series detectors, and Macurco Notification Series; Mounts to standard 4 in. x 4 in. electrical boxes.
- Electrical Rating Note • Supervisory Current=5 mA maximum; Alarm Current Consumption=5 mA maximum • Input Voltage=16 to 33 VDC/FWR
- Finishing Gray
- Height 5.5 in
- Housing Material Fire Retardant Material
- Mounting Standard 4” x 4” back box
- Mounting Note Designed for flush or surface mounting on a standard 4 in. x 4 in. electrical box; compatible with 12-2 to 18-2 AWG wiring.
- Operating Humidity 10 to 93 % RH
- Operating Temperature, Max 120 °F
- Operating Temperature, Min 32 °F
- Operating Temperature Note 32 to 120°F (0 to 49°C); 10 to 93% RH
- Overall Depth 2 in
- Series ID Series-MHG
- Sound Level Note Field-selectable settings for continuous (high/low) or temporal four (high/low) patterns, measured at 10 ft.
- Supply Power Type Electric
- Width 4.75 in
The Macurco Horn and Strobe series is designed for spaces where distinctive visual or audible signal is required. These devices use low current to provide a high decibel output, and can be easily seen and heard from afar. The Horn and Strobe works well with Macurco products including the DVP Conntrol Panels and the Macurco 6 & 12 Series detectors. This notification device can be flush or surface mounted on a standard 4” x 4” electrical box.
Show Ratings & Reviews
UL Listed
