Series-TFP-LI

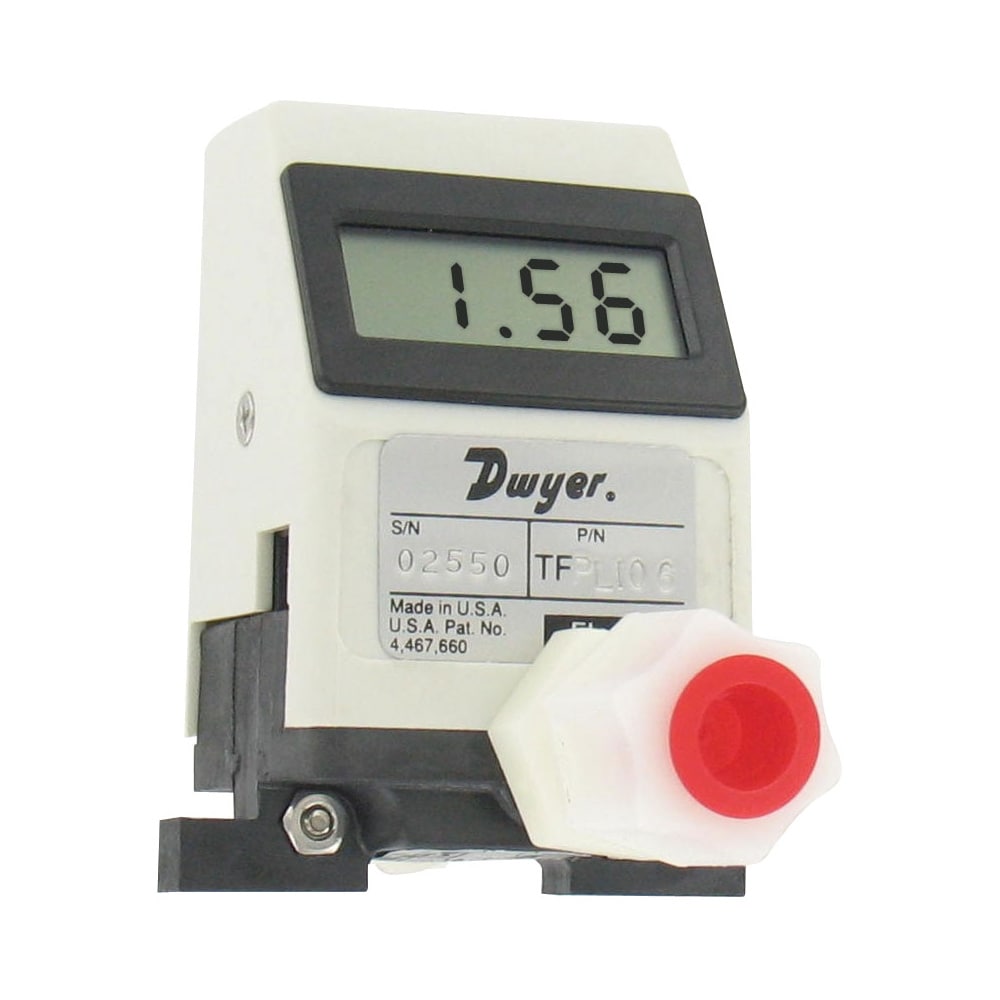

Liquid Turbine Flow Meters – 0 to 5 Vdc Output, LCD, Turbo Wheel Tech
- Precision turbine flow meter with 0–5 VDC output and digital LCD readout for continuous monitoring
- High accuracy ±1 % FS and excellent repeatability make it ideal for instrumentation and lab use
- Compact ¼″-⅜″ OD connection options, suited for low-flow clean liquids (0.5 to 5 LPM typical)
- Rugged 316 SS body with sapphire/acetal turbine wheel - minimal maintenance, no zero-drift
Series-TFP-LI
From
$
994.50
Product Overview
- Accuracy ± 1 %
- Display Note LCD, 0.39˝ (10 mm) digits (only in LPM)
- Display Type LCD
- Electrical Connection Four-Pin
- Enclosure Ratings IP10, NEMA Type 1
- Linearity ± 1%
- Materials, Wetted Acetal, Epoxy, Fluoroelastomer, Glass, PPS, Sapphire
- Media Compatibility Clean process / cooling water, Compatible Liquids, Oils / lubricants, Organic solvents
- Operating Temperature, Max 131 °F
- Operating Temperature, Min 41 °F
- Output Detail 0 to 5 VDC: Minimum 2.5 kΩ Load
- Output Signal Voltage
- Port 1 Type Compression Fitting
- Port 2 Type Compression Fitting
- Power Consumption 35 mA @ 12 Vdc
- Pressure Limits Up to 100 psi
- Measurement Pressure Type Gauge
- Repeatability ± 0.2%
- Sensitivity ± 0.2% FS/°C
- Storage Temperature, Max 158 °F
- Storage Temperature, Min 32 °F
- Supply Power Type DC
- Supply Voltage 11.5 to 15 Vdc
- Weight 0.27 lb
Series TFP-LI Liquid Turbine Flow Meters are suitable for a wide variety of industrial, commercial, and laboratory flow applications. These meters utilize a turbine wheel and electro-optical detection to convert flow rates into a linear 0 to 5 VDC output signal for recording and data logging. A 3-1/2 digit LCD informs the user of the actual flow rate. A power adapter or mating cable assembly is required for operation.
