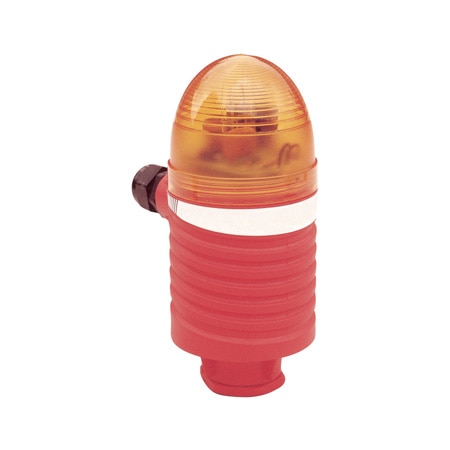

LVCN100

Level Alert Single Sensor Controller (ac)

0.0

(0)

Calls Immediate Attention to Alarm Conditions
High Intensity Strobe Light Reduces Operator Error
Mounts Directly on Sensor or OMEGA ® Track System
Convenient Reminder to Refill Tank

See Product Overview

LVCN100

From ^$ 492.07

Shop Models

2 Variations available

See all series options below

Data Sheet

Product Overview

Status Control false
Conduit Connection 1/2 in NPT
Control Output SPDT Relay
Diameter 2.8 in
Enclosure Material Polypropylene
Enclosure Ratings IP65, NEMA Type 4X
Height 4.7 in
Light Level >50,000 CP
Materials, Wetted Polypropylene
Mounting Vertical
Number of Sensors 1
Output Detail Isolated and sealed single pole double throw (SPDT) relay, Form C
Power Consumption 5 W
Process Connection Size 3/4 in
Process Connection Type NPT Female
Process Temperature, Max 70 °C
Relay Voltage, Max 120 Vdc or 240 Vac
Sensor Excitation Nominal 13.5 Vdc, 1 Watt maximum
Source of Light High intensity lamp
Switch Operation Selectable, NO or NC states
Switching Current 10 A
Time Delay 0.15 to 60 sec

The LVCB-100 series has been discontinued. Please contact our Flow Engineering department for a viable replacement.

OMEGAâ€™s level alert calls attention to alarm conditions. For operator alert to low inventory levels or high alarm conditions, the level alert offers an excellent solution to these problems. An amber lens distributes the high intensity strobe light in a pattern which calls immediate attention to alarm conditions. The visual alert combined with a controller makes it both cost effective and easy to install.
