Series-1211-1213-1214Configuration

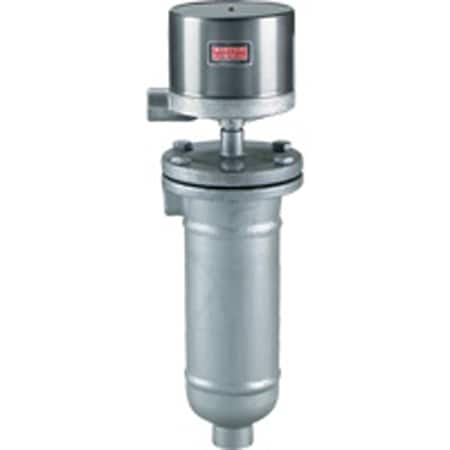

Industrial Control, 0.40 SG, 450 psig, 1" NPT, for Oil & Chemicals

Series-1211-1213-1214

Build your Part Number

Industrial Control, 0.40 SG, 450 psig, 1" NPT, for Oil & Chemicals Series-1211-1213-1214 Series-1211-1213-1214
loading all models
Product Overview
  • Series ID Series-1211-1213-1214

Supported Applications

The Dwyer Series 1211, 1213, and 1214 are flanged chamber external mount liquid level switches designed for industrial control. These units operate via a magnetic plunger and float mechanism to monitor levels in oil refineries, chemical plants, power generating stations, pumping stations, heat transfer systems, sanitary/waste water facilities, drip legs, hydraulic systems, and boilers.

Operating Conditions & Performance

The series is rated for a minimum specific gravity of 0.40. Pressure ratings vary by model: Series 1211 supports up to 450 psig (31 bar) at 100°F (38°C), derating to 300 psi (21 bar) at 500°F (260°C). Process temperatures range from ambient conditions up to 500°F (260°C); for high-capacity DC snap switches, heat fins are recommended if the process temperature exceeds 350°F (177°C), with a maximum limit of 450°F (232°C).

Switch operation is defined by fixed deadbands. For single-stage and two-stage configurations on Series 1211, 1213, and 1214 at 0.4 specific gravity:

  • Single Stage Operation: Level change A* = 6-1/2" (165 mm), B = 5/8" (16 mm).
  • Two Stage Operation: Level changes include C = 7-3/4" (197 mm), D = 1-1/2" (38 mm), and E = 1-1/4" (32 mm). Note that A* is not adjustable.

The series offers a repeatability of ±1/4" (6.4 mm).

Configuration Options

Selectable configurations include enclosure types, circuit arrangements, chamber construction materials, and process connections to meet specific installation requirements.

  • Enclosures: Available in General Purpose (G) NEMA-1; Weather Proof (WT) NEMA-3R, 4, 4X; Explosion-proof (E) NEMA-7, 9 for Class I Groups B, C, D and Class II Groups E, F, G; and Explosion-proof Vapor-proof (EV).
  • Switch Types: Options include mercury contacts or snap-action switches. Circuit configurations support SPST, SPDT, DP-ST, and DP-DT arrangements with single-stage or two-stage operation.
  • Process Connections: Standard 1" NPT pipe connections (side/bottom) are available on Series 1211. Flanged options include 150#, 300#, and 600# flanges for side/bottom or side/side mounting depending on the model.
  • Materials: Chambers are constructed of carbon steel with trim in 303SS, 304SS, and 430SS. Optional materials include a 316SS chamber and trim (C216) or a 1" socket weld hub instead of the standard NPT connection.
  • Approvals: UL and CSA certified for specified hazardous locations where applicable to the enclosure type.

Key Product Differences

The series distinguishes models by flange class, pressure rating at elevated temperatures, and connection orientation. Series 1211 utilizes a standard 1" NPT hub with side/bottom connections rated to 450 psig (31 bar) at 100°F. Series 1213 offers 1" flanged process connections in 150#, 300#, and 600# classes, maintaining the same pressure ratings as Series 1211 but with side/bottom mounting options.

Series 1214 provides similar flange class options (150#, 300#, 600#) configured for side/side process connections. All three series share a minimum specific gravity of 0.40 and the same temperature derating curve from 450 psig at 100°F to 300 psi at 500°F.

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 4ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getContent, 54ms
  • QUESTIONS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
EXAMPLE 1211 WT 7810 C1 40   1211-WT-7810-C1-40 Liquid Level Control, weatherproof enclosure, SPDT snap switch, fixed deadband, automatic reset, operating pressure 450 psig (31 bar) at 100°F (38°C), 300 psig (21 bar) at 500°F (260°C), side/bottom process connections, 1" NPT, minimum specific gravity 0.40.
CONNECTION 1211           One Vertical and One Horizontal 1" NPT
1213           One Vertical and One Horizontal Flanged Connection
1214           Two Vertical Flanged Connections
ENCLOSURE    G         General Purpose, NEMA 1
  WT         Weatherproof, NEMA 3R, 4, 4X
  E         Explosion-proof, NEMA 7, 9, Class I Groups B, C, D, Class II Groups E, F, G. CSA approved Groups C, D, E, F, G only.
  EV         Explosion-proof/Vapor-proof, NEMA 7, 9, Class I Groups B, C, D, Class II Groups E, F, G. CSA approved Groups C, D, E, F, G only.
CIRCUITS
(for electrical circuits
see charts A & B below)
    48XX       Single Stage Mercury Switch, see chart A
    48XX-XX       Two Stage, Mercury Switch, see chart A
    78XX       Single Stage, Snap Switch, see chart B
    78XX-XX       Two Stage, Snap Switch, see chart B
    78XXHM       Hermetically Sealed Snap Switch, see chart B
    98XX       Single Stage, High Capacity DC Snap Switch, use heat fins (HF) if process temperature exceeds 350°F (177°C), do not exceed 450°F (232°C), see chart B
    98XX-XX       Two Stage, High Capacity DC Snap Switch, use heat fins (HF) if process temperature exceeds 350°F (177°C), do not exceed 450°F (232°C), see chart B
CHAMBER MATERIAL       C1     Carbon Steel Body
      C216     316SS Body
      HFC1     Heat Fins & Carbon Steel Body
      HFC216     Heat Fins & 316SS Body (1211 only)
MINIMUM
SPECIFIC
GRAVITY
        40   0.40 Specific Gravity (1211 only)
        140   0.40 Specific Gravity & 150# Flange (1213, 1214 only)
        340   0.40 Specific Gravity & 300# Flange (1213, 1214 only)
        640   0.40 Specific Gravity & 600# Flange (1213, 1214 only)
OPTIONS           H2 H2 Socket Weld Hub (1211, steel housing only)
          STW SS Tag Wired
          01 Breather Only (E-Housing only)
          02 Drain Only (E-Housing only)
          12 Breather & Drain (E-Housing only)
          23720 Fungus Proofing

CHARTS A & B - ELECTRICAL CIRCUITS AND RATINGS
SWITCH TYPE SWITCH ACTION ELECTRICAL RATINGS IN AMPS ORDERING CODE
AC DC SINGLE STAGE TWO STAGE
120V 240V 440V 30V 125V 250V LOWER UPPER
CHART A
Mercury Contacts
SP-ST open on level FALL 10 5 3†   10 5 -4820 -4820 -21
SP-ST open on level RISE 10 5 3†   10 5 -4821 -4821 -20
SP-DT one switch 4 2 1†   4 2 -4810 -4810 -10
SP-DT two switches E.I.* 10 5 3†   10 5 -4815 -4815 -15
DP-ST two switches E.I.* open on level FALL 10 5 3†   10 5 -4814 -4814 -13
DP-ST two switches E.I.* open on level RISE 10 5 3†   10 5 -4813 -4813 -14
DP-DT two SP-DT switches 4 2 1†   4 2 -4806 -4806 -06
CHART B
snap action contacts
SP-DT one switch 12 5 3†   0.5** 0.25** -7810 -7810 -10
DP-DT two SP-DT switches 12 5 3†   0.5** 0.25** -7806 -7806 -06
SP-DT one hermetically sealed switch 5 5   5**     -7810HM -7810HM -10HM
DP-DT two hermetically sealed SP-DT switches 5 5   5**     -7806HM -7806HM -06HM
DP-DT two SP-DT switches 10 3     10‡ 3‡ -9806 -9806 -06
SP-DT one switch 10 3     10‡ 3‡ -9810 -9810 -10
†Available on special order, change 1st digit in ordering code from 4 to 5 or 7 to 8, i.e., -4820 becomes -5820, -7810 becomes -8810, etc.
‡10 amp inductive (polarized) at 125 VDC.
*Electrically Independent.
**Resistive.
