Series-IS-PX-TX

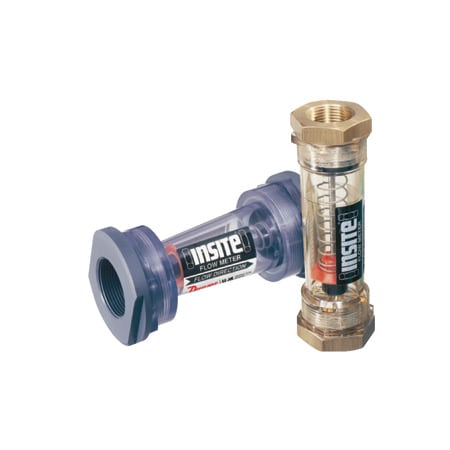

In-Line Flowmeter for Air/Liquid in PVC, Aluminum, Brass, Stainless Steel
- Transparent flow tube with printed scale gives real-time visual indication of air or liquid flow
- Available in PVC, polysulfone, brass, aluminum or 316 SS construction to suit varied media
- Low pressure drop: only ~4 psi (0.27 bar) at full-scale flow conserves energy in system
- Mounts in any orientation (horizontal, vertical or inclined) without compromising accuracy
Series-IS-PX-TX
From
$
0.00
Can't find the right model?
Use our custom configurator to fine tune your product
Product Overview
The Series IS/PX/TX In-Line Flowmeter provides a highly visible, variable-area solution built for both liquids and gases across a wide range of applications. With a transparent flow tube and printed scale, it enables direct visual monitoring of flow without the need for external sensors or indicators. Optional field-adjustable reed switches support high or low flow alarm functionality.
Constructed with a variety of materials - from PVC tubes to polysulfone with 316 SS fittings - and multiple fitting options (brass, aluminum, PVDF), this meter adapts to diverse fluid media including process water, compressed air, ultra-pure water, nitrogen and chemical streams. It supports flow sizes from 3 GPM up to 14 000 SLPM air, enabling broad use-case coverage.
Designed for practicality in installation and service, the flowmeter mounts via standard NPT threads (½″, ¾″, 1″, or 1½″) and can be oriented in any installation angle without affecting functionality. With a very low pressure drop (~4 psi at full flow) and optional alarm switch kits (single or dual piston switch configurations), it’s suited to OEM, water-treatment, HVAC, industrial and process environments.
For applications requiring visual flow verification, flexible mounting, material versatility, and optional alarm functionality, the Series IS/PX/TX In-Line Flowmeter offers a dependable and cost-effective solution.
Accessories
accessories
Show Ratings & Reviews
DWYER INSTRUMENTS, INC. CONFIGURATOR HELP FILE
INSITE INLINE FLOW METER LAST REVISED: 03-10-22
X-X-X-X-X-OPT IS INLINE FLOW METER ULTRA PURE WATER
1ST SYMBOL (1ST X) SERIES
IS POLYSULFONE WITH SST SPRING AND SHAFT
PX PVC WITH SST SPRING AND SHAFT
TX PVC WITH TITANIUM SPRING AND SHAFT
2ND SYMBOL (2ND X) FLOW SIZE
5GPM 5 GPM
10GPM 10 GPM
15GPM 15 GPM
20GPM 20 GPM
30GPM 30 GPM
40GPM 40 GPM
50GPM 50 GPM
20LPM 20 LPM
38LPM 38 LPM
55LPM 55 LPM
75LPM 75 LPM
110LPM 110 LPM
150LPM 150 LPM
200LPM 200 LPM
50SCFM 50 SCFM
90SCFM 90 SCFM
100SCFM 100 SCFM
135SCFM 135 SCFM
200SCFM 200 SCFM
300SCFM 300 SCFM
400SCFM 400 SCFM
500SCFM 500 SCFM
1400SLPM 1400 SLPM
2500SLPM 2500 SLPM
3600SLPM 3600 SLPM
5500SLPM 5500 SLPM
8000SLPM 8000 SLPM
11000SLPM 11000 SLPM
14000SLPM 14000 SLPM
3RD SYMBOL (3RD X) PORT SIZE
4 1/2" NPT (12.70 MM)
6 3/4" NPT (19.05 MM)
8 1" NPT (25.4 MM)
12 1-1/2" NPT (38.10 MM)
4TH SYMBOL (4TH X) FITTING MATERIAL
M4 PVDF
D ALUMINUM
F BRASS
I 316 STAINLESS STEEL
V PVC
5TH SYMBOL (5TH X) SEAL MATERIAL
F FLUOROELASTOMER (FKM)
OPTIONS (OPT)*
IS1 INSTALLED WITH ONE SWITCH
IS2 INSTALLED WITH TWO SWITCHES
IS1T INSTALLED WITH ONE SWITCH WITH
TEFLON COATED MAGNET
IS2T INSTALLED WITH TWO SWITCH WITH
TEFLON COATED MAGNET
ST STAINLESS STEEL TAG
EP ELECTRO POLISHED STAINLESS STEEL
SHAFT AND SPRING
*MUST BE IN THIS ORDER WITH NO DASHES IN BETWEEN THE OPTION CODES
