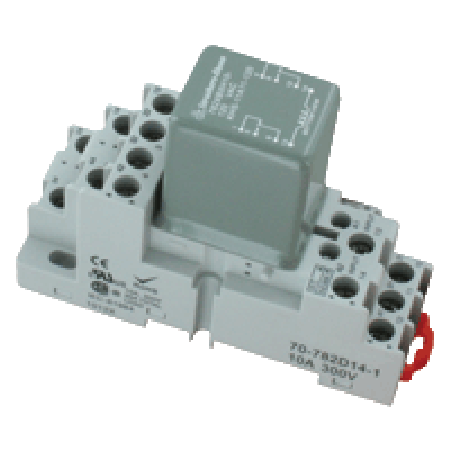

Ice Cube Relay for Hazardous Conditions, 4 Circuits, Wash-Down, DIN Socket
Click and hold to zoom

Series-782H

Ice Cube Relay for Hazardous Conditions, 4 Circuits, Wash-Down, DIN Socket

(0)
Models In Stock
Series-782H
From $ 164.75
Models In Stock
Shop Models
2 Variations available
See all series options below
Series-782HData Sheet

Data Sheet
Ice Cube Relay for Hazardous Conditions, 4 Circuits, Wash-Down, DIN Socket Series-782H Series-782H
Product Overview
  • Electrical Connection Screw Terminal
  • Electrical Output N/A
  • Enclosure Ratings Class 1 Div II
  • Life Cycle Electrical : 100,000 cycles; Mechanical : 10,000,000 cycles
  • Materials metal
  • Operating Temperature, Max 158 °F
  • Operating Temperature, Min -40 °F
  • Power Consumption 1.2 VA; 0.9 W
  • Storage Temperature, Max 185 °F
  • Storage Temperature, Min -40 °F
  • Supply Current 5 A'
  • Switch Rating 5 A @ 120/240 VAC, or 30 VDC
  • Switch Type 4PDT
  • Trigger Voltage 120 Vac, 24 Vdc
  • Weight 1.6 oz

Accessories

70-782D14-1
Socket for 782H Series Relay
$18.75
1 In Stock
